Metric Measurement Gun Type Three Point Internal Groove Micrometer Precision Tool for Internal Groove Dimension Inspection
-
Highlight
Three Point Internal Groove Micrometer
,Precision Tool Internal Groove Micrometer
,Metric Measurement Internal Groove Micrometer
-
WarrantyOne Year
-
MeasurementMetric
-
Product TypeInternal Groove Micrometer
-
Measuring Range16-20mm
-
Anvil TypeThree-Point Contact
-
Grip TypePistol Grip
-
Primary ApplicationInternal Groove, Bore, And O-Ring Groove Measurement
-
Frame MaterialHigh-Strength Stainless Steel
-
PackageAluminium Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-2306-20
-
Packaging DetailsAluminium Box 37*22*16cm/Piece 3.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Metric Measurement Gun Type Three Point Internal Groove Micrometer Precision Tool for Internal Groove Dimension Inspection

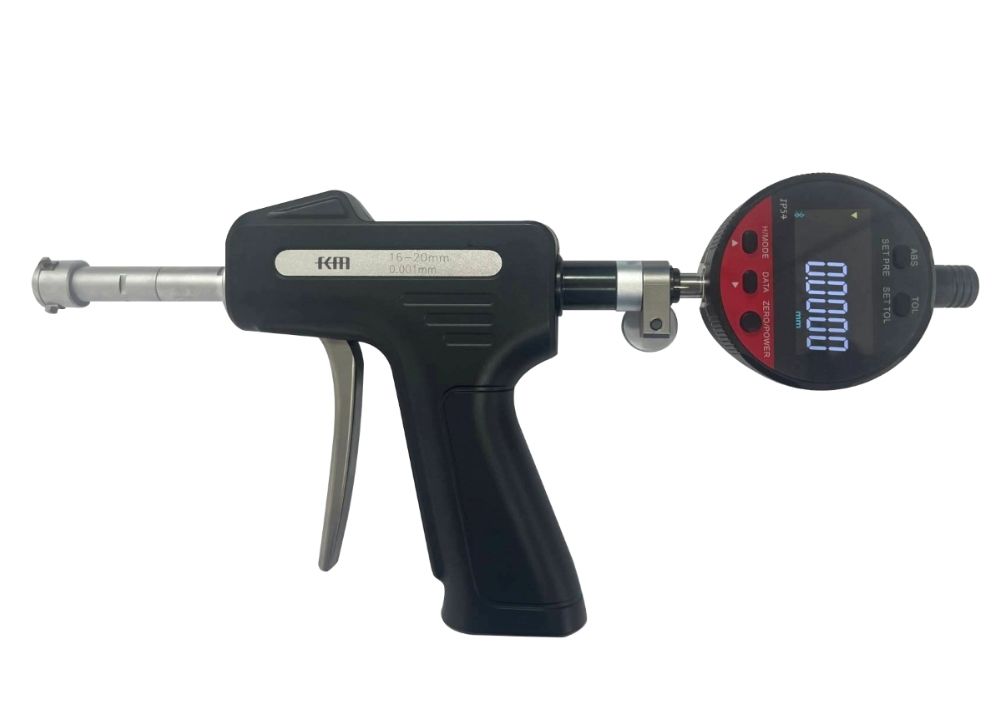

This gun-type three-point internal groove micrometer is specifically engineered for measuring internal grooves, overcoming the limitations of traditional tools to accurately and efficiently solve the measurement challenges of complex structures such as grooves and cutter slots.
The micrometer features three-point synchronous contact technology, with three measuring heads that adaptively fit the inner wall of the groove, ensuring measurement data closely aligns with the actual diameter. Its ergonomic gun-shaped design enables one-handed operation, significantly improving measurement efficiency. Complemented by an intelligent Bluetooth digital display system, it provides real-time visualization of high-precision data and supports wireless transmission to terminal devices.
This tool also excels at high-precision internal thread measurement, solving the longstanding industry challenge of accurately detecting thread pitch diameters.
- Self-centering 3-point design for accurate bore measuring

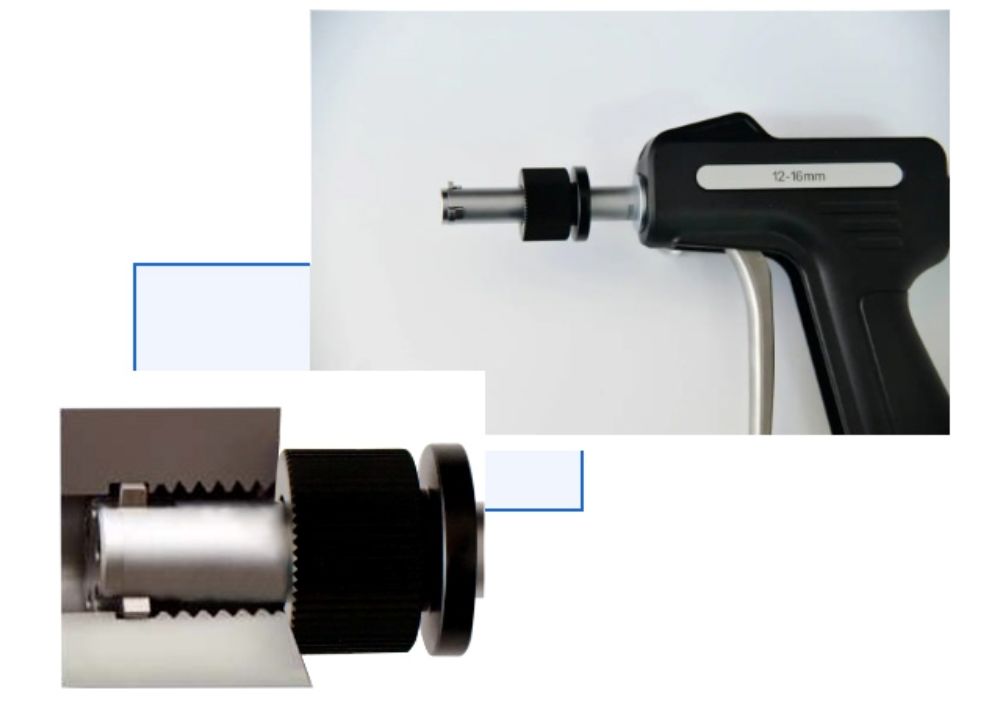

- Stepped measuring head for convenient groove diameter measurement
- Rapid mobile measurement method for repeated groove measurements
- Includes setting rings for measurements within 100mm
- Supplied in a fitted protective case
| Order No. | Measuring Range | Measuring Width | Measuring Depth | Accuracy | Setting |
|---|---|---|---|---|---|
| KM-2306-8 | 6-8mm | 1.5mm | 1.5mm | 0.006mm | Φ6mm |
| KM-2306-10 | 8-10mm | 1.5mm | 1.5mm | 0.006mm | Φ8mm |
| KM-2306-12 | 10-12mm | 1.5mm | 1.5mm | 0.006mm | Φ10mm |
| KM-2306-16 | 12-16mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-20 | 16-20mm | 2mm | 1.5mm | 0.005mm | Φ16mm |
| KM-2306-25 | 20-25mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-30 | 25-30mm | 2mm | 1.5mm | 0.005mm | Φ25mm |
| KM-2306-40 | 30-40mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-50 | 40-50mm | 2mm | 3mm | 0.006mm | Φ40mm |
| KM-2306-63 | 50-63mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-75 | 62-75mm | 2mm | 3mm | 0.007mm | Φ62mm |
| KM-2306-88 | 75-88mm | 2mm | 3mm | 0.007mm | Φ87mm |
| KM-2306-100 | 87-100mm | 2mm | 3mm | 0.007mm | Φ87mm |
| Order No. | Measuring Range | Setting Ring |
|---|---|---|
| KM-2306S-12 | 6-8mm, 8-10mm, 10-12mm | Φ6mm, Φ8mm, Φ10mm |
| KM-2306S-20 | 12-16mm, 16-20mm | Φ16mm |
| KM-2306S-50 | 20-25mm, 25-30mm, 30-40mm, 40-50mm | Φ25mm, Φ40mm |
| KM-2306S-100 | 50-63mm, 62-75mm, 75-88mm, 87-100mm | Φ62mm, Φ87mm |
