16 inch Measuring Cylinder Bore Gauge
,Precision Measuring Cylinder Bore Gauge
,10 inch Measuring Cylinder Bore Gauge
-
WarrantyOne Year
-
TypeDial Bore Gauge
-
MeasurementInch
-
Measurement ObjectInternal Diameter
-
Measuring Depth16″
-
Range10-16″
-
Graduation0.0001″
-
FunctionWheel Guide
-
FeatureWith Inserting Interchangeable Anvils
-
CustomizedAcceptable
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DBEW-160
-
Packaging DetailsABS Box 45*28*12.5cm/Piece 2.60kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

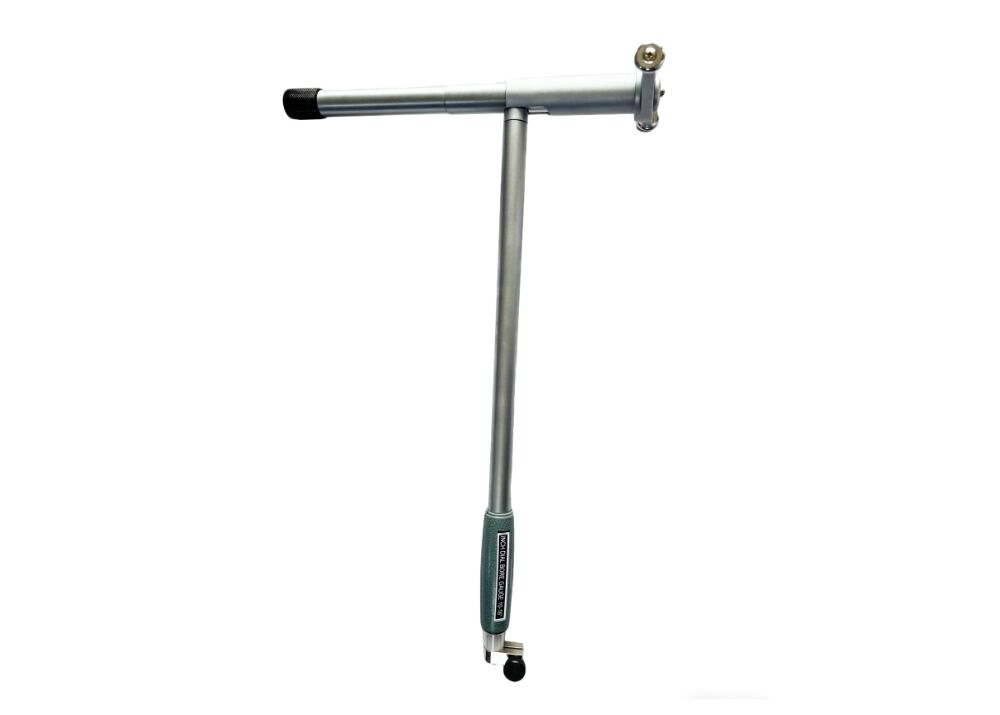

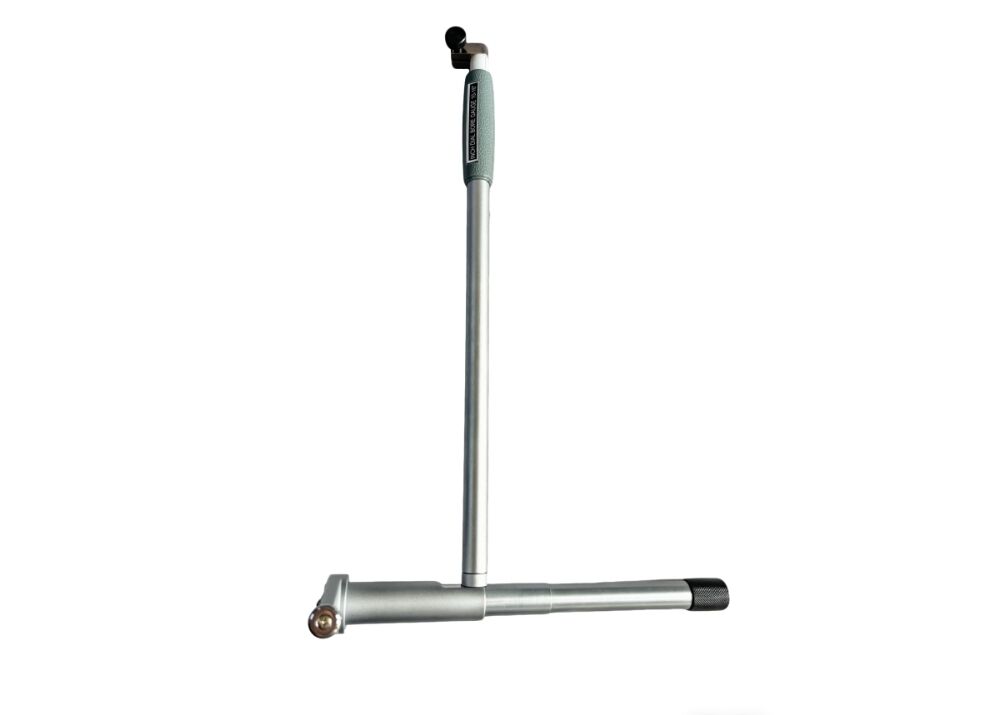

Inch 10-16″ Measuring Cylinder Bore Gauge Precision Measuring Tool
Inch 10-16″ Measuring Cylinder Bore Gauge Precision Measuring Tool
This precision bore gauge provides inch measurements from 1.4 inches up to 16 inches, with a graduation of 0.0001 inches for high-precision internal measurements. Customizable ranges and extended measuring depths are available to meet specific application requirements.
Product Overview
As a popular internal measuring tool, bore gauges accurately measure bores or holes of various lengths and shapes. They serve both measurement and inspection purposes, ensuring dimensional accuracy in manufacturing processes.
Standard Package Includes

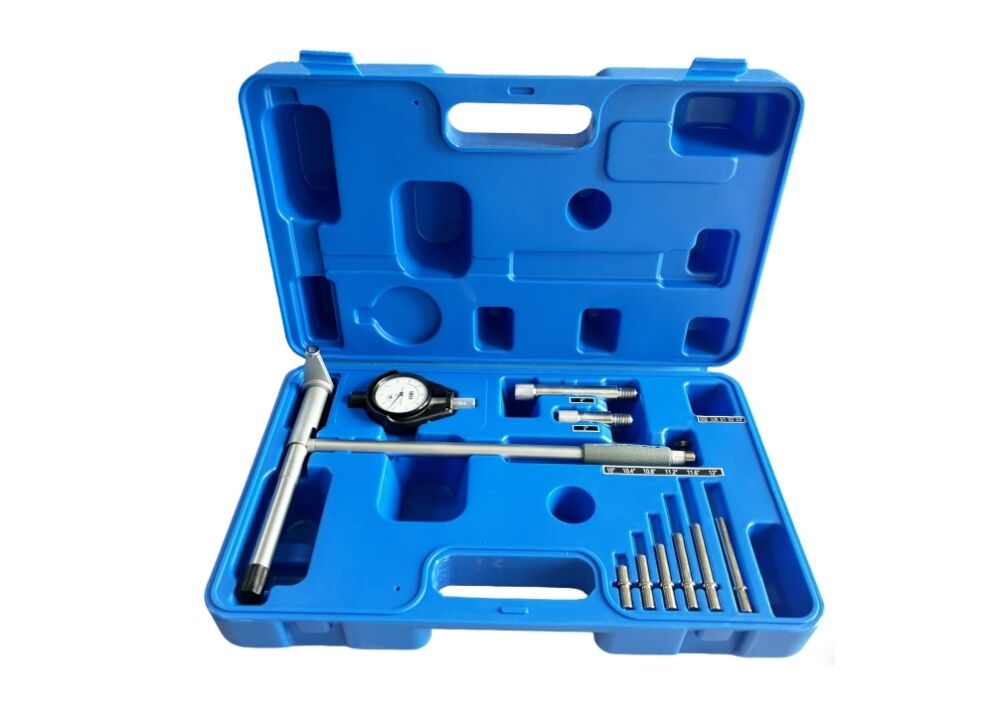

Each bore gauge set includes a dial indicator, measuring extended heads, inserting anvils, and adjusting washers, all organized in a fitted case.
Key Features
- Designed for internal measurement applications

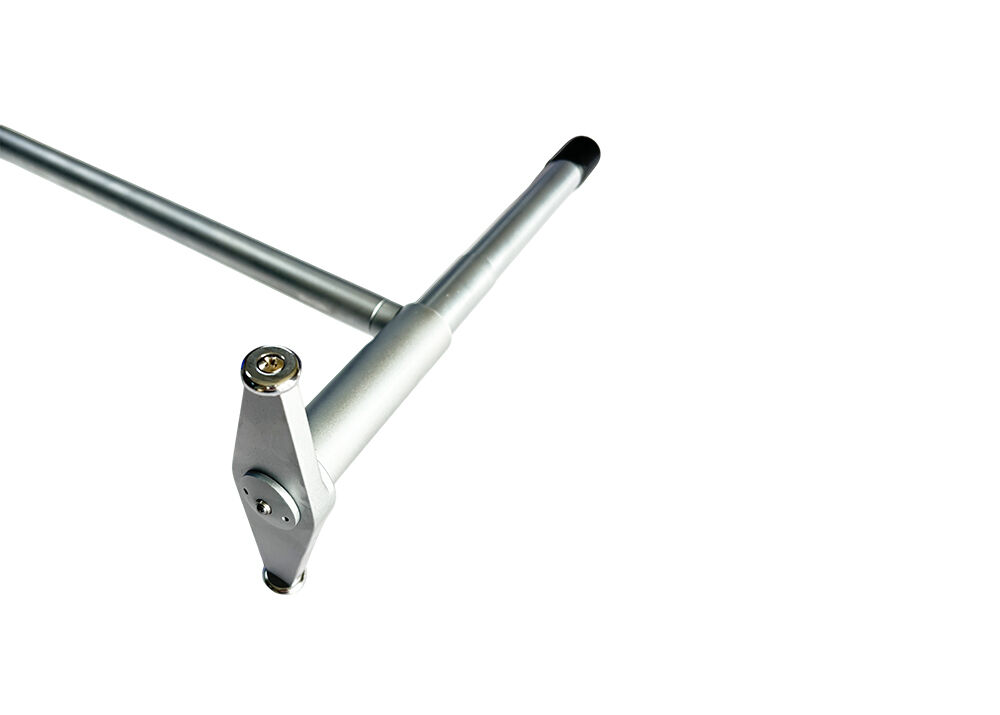

- Wheel guide mechanism for smooth operation
- Interchangeable anvils for versatile use
- 0.0001″ precision dial indicator included
- Customizable measuring depth for various applications
- Supplied in protective fitted case
Technical Specifications
| Order No. | Range | Graduation | Measuring Depth | Anvils | Washers | Sub-anvils |
|---|---|---|---|---|---|---|
| KM-DBEW-04 | 0.24-0.4" | 0.0001″ | 1.57" | 9 | ||
| KM-DBEW-07 | 0.4-0.7" | 0.0001″ | 4" | 9 | 1 | |
| KM-DBEW-14 | 0.7-1.4" | 0.0001″ | 6" | 10 | 2 | |
| KM-DBEW-20 | 0.7-2.0" | 0.0001″ | 6" | 6 | 2 | |
| KM-DBEW-24 | 1.4-2.4" | 0.0001″ | 6" | 6 | 4 | |
| KM-DBEW-60 | 2-6″ | 0.0001″ | 6" | 11 | 4 | 1 |
| KM-DBEW-100 | 6-10″ | 0.0001″ | 16" | 6 | 6 | 1 |
| KM-DEBW-160 | 10-16″ | 0.0001″ | 16" | 6 | 6 | 2 |
Industry Applications
Bore gauges are extensively used in automotive manufacturing for inspecting engine components, drivetrain systems, and brake assemblies. They are also widely employed in machining, aerospace, shipbuilding, and other precision industries to enhance production efficiency and maintain quality standards.
Usage Precautions
- Do not disassemble or modify the gauge
- Avoid impacts, blows, or knocks to the instrument
- Clean and apply anti-rust treatment after use
- Disassemble the indicator when storing (storing together may affect precision)

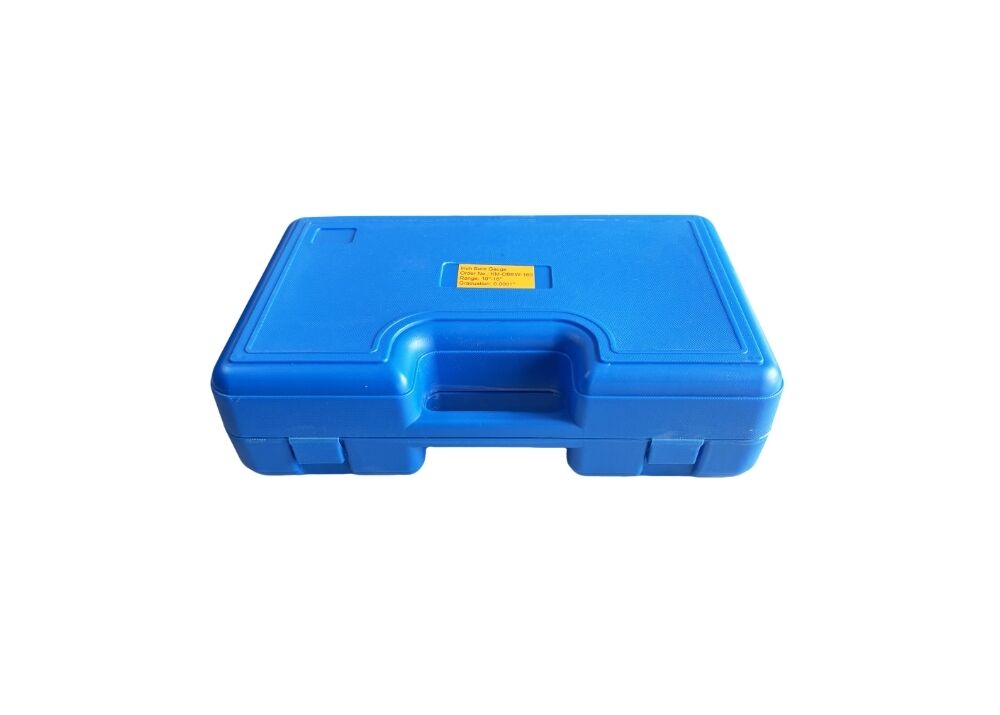

- Store the gauge in its protective case
- Do not interchange anvils, washers, or other components between sets
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacturing, and marketing of KM brand precision measuring tools in mainland China.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trading terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM customization services are available.
How about after-sales service?
All products include a one-year warranty. If you receive any defective accessories, we will ship replacement parts or products. Our experienced manufacturing team maintains strict calibration and inspection standards to ensure product quality.
