Double Scale Vernier Height Gauge With Fine Adjustment For Measuring
-
Highlight
height vernier gauge with fine adjustment
,double scale height vernier gauge
,vernier height gauge is used for measuring
-
WarrantyOne Year
-
MaterialStainless Steel
-
MeasurementMetric
-
Measurement ObjectHeight
-
Range0-300mm
-
Precision0.04mm
-
Graduation0.02mm
-
FunctionWith Fine Adjustment
-
PackagePolyfoam+Paper Box
-
CustomizedAcceptable
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-421-300
-
Packaging DetailsPolyfoam+Paper Box 62*28*14cm/Piece 4.20kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Double Scale Vernier Height Gauge With Fine Adjustment For Measuring
Double Scale Vernier Height Gauge With Fine Adjustment For Measuring

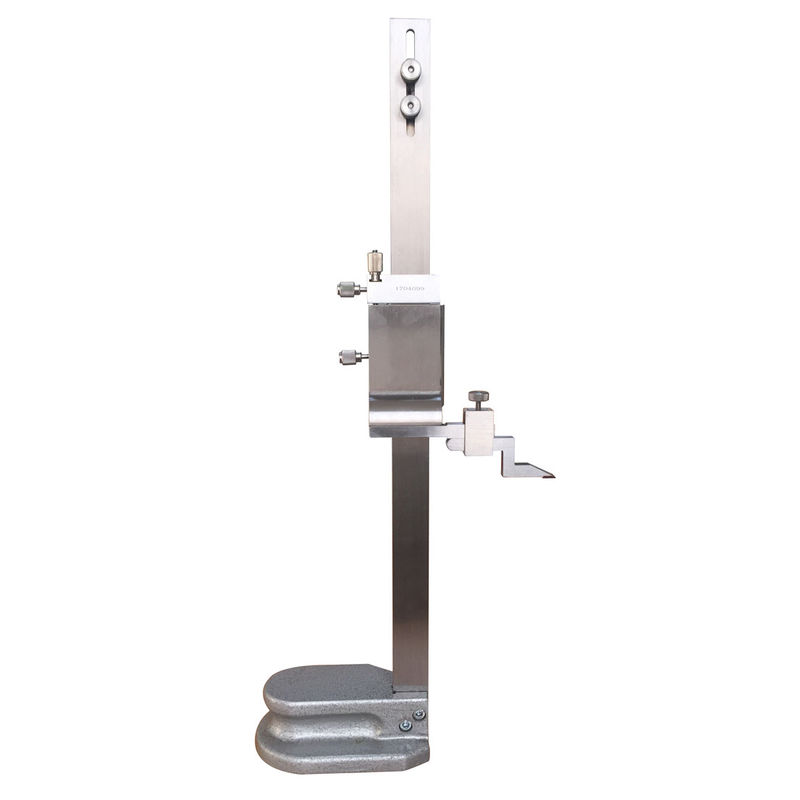

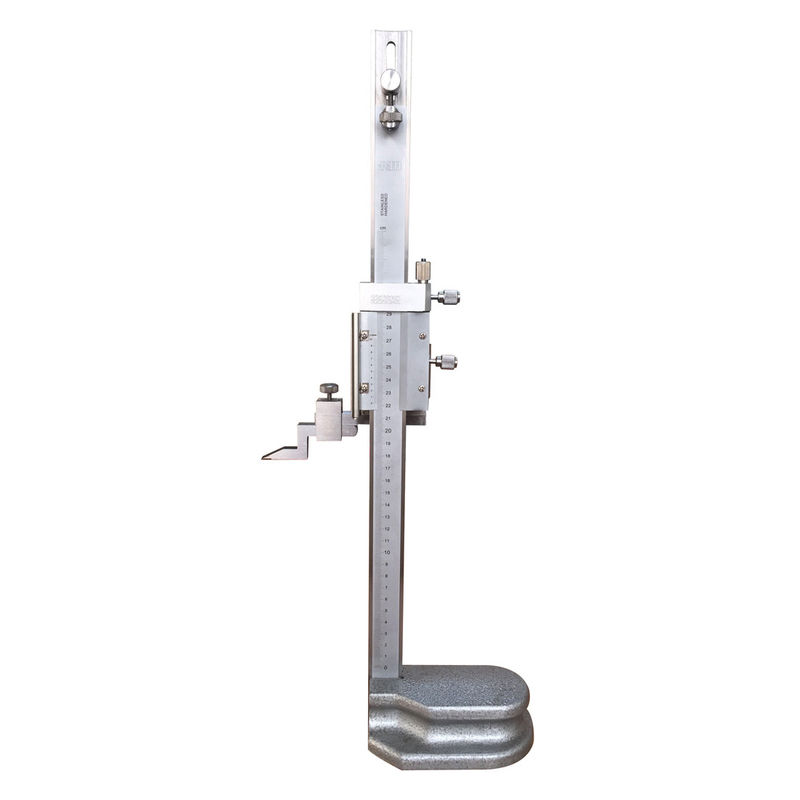

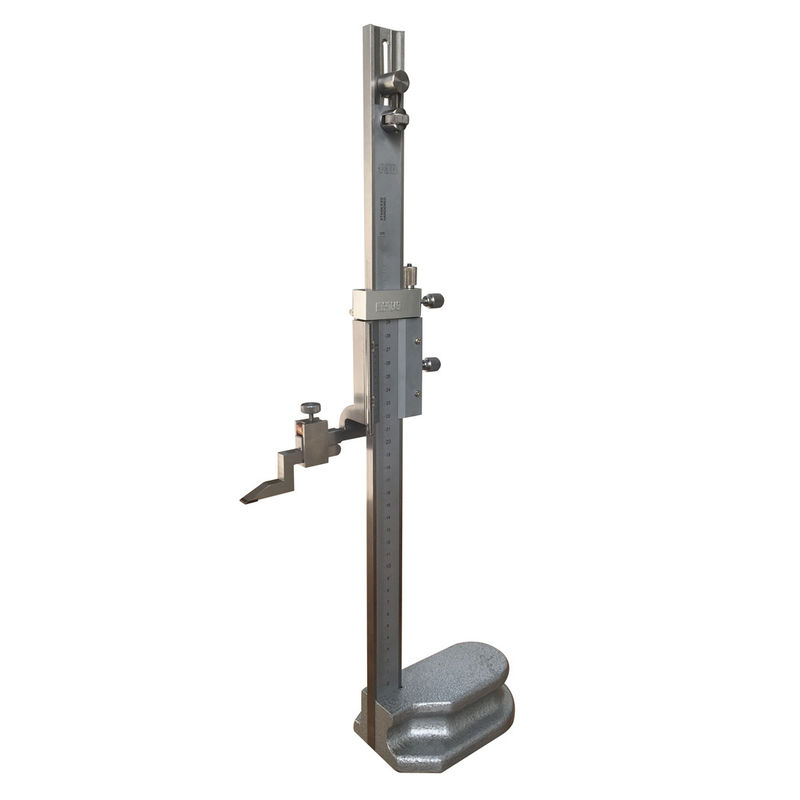

0-300mm/0-12'' Stainless Steel Vernier Height Gauge Measuring Device

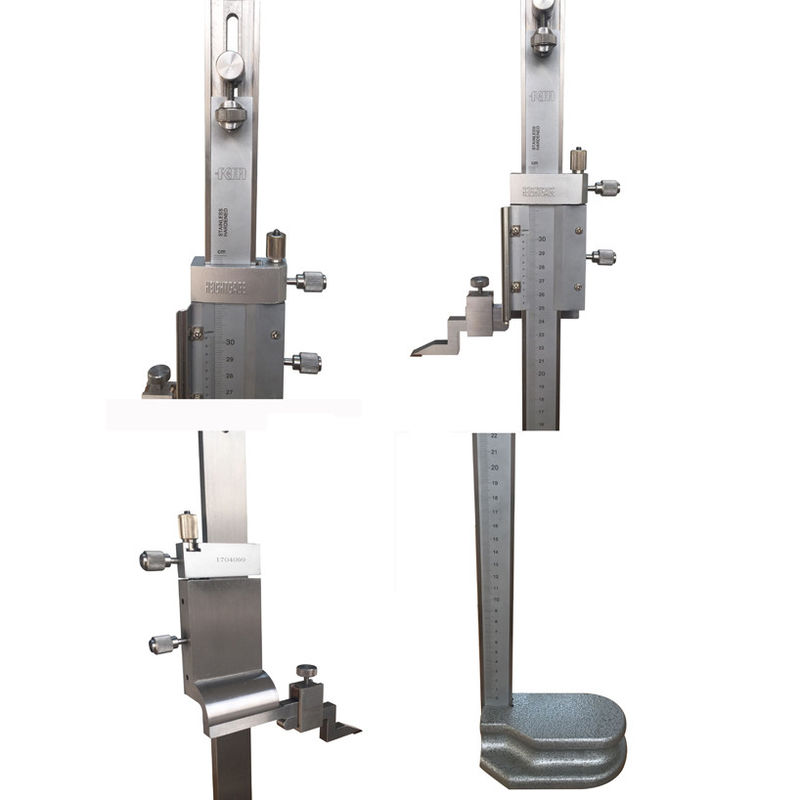

Quick Features:
- Stainless steel hardened construction
- Precision fine adjustment mechanism
- Includes amplifying glass with adjustable main ruler
- Base available with plate chromium, spray paint, or spray plastic finish
- Supplied in protective fitted case
Product Description:

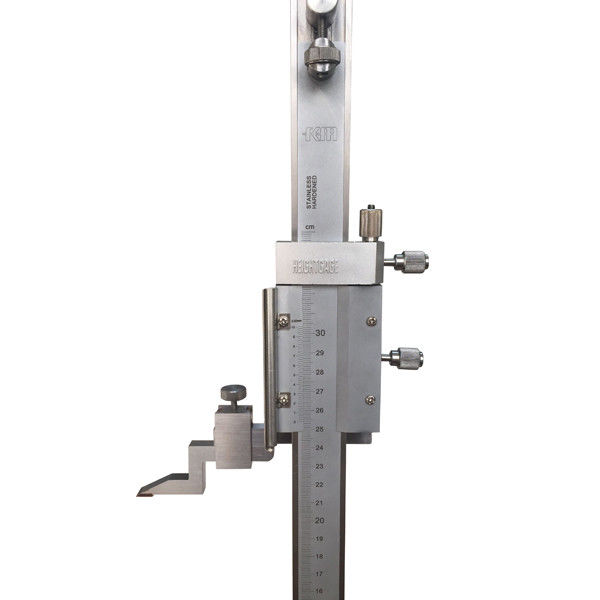

Our KM-421 series stainless steel vernier height gauge is designed for precision measurement in metalworking and metrology applications. The sharpened pointer functions as a scriber for accurate marking of work pieces.
Constructed from durable stainless steel, this height gauge offers extended service life and stable performance for long-term use. The robust structural design ensures measurement accuracy and reliability.
Available in multiple measuring ranges to suit various requirements: metric (0-300mm to 0-1500mm), inch (0-12" to 0-60"), or dual-scale metric/inch combinations.
Technical Specifications:
| Order No. | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| KM-421-300 | 0-300mm | 0.02mm | 0-150mm±0.02mm 0-12" ±0.001" |
| KM-421-450 | 0-450mm | 0.02mm | |
| KM-421-500 | 0-500mm | 0.02mm | |
| KM-421-600 | 0-600mm | 0.02mm | |
| KM-421-1000 | 0-1000mm | 0.02mm | |
| KM-421-1500 | 0-1500mm | 0.02mm | |
| KM-421-12 | 0-12" | 0.001" | |
| KM-421-18 | 0-18" | 0.001" | |
| KM-421-20 | 0-20" | 0.001" | |
| KM-421-24 | 0-24" | 0.001" | |
| KM-421-40 | 0-40" | 0.001" | |
| KM-421-60 | 0-60" | 0.001" | |
| KM-421-30012 | 0-300mm/0-12" | 0.02mm/0.001" | |
| KM-421-45018 | 0-450mm/0-18" | 0.02mm/0.001" | |
| KM-421-50020 | 0-500mm/0-20" | 0.02mm/0.001" | |
| KM-421-60024 | 0-600mm/0-24" | 0.02mm/0.001" | |
| KM-421-100040 | 0-1000mm/0-40" | 0.02mm/0.001" | |
| KM-421-150060 | 0-1500mm/0-60" | 0.02mm/0.001" |
Usage Precautions:
- Clean the main ruler, measuring jaw, and workpiece surface before measurement
- When measuring height, slightly swing the measuring jaw to obtain the maximum position reading
- Maintain clean measuring surfaces during use
- Store in protective case when not in use for extended periods
Applications:
This height gauge is widely used in construction, bridge engineering, geological exploration, and engineering testing. It can also measure vertical displacement of moving objects with precision.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Our strict calibration and inspection processes ensure product quality. Defective parts will be replaced promptly.
