0-50mm Digital Height Gauge with Multiple Measurement Function
-
Highlight
50mm Digital Height Gauge
,Multiple Measurement Function Digital Height Gauge
-
WarrantyOne Year
-
TypeDigital Height Gauge
-
MaterialCeramic
-
MeasurementMetric/Inch
-
Range0-50mm/0-1.969′′
-
Resolution0.0005mm/0.001mm
-
Accuracy0.002mm
-
Measure MethodAutomatic
-
Measuring SpeedMaximum 5000mm/S
-
PackagePolyfoam+Paper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-433-50
-
Packaging DetailsPolyfoam+Paper Box 45*30*40cm/Piece 35.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
0-50mm Digital Height Gauge with Multiple Measurement Function
- Resolution: 0.0005mm/0.001mm
- Stands available in ceramic, steel or granite
- Wide variety of probe tips for most applications
- Zero set at any position
- In-built Bluetooth wireless transmission
- Customizable column clamp arm size
- Optional mobile power supply
- Supplied in fitted case

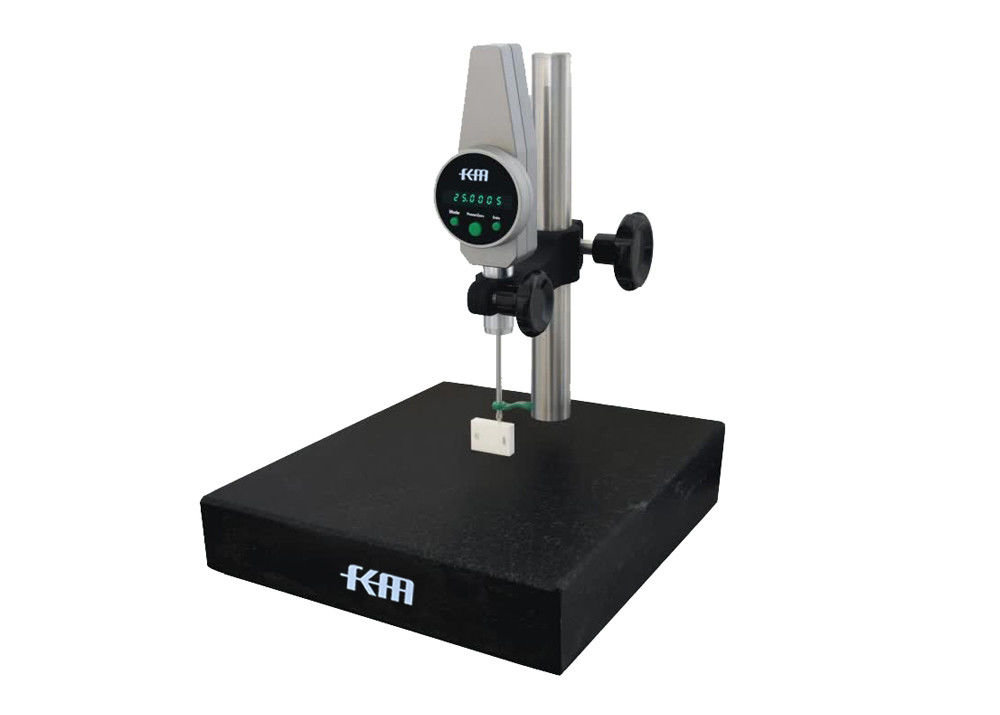

The KM-433 series is an advanced digital height gauge combining Bluetooth wireless transmission with precise digital height measurement. The Bluetooth technology enables wireless data transmission to mobile devices and computers, facilitating rapid data sharing and remote processing to enhance measurement efficiency and flexibility.
This digital height gauge offers multiple measurement functions including height, depth, thickness, deep hole, outer diameter, step, flatness, and parallelism measurements. It features stable precision and high-speed measurement with smooth slider motion.

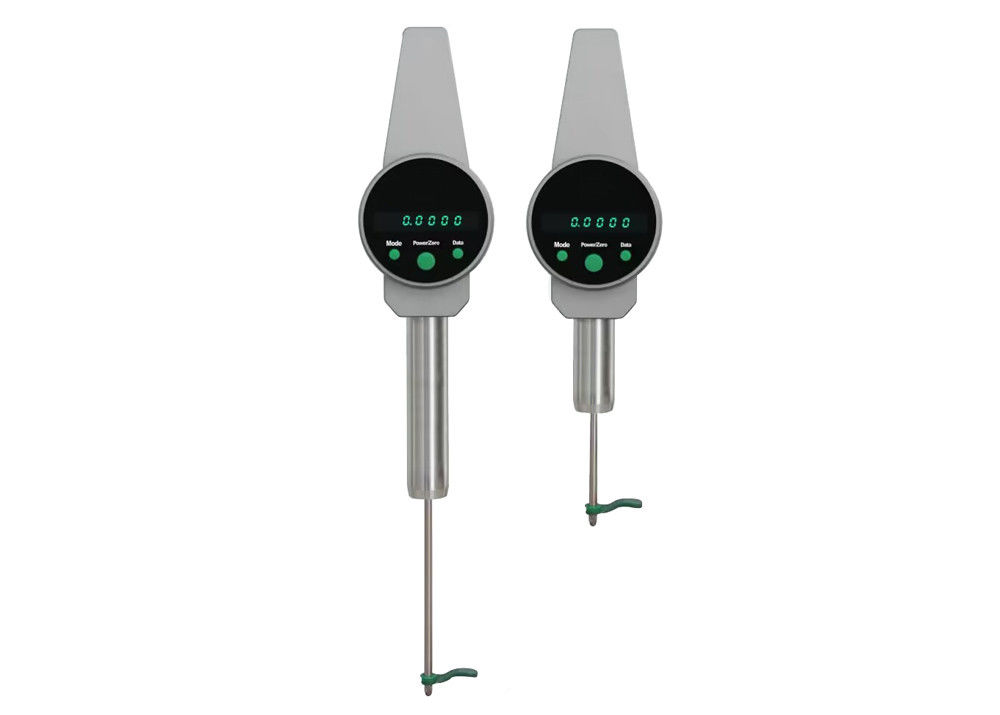

The high-brightness green digital display ensures clear visibility while reducing eye strain during prolonged operation. Each unit includes a digital indicator, gauge stand, stylus with ball contact point, power adapter, and two spindle lift handles. Special-shaped stylus and power bank are available as optional accessories.
| Order No. | Range | Resolution | Accuracy @20° | Repeatability @20° | Gauge Stand | Measuring Force | Weight | Base Material |
|---|---|---|---|---|---|---|---|---|
| KM-433-50 | 0-50mm/0-1.969" | 0.0005mm/0.001mm | ≤0.002mm | ≤0.0005mm | 130mm×130mm | ≤1.2N | 11.6kg | Ceramic |
| KM-433-100 | 0-100mm/0-3.937" | 0.0005mm/0.001mm | ≤0.003mm | ≤0.001mm | 130mm×130mm | ≤1.6N | 11.6kg | Ceramic |
- The display casing cannot be rotated
- Exercise caution when loosening the fixing knob to prevent dropping the digital indicator
- Avoid contact between buttons and oil/corrosive substances
- Press buttons with finger surface to prevent damage
- Maintain clean working plate during measurement
- After measurement, lift the digital indicator - avoid prolonged pressure on the probe
Digital height gauges are widely used for precision measurements in mold parts, precision automation components, automotive engine parts, electronic connectors, aerospace, and related fields.
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
We support FOB, CFR, CIF, and EXW trade terms.
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Yes, OEM services are available.
All products come with a one-year warranty. If you receive any defective accessories, we will promptly ship replacement parts or products. Our strict calibration and inspection processes ensure reliable product quality.
