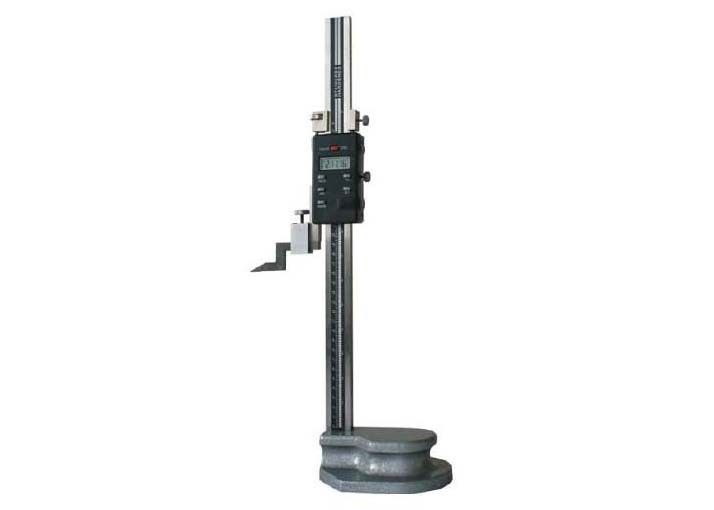

Single Column Digital Height Gauge With 0-300mm Measuring Range

Single Column Digital Height Gauge With 0-300mm Measuring Range

Products - Height Gauges
  • Highlight

    single column digital height gauge

    ,

    height gauge measuring tool 0-12″

    ,

    digital height gauge measuring tool

  • Warranty
    One Year
  • Material
    Stainless Steel
  • Measurement
    Metric/Inch
  • Range
    0-300mm/0-12′′
  • Resolution
    0.01mm/0.0005′′
  • Precision
    ±0.04mm
  • Feature
    Large LCD Screen
  • Package
    Polyfoam+Paper Box
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-422-300
  • Packaging Details
    Polyfoam+Paper Box 51*15*18cm/Piece 4.10kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

Single Column Digital Height Gauge With 0-300mm Measuring Range

  • Single Column Digital Height Gauge With 0-300mm Measuring Range
Get Price Contact Now
Single Column Digital Height Gauge With 0-300mm Measuring Range
Product Overview
Our KM-422 series features a single-column design with carbide measuring jaws for precision and durability. Ideal for metal working and metrology applications, this digital height gauge measures vertical distances with a sharpened pointer that doubles as a scriber for marking work pieces.
Key Features
  • Large LCD display for clear, bright readings
  • Precision gear drive for accurate positioning
  • Convenient handwheel movement
  • Multiple functions: mm/in conversion, ON/OFF/ZERO, ABS, HOLD, TOL, SET
  • Durable base with plate chromium, spray paint, and spray plastic finish
  • Data output capability
  • Includes protective fitted case
Technical Specifications
Order No. Measuring Range Resolution Accuracy
KM-422-300 0-300mm/0-12″ 0.01mm/0.0005″ 0-200m ±0.03mm
＞200-300mm ±0.04mm
＞300-600mm ±0.05mm
＞600-1000mm ±0.07mm
KM-422-450 0-450mm/0-18″ 0.01mm/0.0005″
KM-422-500 0-500mm/0-20″ 0.01mm/0.0005″
KM-422-600 0-600mm/0-24″ 0.01mm/0.0005″
KM-422-1000 0-1000mm/0-40″ 0.01mm/0.0005″
KM-422-1500 0-1500mm/0-60″ 0.01mm/0.0005″
Operation & Maintenance
  • Clean the main ruler, measuring jaw, and workpiece surface before measurement
  • When measuring height, slightly swing the measuring jaw to read the value at the largest position
  • Maintain clean measuring surfaces during use
  • Store in case when not in use for extended periods
  • Remove battery during prolonged storage
Applications
Digital height gauges are essential tools in construction, bridge engineering, geological exploration, and engineering testing. They can also measure vertical displacement of moving objects in industrial applications.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure superior product quality.
