0.2-0.6'' Electronic Internal Digital Caliper Gauge Measuring Tool

5-15mm/0.2-0.6′′ Electronic Digital Inside Caliper Gauge Measuring Tool

Quick Detail:

1. Large LCD digital display for easy reading.

2. Used for measuring bores, internal groove and other hard-to-reach inside dimension.

3. Dial rotates ±170° for use at versions angles.

4. Display data is origin data of absolute measurement after changing battery.

5. Digital display and analog display on LCD, automatic switch over.

6. Analog display range: ±20 graduation.

7. A type and B type measuring face for option.

8. Power ON/OFF.

9. ABS and INC conversion.

10. Metric and Inch conversion.

11. Origin data set.

12. Tolerance set.

13. Remember data of max and min or hold display date.

14. Data output.

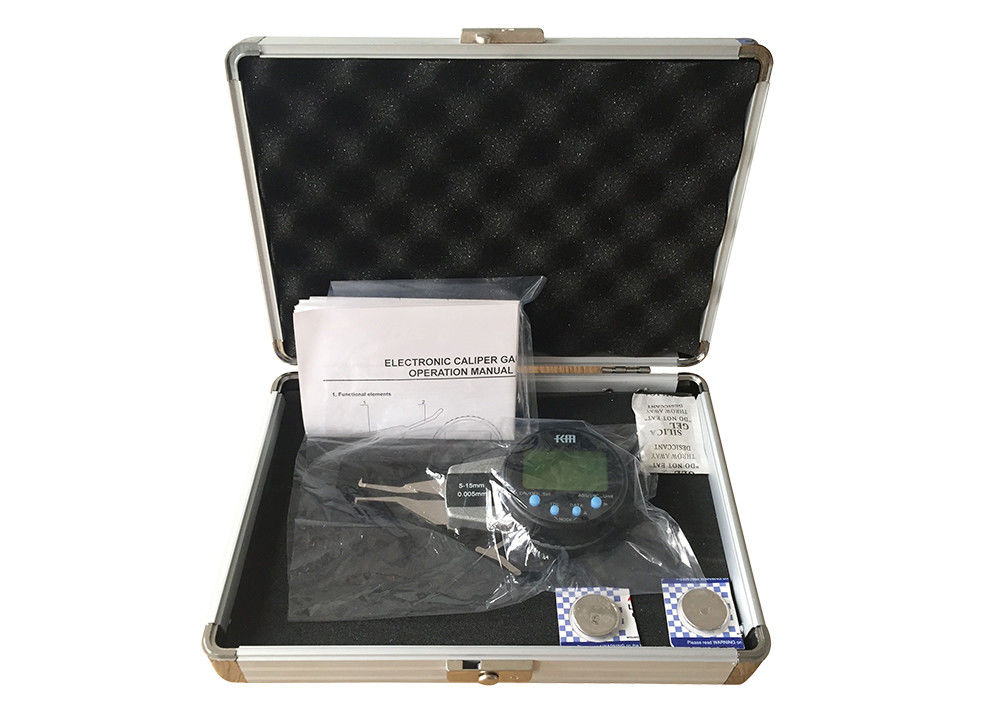

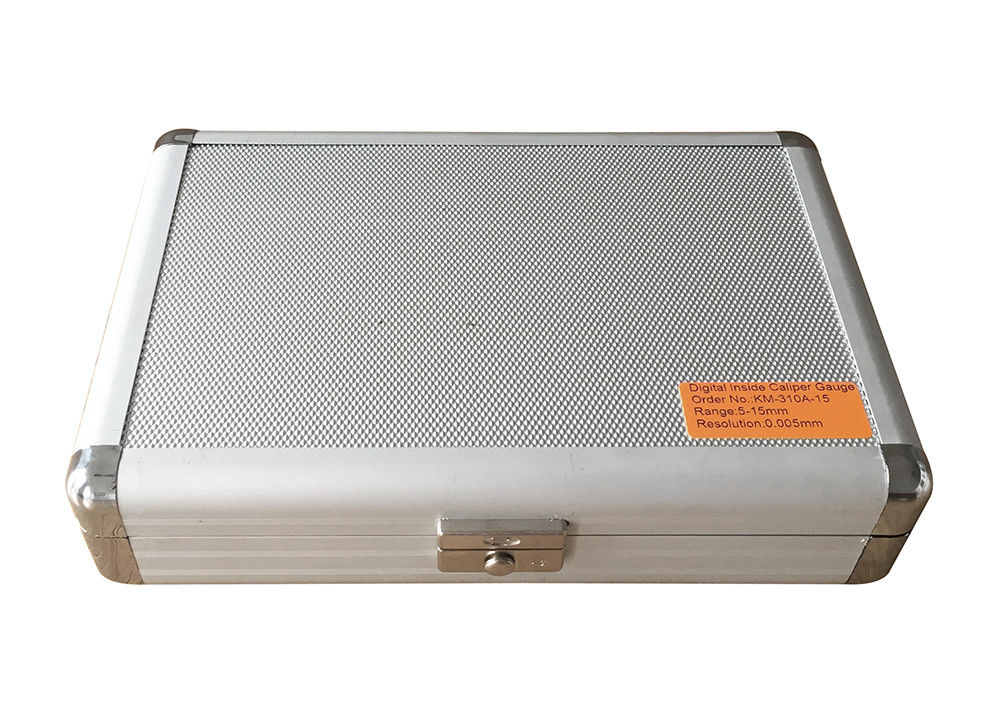

15. Supplied in fitted case.

Description:

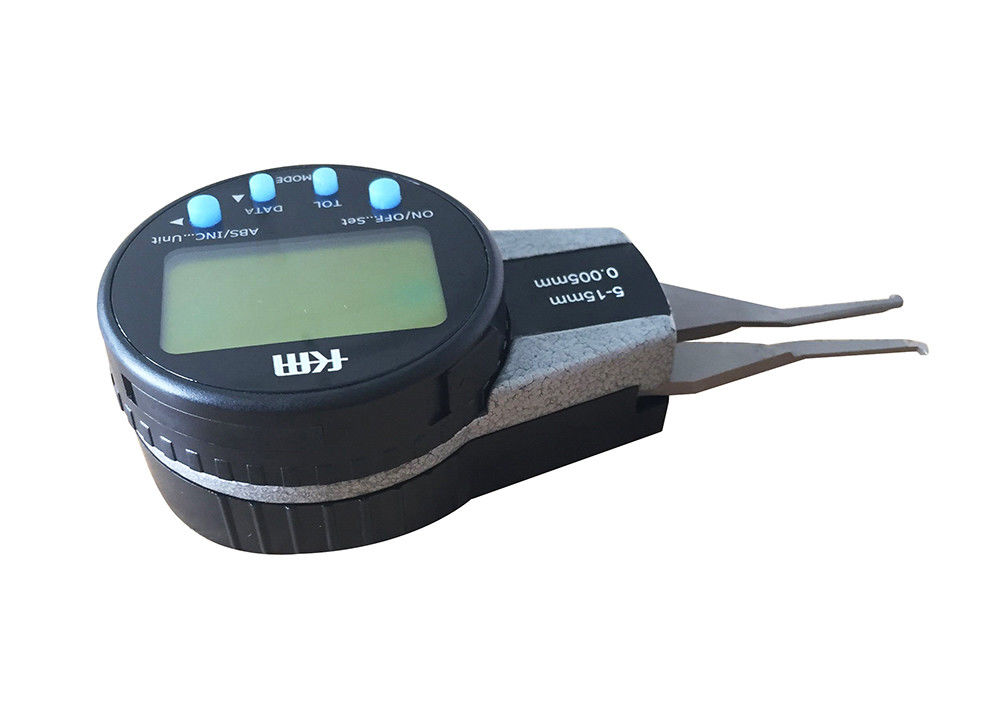

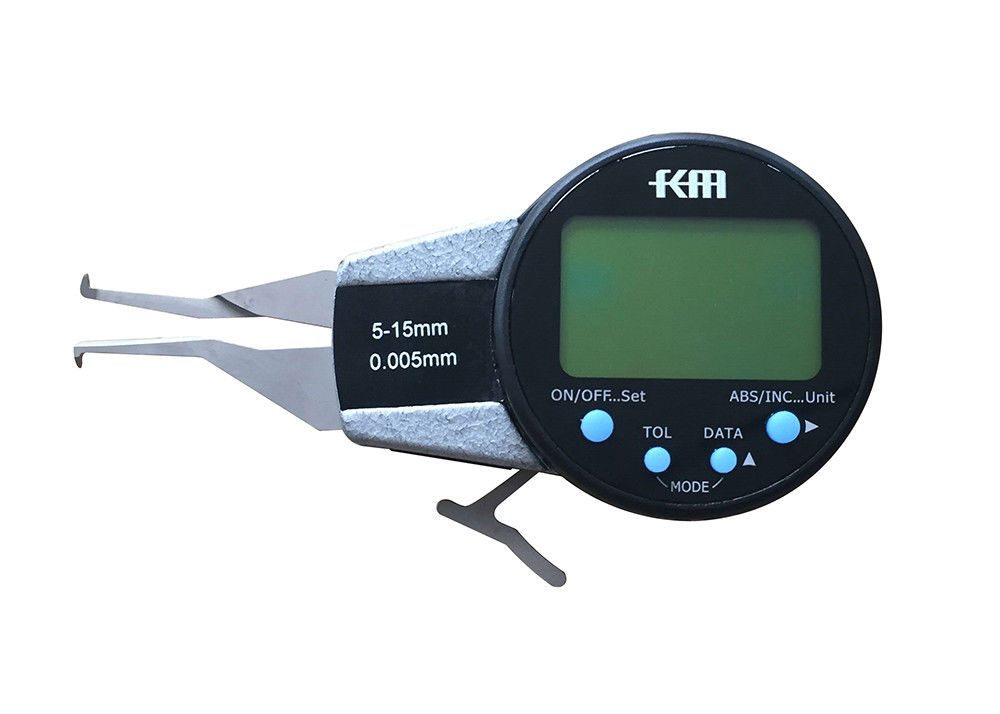

Our KM-310A series is precision inside caliper gauge equipped with a digital indicator and spring-loaded arms

fixed to the digital indicator that measures inside dimensions. The digital display can indicate both metric

and inch measurement, available with measuring range from 5mm up to 60mm for metric and 0.2’’ up to 2.4’’ for inch.

Our digital inside/external caliper gauges are manufactured with high-quality materials and precise processes

for high durability and stability. Even in harsh working environments, it can maintain stable operation for a long time.

Specification:

Travel 10mm

Metric

Order No.	Range	Resolution	Accuracy	Measuring Contact Forms
KM-310A-15	5~15mm	0.005mm	0.02mm
KM-310A-20	10~20mm	0.005mm	0.02mm
KM-310A-30	20~30mm	0.005mm	0.02mm
KM-310A-40	30~40mm	0.005mm	0.02mm
KM-310A-50	40~50mm	0.005mm	0.02mm
KM-310B-20	10~20mm	0.005mm	0.02mm
KM-310B-30	20~30mm	0.005mm	0.02mm
KM-310B-40	30~40mm	0.005mm	0.02mm
KM-310B-50	40~50mm	0.005mm	0.02mm

Inch

Order No.	Range	Resolution	Accuracy	Measuring Contact Forms
KM-310A-0.6	0.2~0.6″	0.0002″	0.0008″
KM-310A-0.8	0.4~0.8″	0.0002″	0.0008″
KM-310A-1.2	0.8~1.2″	0.0002″	0.0008″
KM-310A-1.6	1.2~1.6″	0.0002″	0.0008″
KM-310A-2.0	1.6~2.0″	0.0002″	0.0008″
KM-310B-0.8	0.4~0.8″	0.0002″	0.0008″
KM-310B-1.2	0.8~1.2″	0.0002″	0.0008″
KM-310B-1.6	1.2~1.6″	0.0002″	0.0008″
KM-310B-2.0	1.6~2.0″	0.0002″	0.0008″

Travel 20mm

Metric

Order No.	Range	Resolution	Accuracy	Measuring Contact Forms
KM-320A-25	5~25mm	0.005mm	0.03mm
KM-320A-30	10~30mm	0.005mm	0.03mm
KM-320A-40	20~40mm	0.005mm	0.03mm
KM-320A-50	30~50mm	0.005mm	0.03mm
KM-320A-60	40~60mm	0.005mm	0.03mm
KM-320B-30	10~30mm	0.005mm	0.03mm
KM-320B-40	20~40mm	0.005mm	0.03mm
KM-320B-50	30~50mm	0.005mm	0.03mm
KM-320B-60	40~60mm	0.005mm	0.03mm

Inch

Order No.	Range	Resolution	Accuracy	Measuring Contact Forms
KM-320A-1.0	0.2~1.0″	0.0002″	0.0012″
KM-320A-1.2	0.4~1.2″	0.0002″	0.0012″
KM-320A-1.6	0.8~1.6″	0.0002″	0.0012″
KM-320A-2.0	1.2~2.0″	0.0002″	0.0012″
KM-320A-2.4	1.6~2.4″	0.0002″	0.0012″
KM-320B-1.2	0.4~1.2″	0.0002″	0.0012″
KM-320B-1.6	0.8~1.6″	0.0002″	0.0012″
KM-320B-2.0	1.2~2.0″	0.0002″	0.0012″
KM-320B-2.4	1.6~2.4″	0.0002″	0.0012″

Precautions:

1. Do not subject the gauge to blows or knocks.

2. Do not drop the gauge or apply excessive force to the gauge.

3. Do not disassemble the gauge.

4. Do not press the button with a pointed object.

5. Do not use or store the gauge under direct sunlight or in an excessively hot or cold environment.

6. Do not subject the gauge in strong magnetic fields and high voltage environment.

7. Use soft cloth or cotton cleaning the gauge. Do not use any organic solvent .

8. Remove the battery if the gauge not use for a long time.

Applications:

Digital inside caliper gauges are suitable for the measurement of inside dimensions in various industries,

such as mechanical manufacturing, metal manufacturing, automobile manufacturing, aerospace and so on.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
