Range 0-20mm Electronic Digital Display Stainless Steel Outside Caliper Gauge
-
Highlight
0-20mm Electronic Digital Display Outside Caliper Gauge
,Stainless Steel Digital Outside Caliper
,0-20mm Outside Caliper Gauge
-
WarrantyOne Year
-
TypeDial Gauge
-
MaterialStainless Steel
-
Measurement ObjectDigital Outside Caliper
-
MeasurementMetric/Inch
-
Range15-35mm/0.6-1.4′′
-
Resolution0.01mm/0.0005′′
-
FeaturedWith Convenient Grip Handle
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-D601-20
-
Packaging DetailsABS Box 22*9*5cm/Piece 0.90kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Range 0-20mm Electronic Digital Display Stainless Steel Outside Caliper Gauge
0-20mm/0-0.8″ Electronic Digital Display Outside Caliper Gauge
Quick Features
- Large LCD for easy reading
- Measures outside diameter, ring groove bottom diameter, and hard-to-reach dimensions
- Ergonomic handle for easy operation
- Metric/Inch conversion capability
- Power on/off function
- ZERO-setting at any position

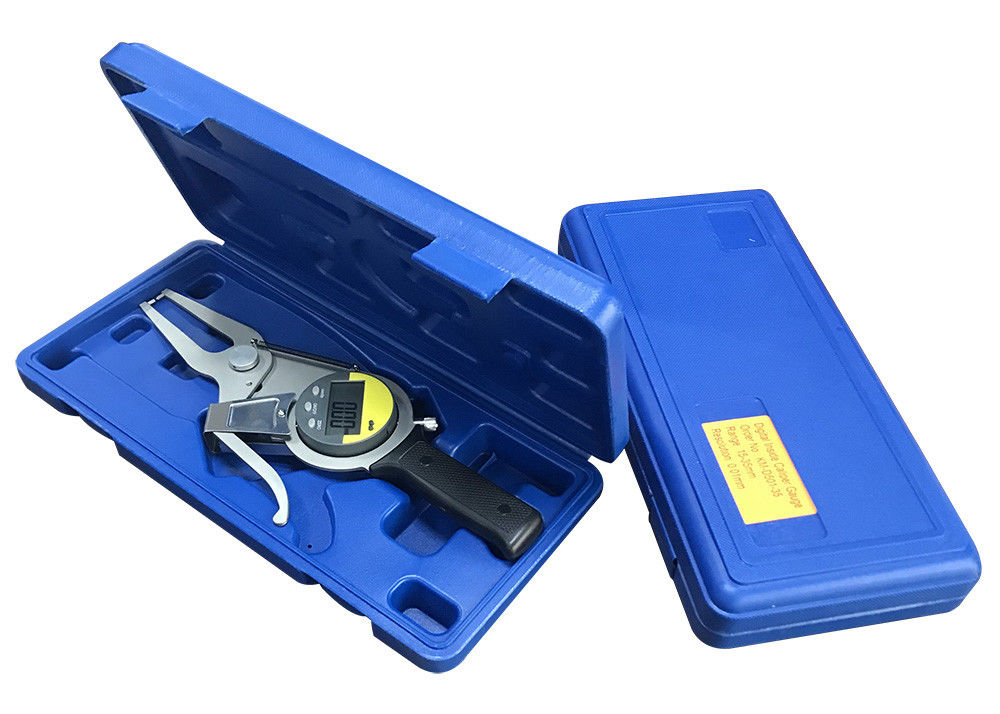

- Includes protective case for safe storage
Product Description

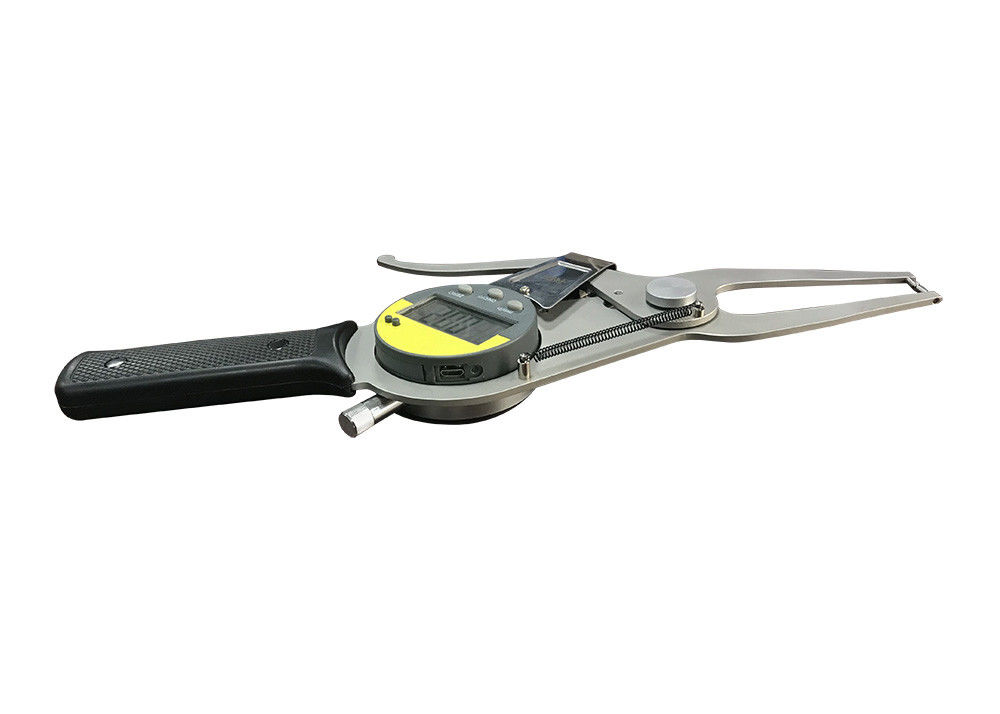

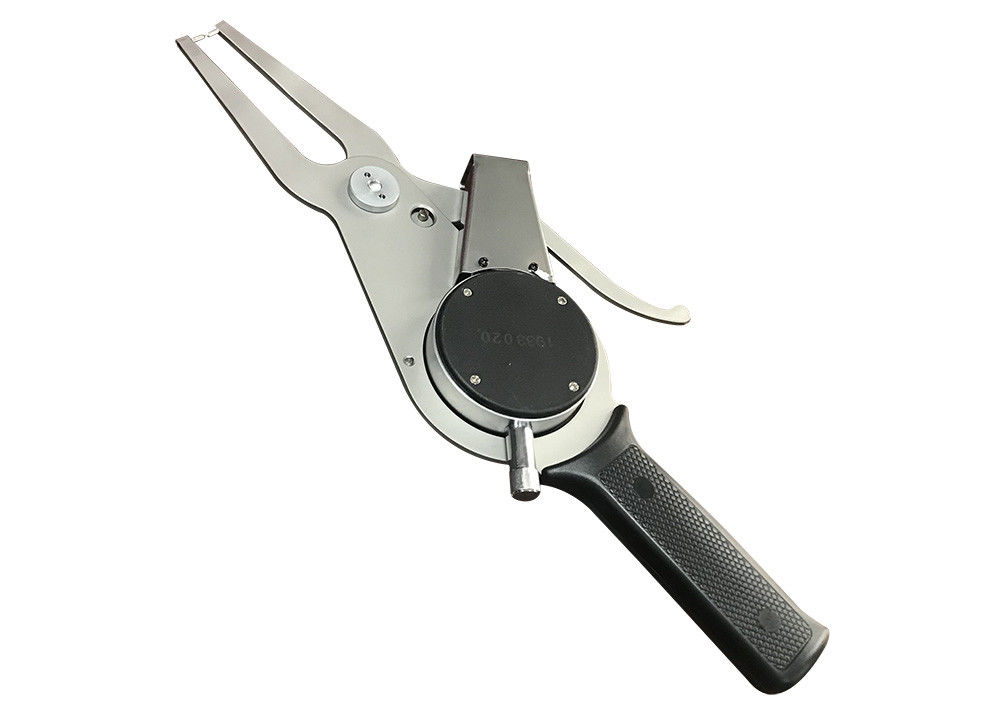

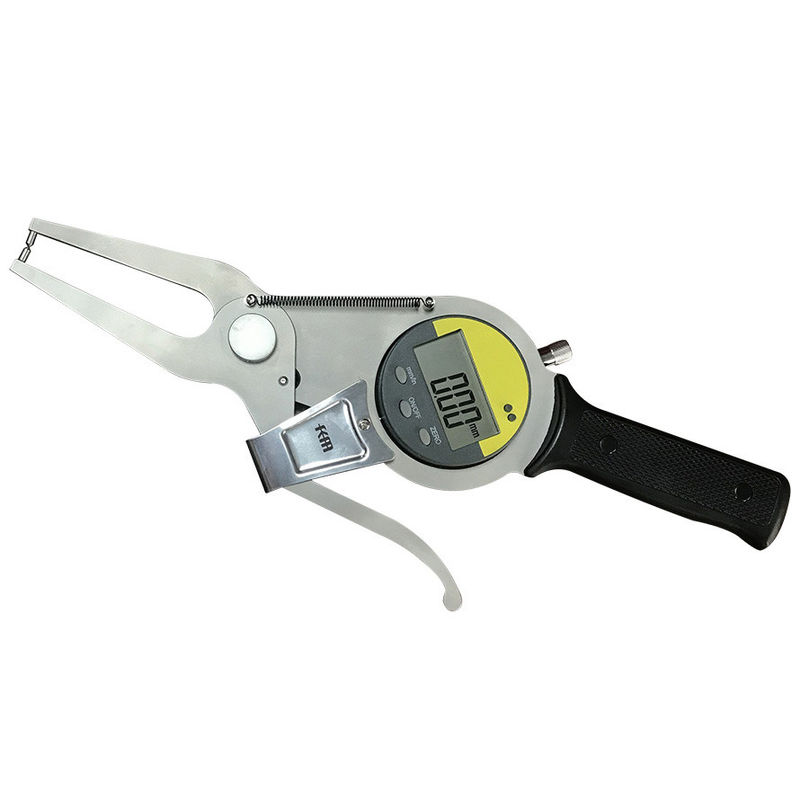

This digital outside caliper gauge features a digital indicator with spring-loaded arms for precise measurement of external dimensions. The ergonomic handle ensures comfortable operation while the clear digital display provides intuitive readings, improving measurement efficiency and reducing human error. Available in both metric (mm) and inch measurements, with ranges up to 300mm (12″).
Manufactured with high-quality materials and precision engineering, our digital caliper gauges offer exceptional durability and stability. They maintain reliable performance even in demanding industrial environments.
Technical Specifications
| Order No. | Range | Resolution | Outline Dimension | A | φB | L |
|---|---|---|---|---|---|---|
| KM-D601-20 | 0~20mm/0~0.8″ | 0.01mm/0.0005″ | 6 | 3 | 60 | |
| KM-D601-40 | 20~40mm/0.8~1.6″ | 0.01mm/0.0005″ | 6 | 3 | 60 | |
| KM-D601-60 | 40~60mm/1.6~2.4″ | 0.01mm/0.0005″ | 6 | 3 | 55 | |
| KM-D601-80 | 60~80mm/2.4~3.2″ | 0.01mm/0.0005″ | 6 | 3 | 55 | |
| KM-D601-100 | 80~100mm/3.2~4″ | 0.01mm/0.0005″ | 10 | 3 | 55 | |
| KM-D601-120 | 100~120mm/4~4.8″ | 0.01mm/0.0005″ | 10 | 3.2 | 95 | |
| KM-D601-140 | 120~140mm/4.8~5.6″ | 0.01mm/0.0005″ | 10 | 3.2 | 95 | |
| KM-D601-160 | 140~160mm/5.6~6.4″ | 0.01mm/0.0005″ | 10 | 3.2 | 95 | |
| KM-D601-180 | 160~180mm/6.4~7″ | 0.01mm/0.0005″ | 10 | 3.2 | 95 | |
| KM-D601-200 | 180~200mm/7~8″ | 0.01mm/0.0005″ | 10 | 3.2 | 95 | |
| KM-D601-220 | 200~220mm/8~8.8″ | 0.01mm/0.0005″ | 10 | 3.2 | 160 | |
| KM-D601-240 | 220~240mm/8.8~9.6″ | 0.01mm/0.0005″ | 10 | 3.2 | 160 | |
| KM-D601-260 | 240~260mm/9.6~10″ | 0.01mm/0.0005″ | 10 | 3.2 | 180 | |
| KM-D601-280 | 260~280mm/10~11″ | 0.01mm/0.0005″ | 10 | 3.2 | 200 | |
| KM-D601-300 | 280~300mm/11~12″ | 0.01mm/0.0005″ | 10 | 3.2 | 200 |
Usage Precautions
- Protect from impacts, drops, or excessive force
- Do not disassemble the gauge
- Avoid pressing buttons with sharp objects
- Store away from direct sunlight and extreme temperatures
- Keep away from strong magnetic fields and high voltage
- Clean only with soft cloth - no solvents
- Remove battery during extended storage
Industrial Applications
Ideal for precision measurement in mechanical manufacturing, metal fabrication, automotive production, aerospace engineering, and other industrial applications requiring accurate external dimension measurement.
Frequently Asked Questions
About Our Company
Deko Corporation specializes in developing and manufacturing KM brand precision measuring tools in China.
Product Range
We offer dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, levels, and other precision measurement tools.
Trade Terms
Available terms include FOB, CFR, CIF, and EXW.
Payment Methods
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Customization
OEM services available for custom requirements.
Warranty & Support
All products include one-year warranty. Defective items will be replaced promptly.
