Highlight
90 Degree Bevel Square
,Stainless Steel Beveled Edge Square
,90 Degree Beveled Edge Square
-
WarrantyOne Year
-
MaterialStainless Steel
-
Measurement ObjectAngle
-
Size50x40mm
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-BES40
-
Packaging DetailsPaper Box 10*7*3cm/Piece 0.50kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

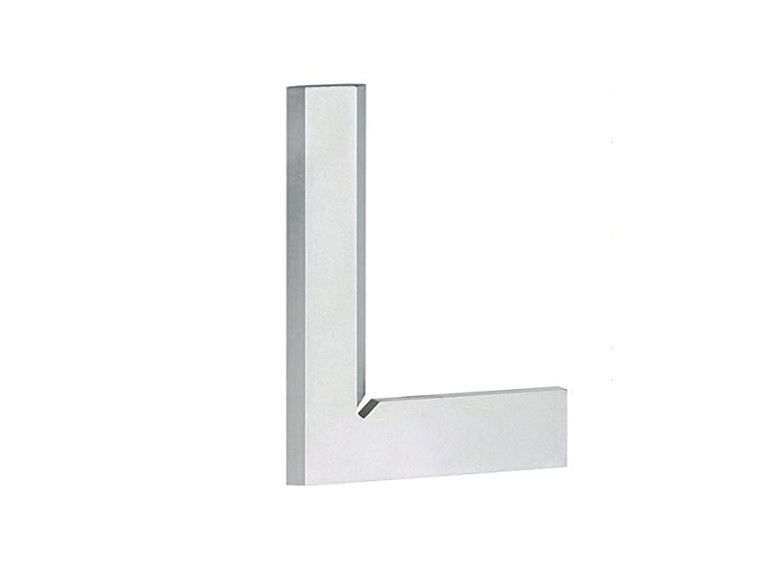

90 Degree Stainless Steel Beveled Edge Square
90 Degree Stainless Steel Beveled Edge Square
Quick Features
- DIN 875 grade 00 precision standard
- Beveled edge design for inside measurements
- Constructed from hardened stainless steel
- Custom specifications available upon request
- Includes protective case for safe storage
Product Description
The KM 90° beveled edge square is engineered for checking and calibrating the squareness of machine parts, tools, and workpieces. Meeting the DIN875 00 grade (the highest precision standard), this tool ensures minimal deviation and maximum measurement accuracy.
Manufactured from high-quality hardened stainless steel with quenching technology, this square offers exceptional durability, wear resistance, and corrosion protection while maintaining precise measurement capabilities over extended service life.
Available in standard sizes with custom options available to meet specific measurement requirements.

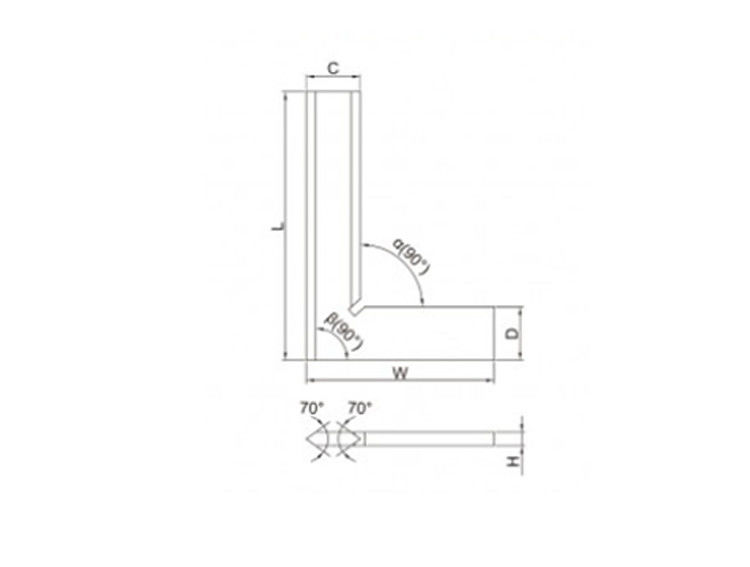

Technical Specifications
| Order No. | Range | Squareness Inside(α) | Squareness Outside(β) | C (mm) | D (mm) | H (mm) |
|---|---|---|---|---|---|---|
| KM-BES40 | 50x40mm | 2.4μm | 2.5μm | 14 | 14 | 4 |
| KM-BES50 | 75x50mm | 2.6μm | 2.8μm | 15 | 15 | 4.5 |
| KM-BES70 | 100x70mm | 2.8μm | 3.0μm | 20 | 20 | 5.5 |
| KM-BES100 | 150x100mm | 3.2μm | 3.5μm | 25 | 25 | 6 |
| KM-BES130 | 200x130mm | 3.7μm | 4.0μm | 30 | 30 | 7 |
| KM-BES160 | 250x160mm | 4.2μm | 4.5μm | 35 | 35 | 7 |
| KM-BES200 | 300x200mm | 4.6μm | 5.0μm | 40 | 40 | 8 |
Usage Guidelines
- Maintain steady pressure during measurement to prevent inaccuracies
- Handle with care to avoid damage from impacts or bending
- Select appropriate size based on workpiece dimensions
- Clean and dry thoroughly after each use
Industrial Applications
Essential for machinists, engineers, and quality control professionals across various industries requiring precise squareness verification of components and assemblies.
Frequently Asked Questions
About Our Company
Deko Corporation specializes in the development, manufacturing, and distribution of KM brand precision measuring tools in China.
Product Range
We offer comprehensive measuring solutions including dial indicators, micrometers, calipers, bore gauges, height gauges, and various other precision instruments.
Trade Terms
We support FOB, CFR, CIF, and EXW shipping arrangements.
Payment Options
Multiple payment methods accepted including T/T, L/C, D/A, D/P, PayPal, and Western Union.
Customization
OEM services available for specialized requirements.
Warranty & Support
All products include one-year warranty with replacement of defective components. Our strict quality control processes ensure reliable performance.
