90 Degree Square Measuring Tools
,Stainless Steel Flat Edge Square
-
WarrantyOne Year
-
MaterialStainless Steel
-
Measurement ObjectAngle
-
Size50x40mm
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-BEF40
-
Packaging DetailsPaper Box 10*7*3cm/Piece 0.50kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

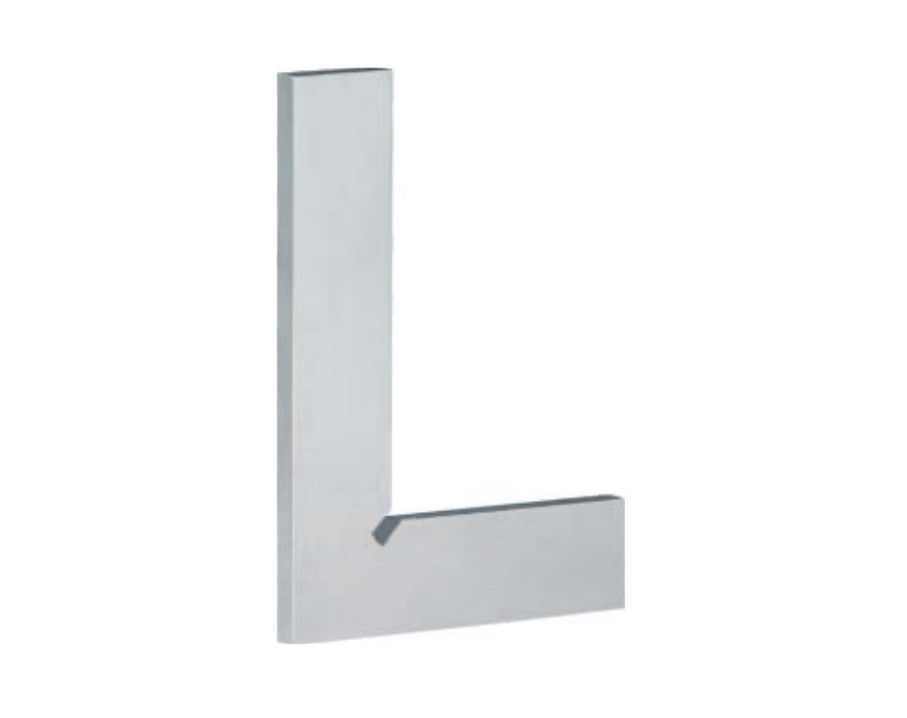

90 Degree Stainless Steel Flat Edge Square Measuring Tools
90 Degree Stainless Steel Flat Edge Square Measuring Tools
Product Overview
Precision 90° beveled edge square for checking squareness of machined parts, layout work, and precision measurement tasks. Manufactured to DIN 875 grade 0 standards for maximum accuracy.
Key Features
- DIN 875 grade 0 precision standard
- Beveled edge for inside measurements
- Hardened stainless steel construction
- Custom specifications available
- Includes protective case
Technical Specifications

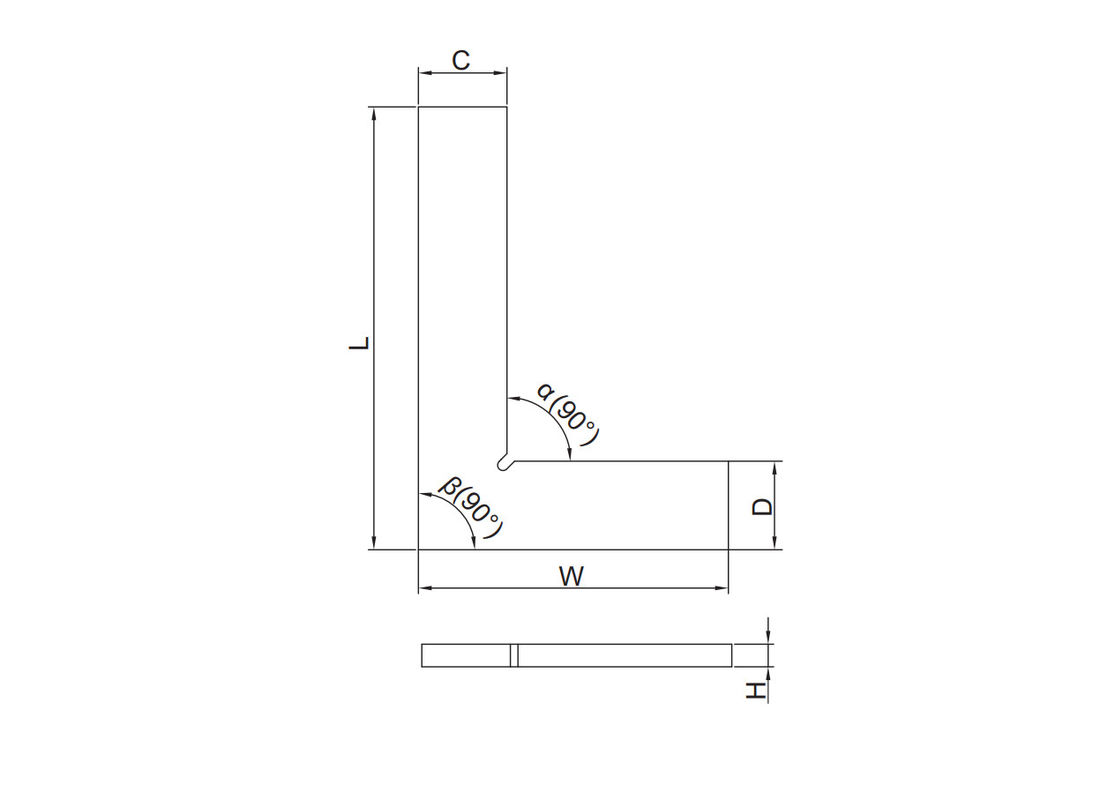

| Order No. | Range | Squareness (Inside α) | Squareness (Outside β) | C (mm) | D (mm) | H (mm) |
|---|---|---|---|---|---|---|
| KM-BEF40 | 50x40mm | 6μm | 6μm | 14 | 14 | 4 |
| KM-BEF50 | 75x50mm | 6μm | 7μm | 15 | 15 | 4.5 |
| KM-BEF70 | 100x70mm | 7μm | 7μm | 20 | 20 | 5.5 |
| KM-BEF100 | 150x100mm | 7μm | 8μm | 25 | 25 | 6 |
| KM-BEF130 | 200x130mm | 8μm | 9μm | 30 | 30 | 7 |
| KM-BEF160 | 250x160mm | 9μm | 10μm | 35 | 35 | 7 |
| KM-BEF200 | 300x200mm | 10μm | 11μm | 40 | 40 | 8 |
Usage Guidelines
- Maintain steady pressure during measurements to ensure accuracy
- Handle with care to prevent damage from impacts or bending
- Select appropriate size for your measurement requirements
- Clean and dry after each use to maintain precision
Applications
Essential tool for machinists, engineers, and quality control professionals in industrial and engineering applications requiring precise squareness verification.
