DIN 875 Beveled Square
,Grade 0 Beveled Square
,90 Degree Beveled Square
-
WarrantyOne Year
-
MaterialStainless Steel
-
Measurement ObjectAngle
-
Size50x40mm
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-BES040
-
Packaging DetailsPaper Box 10*7*3cm/Piece 0.50kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

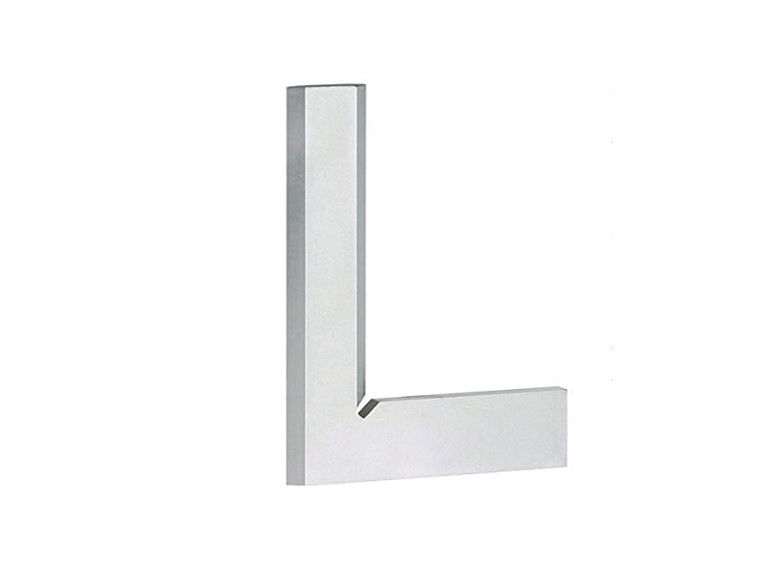

90 Degree Stainless Steel Beveled Edge Square With DIN 875 Grade 0
The KM 90° beveled edge square features a 90 degree beveled edge, designed for checking and calibrating the squareness of machine parts, tools, and workpieces. The KM-BES series meets grade DIN875 0, ensuring minimal deviation and maximum accuracy in measurements.
- DIN 875 grade 0 certified for precision
- Beveled edge design for inside measurements
- Constructed from hardened stainless steel for durability
- Custom specifications available upon request
- Includes protective case for safe storage and transport

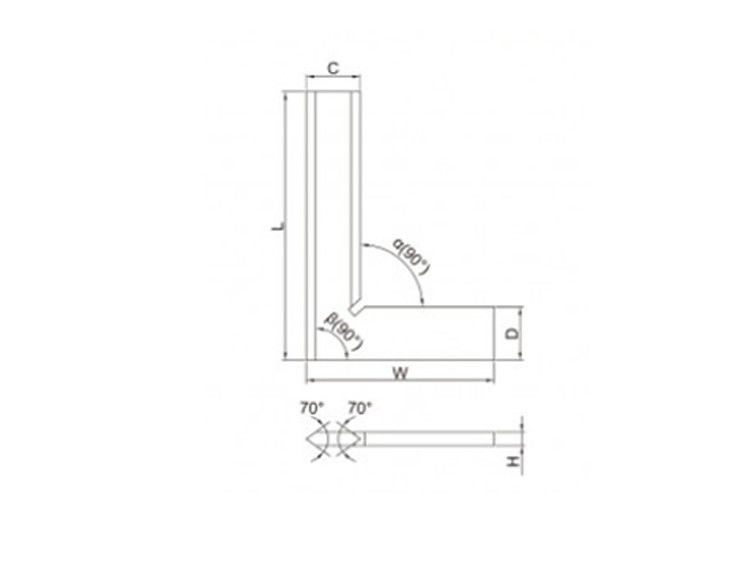

| Order No. | Range | Squareness Inside (α) | Squareness Outside (β) | C (mm) | D (mm) | H (mm) |
|---|---|---|---|---|---|---|
| KM-BES040 | 50x40mm | 6μm | 6μm | 14 | 14 | 4 |
| KM-BES050 | 75x50mm | 6μm | 7μm | 15 | 15 | 4.5 |
| KM-BES070 | 100x70mm | 7μm | 7μm | 20 | 20 | 5.5 |
| KM-BES0100 | 150x100mm | 7μm | 8μm | 25 | 25 | 6 |
| KM-BES0130 | 200x130mm | 8μm | 9μm | 30 | 30 | 7 |
| KM-BES0160 | 250x160mm | 9μm | 10μm | 35 | 35 | 7 |
| KM-BES0200 | 300x200mm | 10μm | 11μm | 40 | 40 | 8 |
- Maintain steady pressure during measurements to ensure accuracy
- Handle with care to prevent damage from impacts or bending
- Select appropriate size based on workpiece dimensions
- Clean and dry after each use to maintain precision
This precision square is essential for machinists, engineers, and quality control professionals across various industries requiring accurate measurement tools for manufacturing, assembly, and inspection processes.
