Oil Measuring Instruments 0-4mm Buttress Thread Vanish Thread Deviating Trapezoid Thread Gauge for Inspecting

Oil Measuring Instruments 0-4mm Buttress Thread Vanish Thread Deviating Trapezoid Thread Gauge for Inspecting

Quick Detail:

1. Used to inspect runout thread roots to ensure sufficient external thread length and proximity to the vanishing point for

    the API Spec 5B standard threads.

2. Select the proper contact point for your particular measurement requirement.

Specification:

Packing&Shipping:

Company Profile:

Precautions:

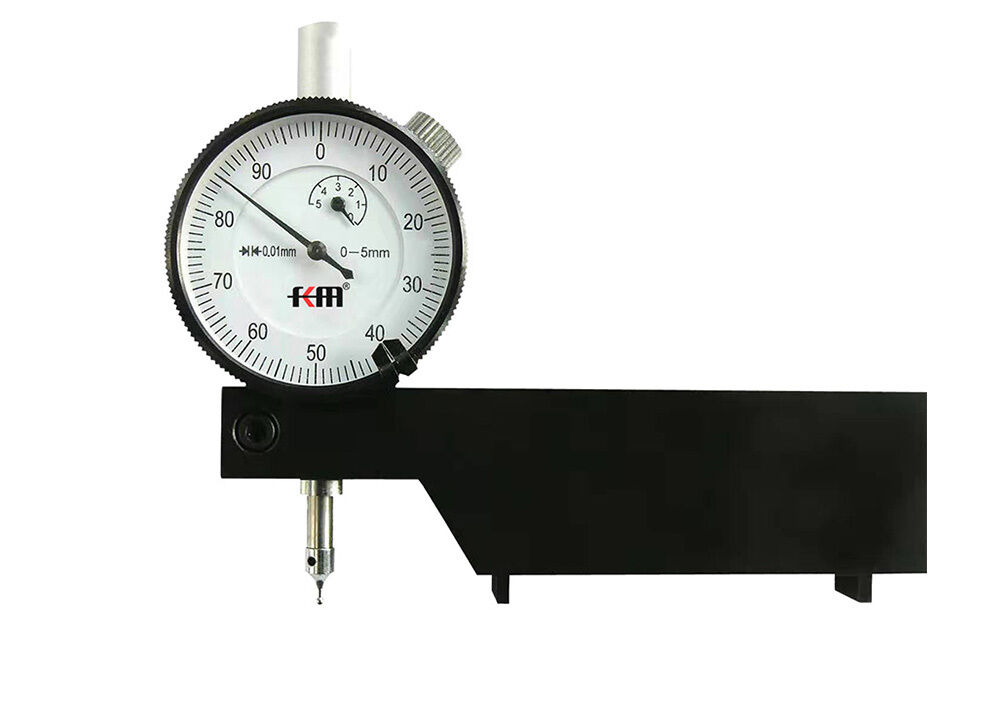

1. According to the specifications of the thread to be measured, place the measuring tip in the corresponding standard

    template U-shaped slot, adjust the indicator to zero position, and tighten the bezel locking screw.

2. The measuring tip is placed in the V-shaped groove of the standard template, the indicating value should be the same as

    the U-shaped groove, if the indicating value is different, the value table should not exceed 0.013mm, if greater than the value,

    indicating that the measuring head is easy is damage, the measuring head should be replaced.

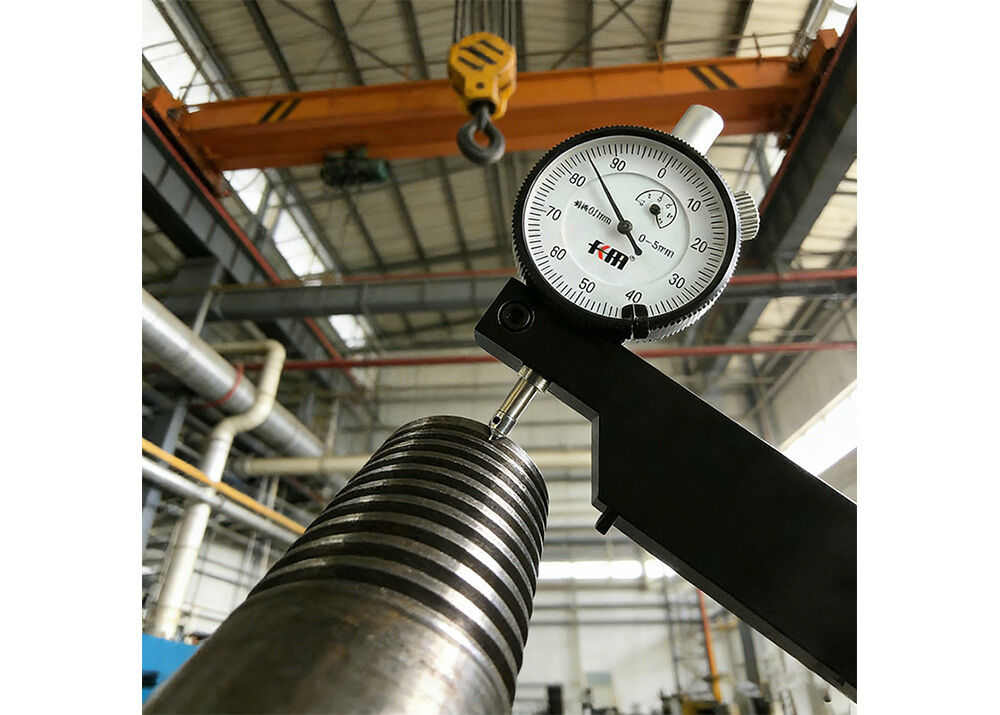

3. Place the measuring point of the calibrated internal thread height measuring instrument in the thread groove to be measured,

    and the anvil is close to the adjacent thread top, and then the oil pipe external thread height measuring instrument makes a

small arc swing on both sides of the position perpendicular to the cone, and the maximum negative value or the minimum

positive value should be the thread height error.

Applications:

Oil pipe thread instruments are widely used in the oil industry for measuring geometric accuracy of pipe threads for oil pipes,

such as casing pipe, oil pipe, pipe line and drill pipe.
