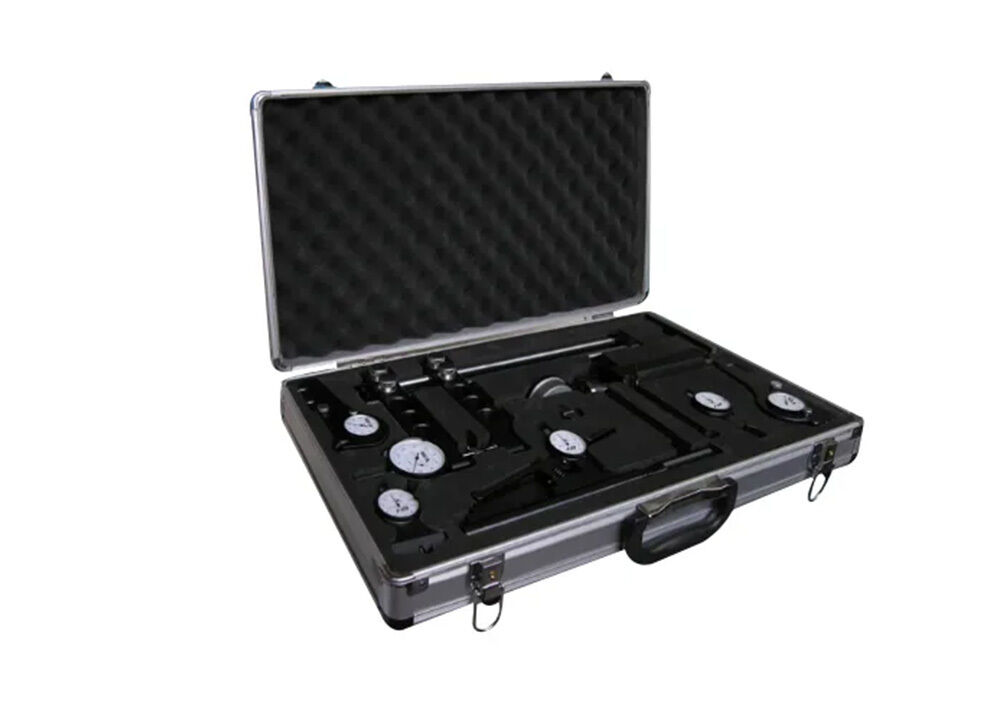

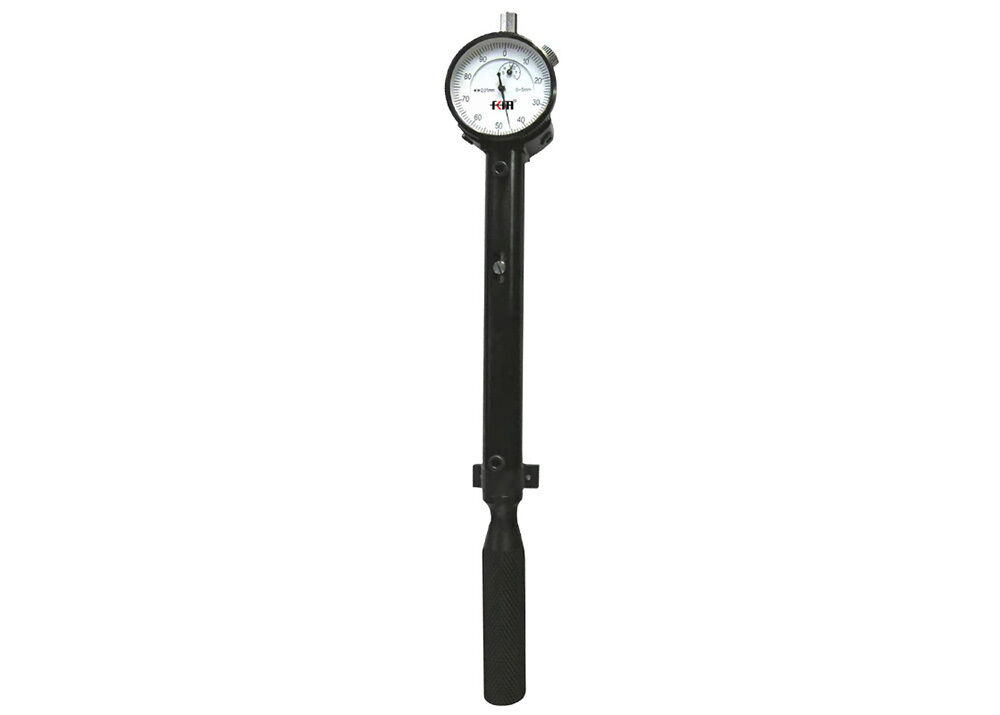

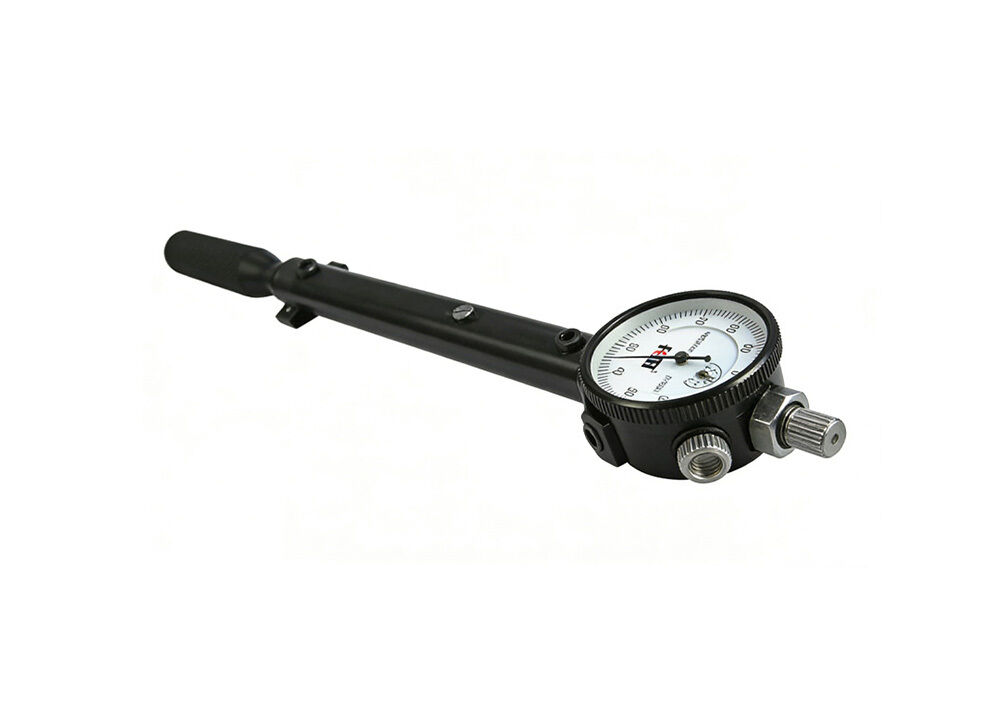

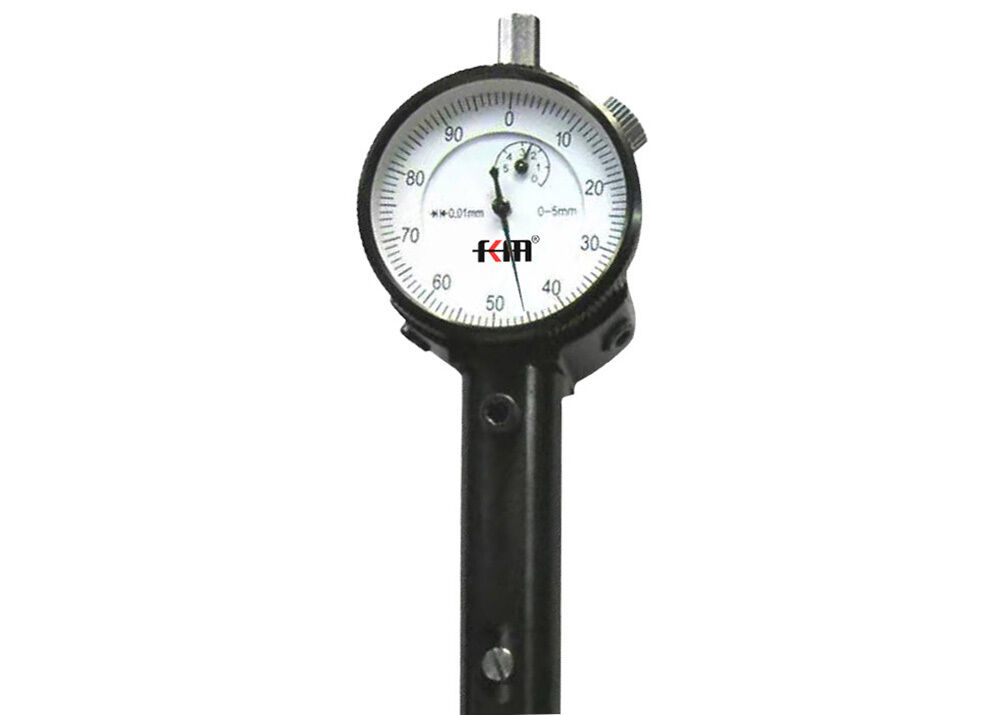

High Precision Measuring Device 2mm Range Coupling Thread Concentricity Gauge for Oil Industry

High Precision Measuring Device 2mm Range Coupling Thread Concentricity Gauge for Oil Industry

Quick Detail:

1.Used to measure coaxiality deviation between the thread axis of tubing, casing, coupling

   and the central axis for the API Spec 5B standard threads.

2. Select the proper contact point for your particular measurement requirement.

Specification:

Packing&Shipping:

Company Profile:

Precautions:

1. According to the specifications of the thread to be measured, place the measuring tip in the corresponding standard

    template U-shaped slot, adjust the indicator to zero position, and tighten the bezel locking screw.

2. The measuring tip is placed in the V-shaped groove of the standard template, the indicating value should be the same as

    the U-shaped groove, if the indicating value is different, the value table should not exceed 0.013mm, if greater than the value,

    indicating that the measuring head is easy is damage, the measuring head should be replaced.

3. Place the measuring point of the calibrated internal thread height measuring instrument in the thread groove to be measured,

    and the anvil is close to the adjacent thread top, and then the oil pipe external thread height measuring instrument makes a

small arc swing on both sides of the position perpendicular to the cone, and the maximum negative value or the minimum

positive value should be the thread height error.

Applications:

Oil pipe thread instruments are widely used in the oil industry for measuring geometric accuracy of pipe threads for oil pipes,

such as casing pipe, oil pipe, pipe line and drill pipe.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
