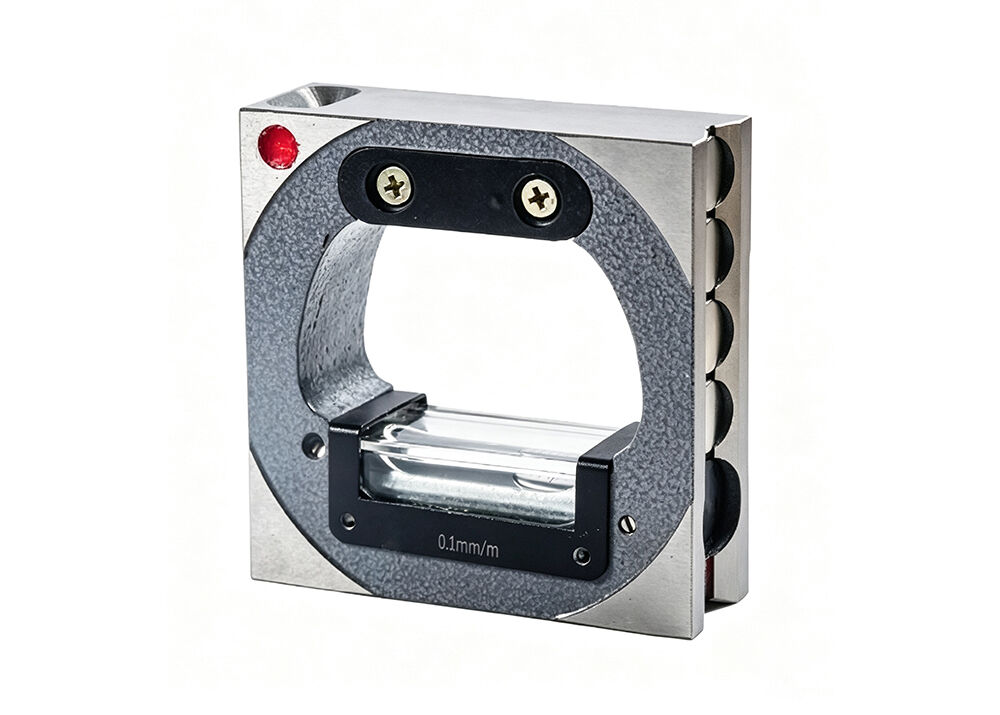

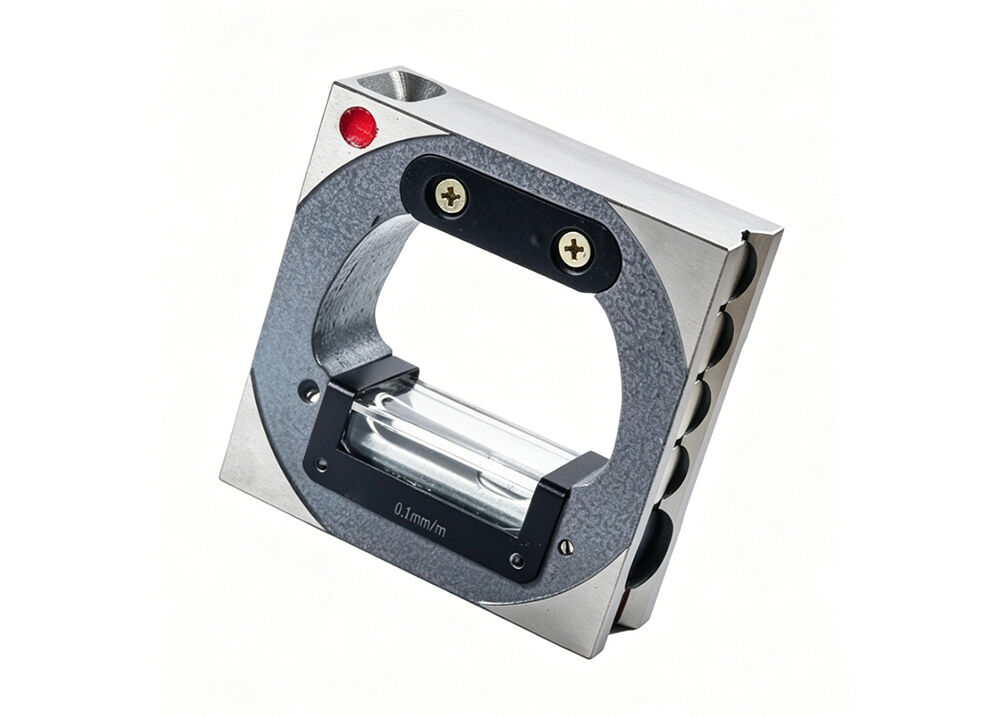

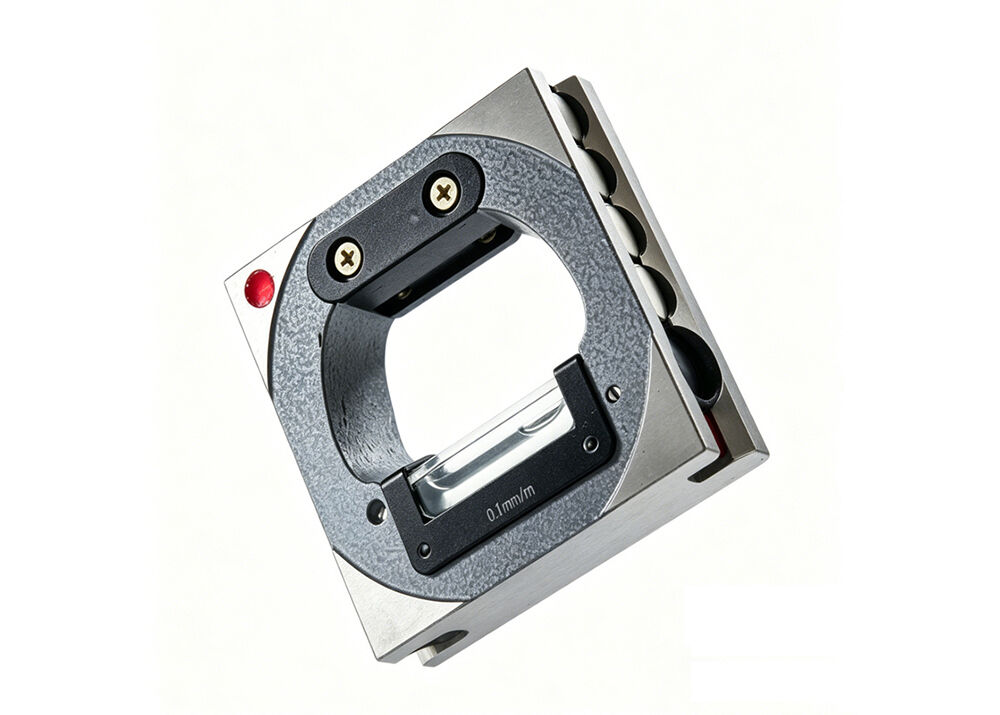

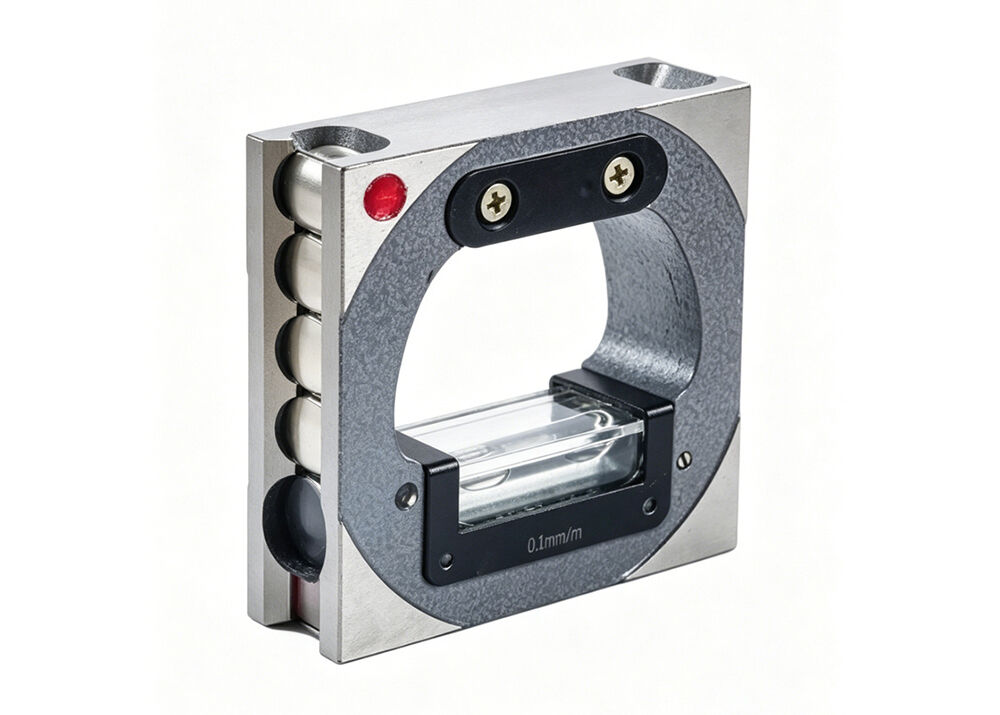

Adsorbable Magnetic Block Level High Stability Magnetic Spirit Level for Vertical & Cylindrical Surface Measurement

Adsorbable Magnetic Block Level High Stability Magnetic Spirit Level for Vertical & Cylindrical Surface Measurement

Description:

Magnetic frame level, also known as magnetic machinist level, is a precision bubble spirit level designed for machinery alignment work. Widely used to inspect the straightness of machine tool guide rails and verify the precision of horizontal and vertical installation positions for industrial equipment.

Precision level consists of sturdy cast body, main level vial, auxiliary vial, magnetic assembly and zero adjustment mechanism. The built-in zero adjustment device allows flexible, convenient calibration of the zero position to maintain consistent measuring accuracy during long-term workshop use.

Equipped with a switchable magnetic function, the magnet can be turned ON or OFF via control switch. It can be firmly adsorbed onto vertical metal planes as well as cylindrical surfaces without slipping during measurement. We supply two types: square magnetic frame level and right-angle magnetic level to satisfy different on-site measurement requirements. Available sizes: 100mm and 200mm with graduation of 0.02-0.05mm/m.

Quick Detail:

1.The level is mainly used to inspect the straightness of guide rails of various machine tools and other equipment,

   as well as the accuracy of horizontal and vertical installation positions.

2.This instrument is mainly composed of the main body, main level vial, auxiliary level vial, magnet and zero adjustment

   device, featuring an adjustable structure. The zero position of the level can be adjusted flexibly and conveniently via the

   zero adjustment device.​

3. Compared with ordinary frame levels, the side working surface of the right-angle magnetic level is magnetic, and

    the magnetic function can be switched on or off via a control switch. It can be freely adsorbed on vertical planes or

    cylindrical surfaces for measurement, staying firmly fixed without slipping. It delivers accurate measurement

    and is easy to operate.

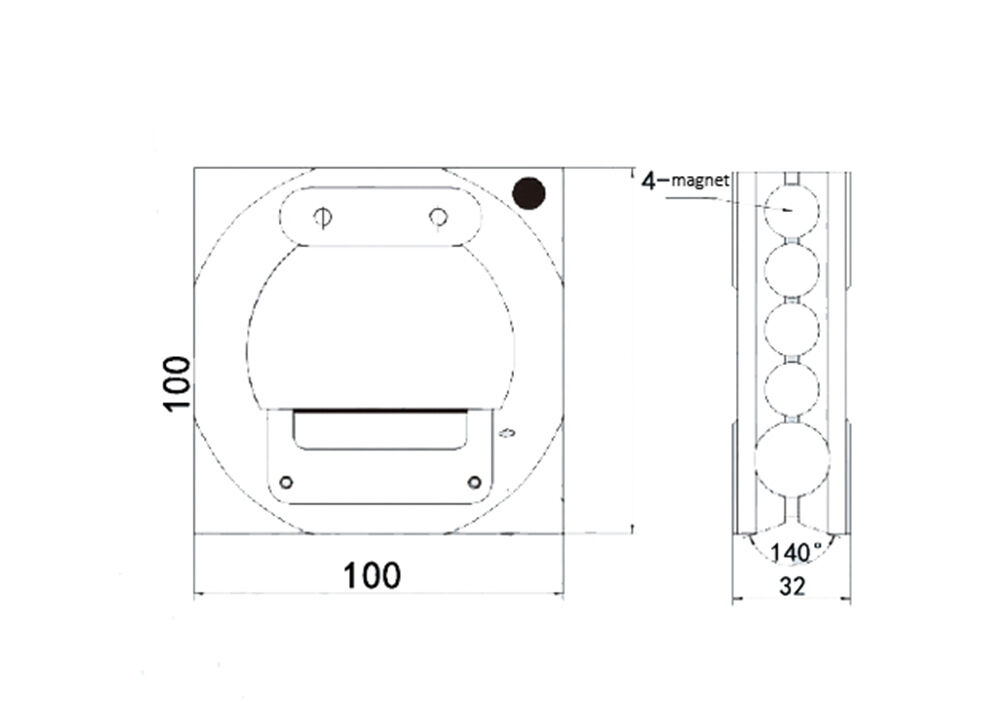

Specification:

Product Highlights:

1.Switchable Magnetic Adsorption Base

Built-in controllable magnet, magnetic force can be switched ON/OFF freely. It firmly adheres to vertical metal planes and cylindrical surfaces without slipping during measurement.

2.Convenient Zero Adjustment Mechanism

Comes with zero adjustment device. Operators can flexibly calibrate the zero position easily to sustain stable measuring accuracy over long-term usage.

3.Dual Level Vial Structure

Equipped with main level vial and auxiliary level vial, supporting reliable horizontal and vertical alignment inspection on site.

4.Two Types & Multiple Sizes Optional

Available in square frame magnetic level and right-angle magnetic level. Specifications include 100mm and 200mm with graduation of 0.02~0.05mm/m.

5.Ideal Precision Alignment Tool

Specially designed for checking guide rail straightness, horizontal and vertical installation precision of machine tools, molds and various industrial equipment.

Applications:

Frame spirit has a wide range of applications in construction, roads, machinery manufacturing, libraries, stadiums

and other engineering construction. The specific uses are as follows:

1. Landscape design: when designing landscapes such as gardens, parks, and squares, it is necessary to consider the

    horizontality and verticality of the ground to ensure the beauty and stability of the landscape.

2. Building construction: in the process of building construction, it is necessary to measure the horizontality and

    verticality of walls, floors, roofs, etc., to ensure the stability and stability of the building.

3. Road construction: during road construction, the levelness and slope of the road surface need to be measured

    to ensure the smooth flow of the road.

4. Machinery manufacturing: in the machining process, the horizontality and verticality of the machine bed need to be

    measured to ensure the accuracy and quality of the machining.

5. Library: when arranging bookshelves in the library, it is necessary to measure the horizontality and verticality of the

    shelves to ensure that they cannot be tilted and affect the arrangement and borrowing of books.

6. Stadiums: in the construction of stadiums, it is necessary to measure the horizontality and verticality of the courts,

    running tracks, and equipment to ensure the safety of athletes and the fairness of the competition.

FAQ:

Q1: What are the main components of this magnetic frame level?
A: It is constructed with a robust cast main body, main level vial, auxiliary level vial, magnetic assembly and zero‑adjustment mechanism. The adjustable zero‑setting structure supports convenient on‑site calibration.

Q2: How does the switchable magnetic function work?
A: It has a built‑in controllable magnet with a physical switch. You can turn magnetic force ON or OFF freely. When switched on, the level firmly adheres to vertical metal planes and cylindrical surfaces without slipping during measurement; switch off for easy removal.

Q3: What is the advantage compared with ordinary frame levels?
A: Conventional frame levels need manual holding during vertical‑surface measurement. Our magnetic frame level can be adsorbed on vertical metal surfaces and cylindrical workpieces, freeing your hands for more stable readings, improving measuring efficiency and repeatability.
