Description:

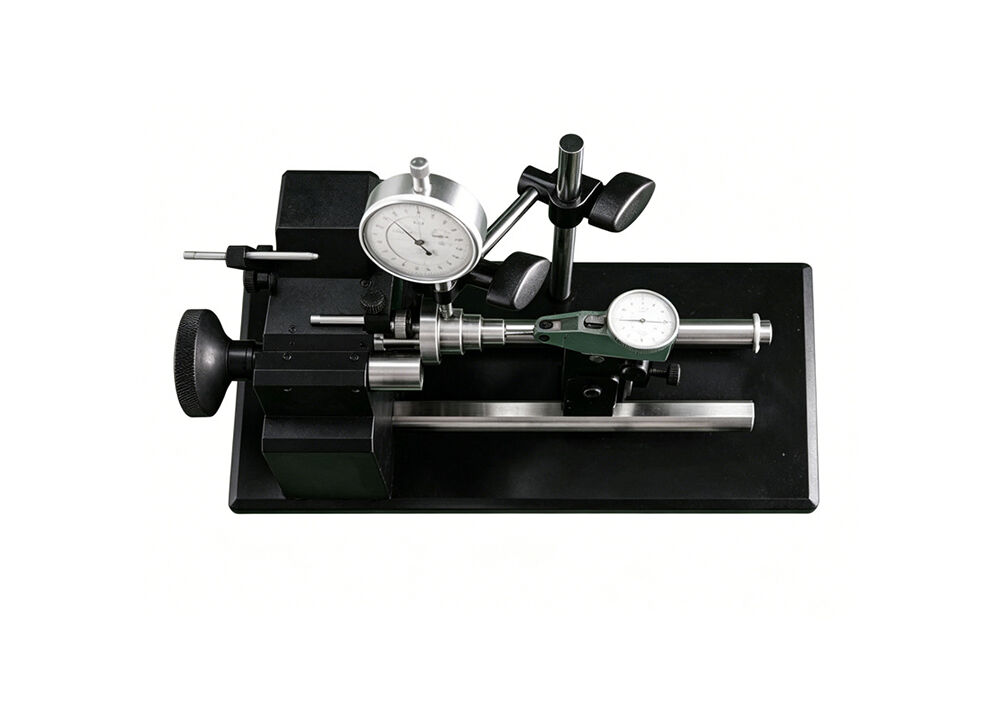

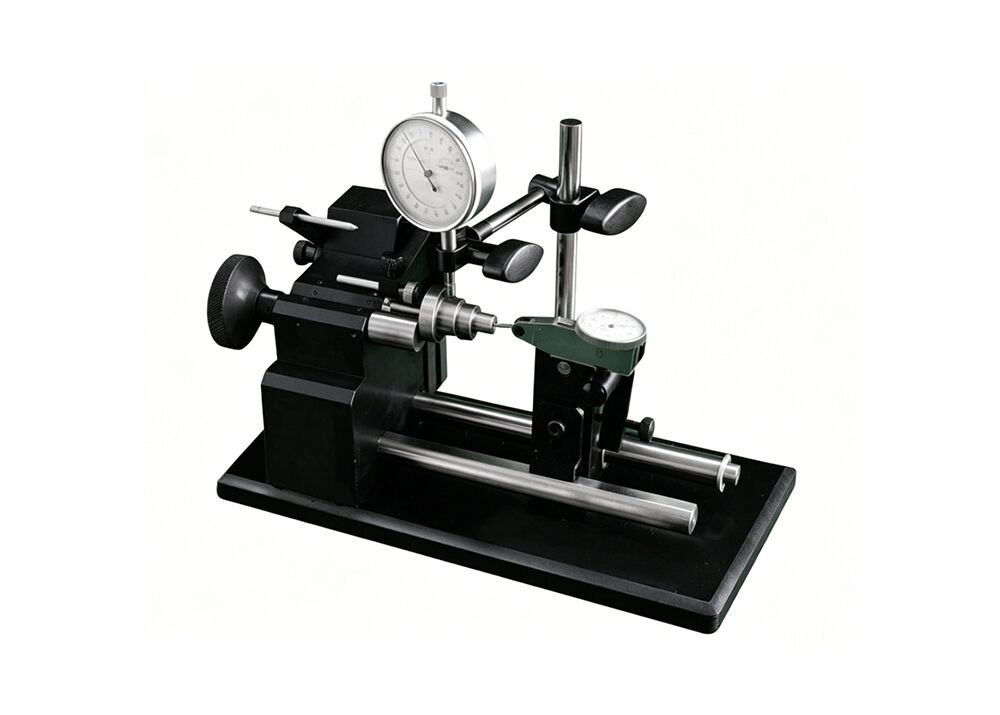

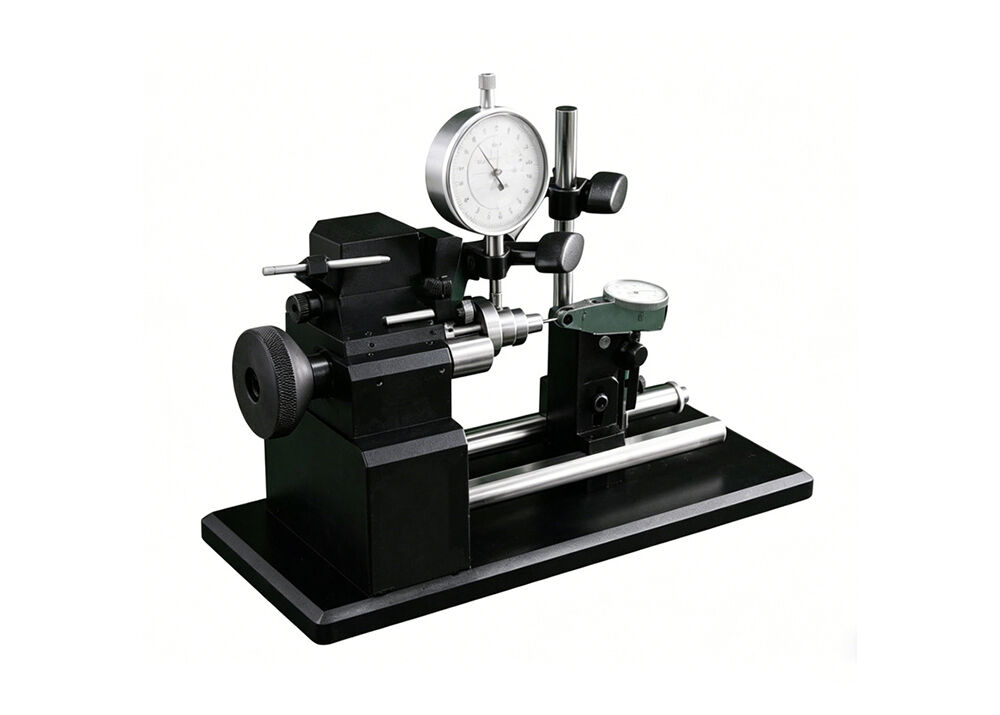

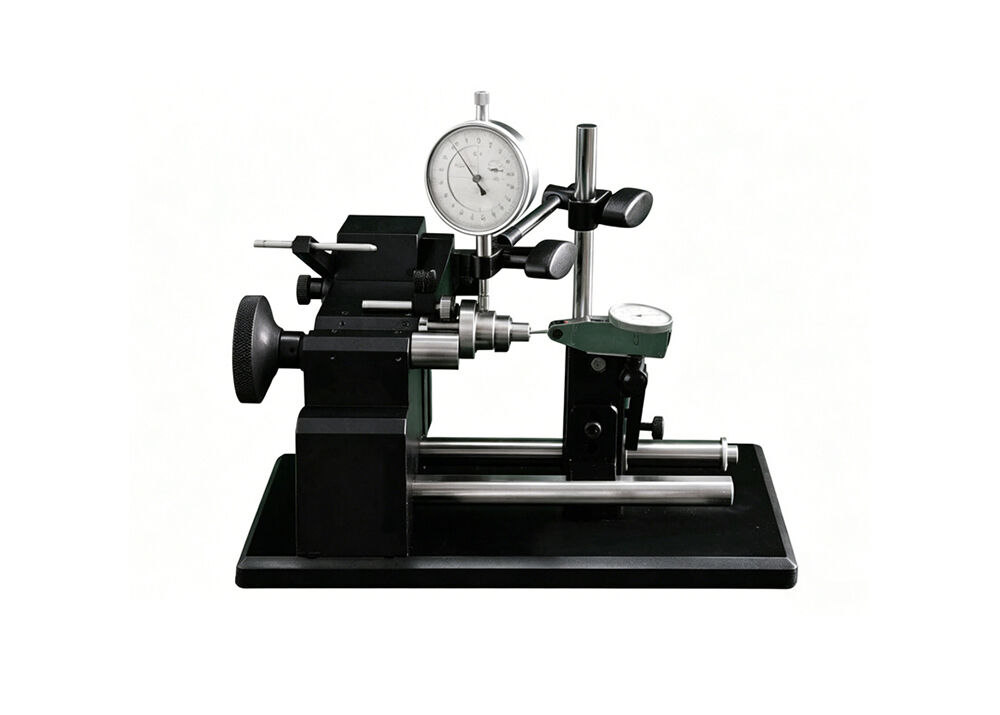

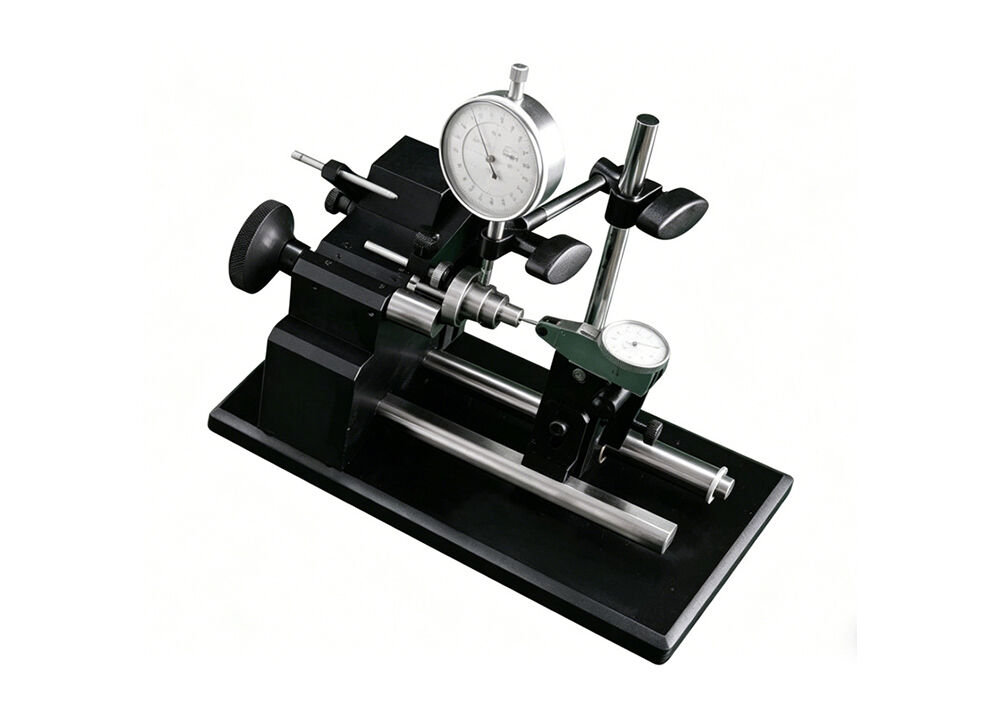

Professional concentricity tester compatible with dial indicators and lever indicators for immediate deployment. This versatile concentricity measuring equipment delivers comprehensive measurement capabilities, including coaxiality, concentricity, circular runout, roundness and end-face variation, enabling precise geometric evaluation for cylindrical workpieces, shafts and tubular components.

Available in manual operation and motorized power drive models, our concentricity measuring instrument covers workpiece diameters ranging from 3-125mm up to 20-102mm, with measurement accuracy up to ≤0.005mm. It supports precision inspection of outer diameter, inner diameter and multi-point dimensional parameters, perfectly suited for quality control workshops, metrology labs and petroleum tubing inspection.

Mount your dial gauge onto the adjustable indicator stand; rotate the specimen steadily to capture runout and eccentricity data efficiently. The rigid base guarantees stable positioning during repeated testing.

Quick Detail:

1. Accuracy measurement of roundness, concentricity, circular runout, and end-face variation.
2. Precision measurement of both outer and inner diameter parameters.
3. Precision measurement of multi-point parameter.

Specification:

Product Highlights:

1.Multi-functional Precision Measurement

Capable of testing coaxiality, concentricity, circular runout, roundness and end-face variation to complete geometric tolerance inspection for cylindrical and tubular workpieces.

2.Two Operation Configurations Optional

Manual drive and power motorized drive versions are available, covering workpiece diameters from 3 mm to 102 mm to satisfy diverse inspection demands.

3.High Measuring Accuracy

Stable testing precision reaches ≤0.005mm; supports outer diameter, inner diameter and multi-point parameter measurement for strict quality control standards.

4.Compatible with Standard Indicators

Comes with adjustable mounting stand, perfectly fits dial indicators and lever test indicators for convenient on-site measurement setup.

5.Robust Structure for Wide Industry Use

Solid base ensures reliable repeated measurement. Ideal for shafts, automotive parts, mold components, drill pipes and petroleum tubing inspection.

FAQ:

Q1: What parameters can this concentricity tester measure?
A1: It can test coaxiality, concentricity, circular runout, roundness and end-face variation, and realize precision measurement of outer diameter, inner diameter and multi-point dimensional parameters of workpieces.
Q2: What types of indicators is this concentricity tester compatible with?
A2: It is compatible with dial indicators and lever indicators. It is equipped with an adjustable indicator stand for quick on-site installation and deployment.
Q3: What are the available models of the concentricity tester?
A3: Two configurations are optional: manual operation model and motorized power drive model, to meet different inspection requirements.
