Throat Depth 30mm Stainless Steel Digital Thickness Gauge Thickness Measuring Tools

Throat Depth 30mm Stainless Steel Digital Thickness Gauge Thickness Measuring Tools

Products - Thickness Gauges - Digital Thickness Gauges
  • Highlight

    Throat Depth 30mm Digital Thickness Gauge

    ,

    Stainless Steel Digital Thickness Gauge

    ,

    Throat Depth 30mm Thickness Measuring Tools

  • Warranty
    One Year
  • Measurement
    Metric/Inch
  • Material
    Stainless Steel
  • Range
    0-12.7mm/0-0.5′′
  • Resolution
    0.01mm/0.0005′′
  • Throat Depth
    30mm
  • Application
    Measure The Thickness Of Paper, Leather, Rubber
  • Feature
    With Convenient Grip Handle
  • Measuring Faces
    Flat Or Ball Probe

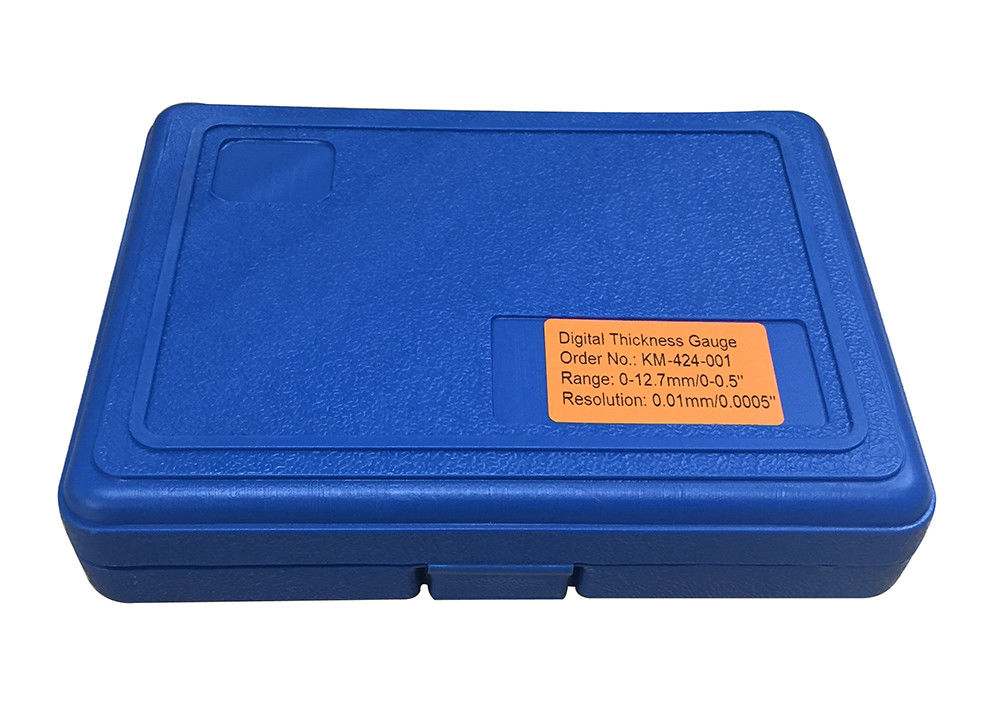

  • Package
    ABS Case
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-424-001
  • Packaging Details
    Wooden Case 19*15*4cm/Piece 0.40kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

Throat Depth 30mm Stainless Steel Digital Thickness Gauge Thickness Measuring Tools

  • Throat Depth 30mm Stainless Steel Digital Thickness Gauge Thickness Measuring Tools
  • Throat Depth 30mm Stainless Steel Digital Thickness Gauge Thickness Measuring Tools
  • Throat Depth 30mm Stainless Steel Digital Thickness Gauge Thickness Measuring Tools
  • Throat Depth 30mm Stainless Steel Digital Thickness Gauge Thickness Measuring Tools
Get Price Contact Now

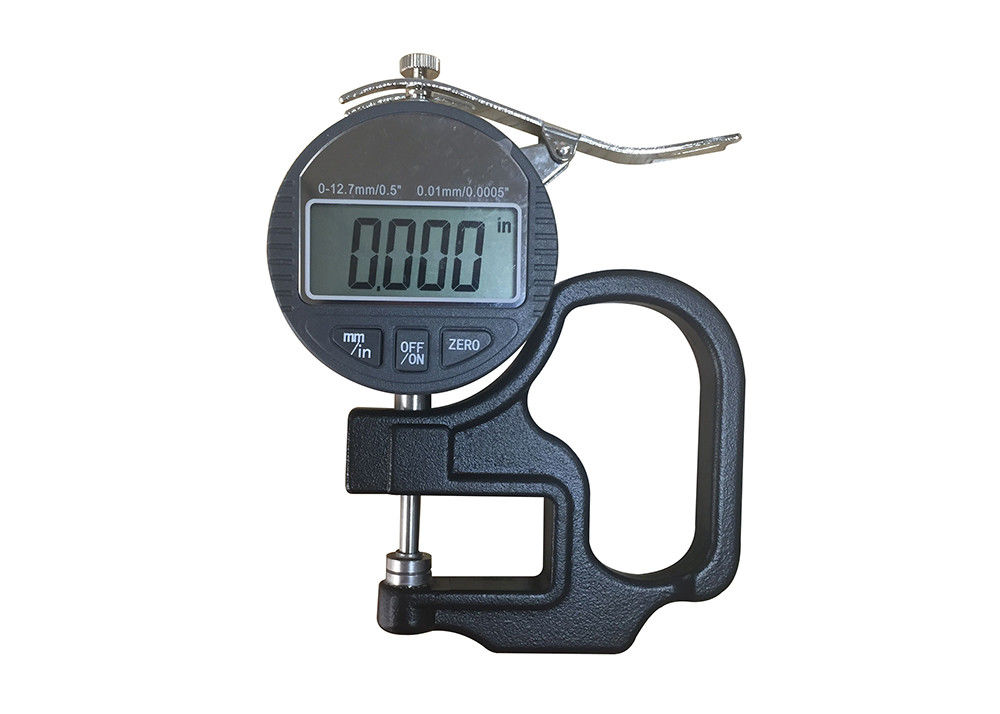

Throat Depth 30mm Stainless Steel Digital Thickness Gauge
0-12.7mm/0-0.5″ Digital Thickness Measuring Tools
Key Features
  • Large LCD display for clear readings
  • Zero-setting capability at any position
  • Inch/Metric unit conversion
  • Convenient power ON/OFF function
  • Ergonomic grip handle for quick measurements
  • Lifting lever for dial indicator
  • Multiple measuring face options for diverse applications
  • Choice of steel or ceramic measuring faces
  • Customizable measuring depth available

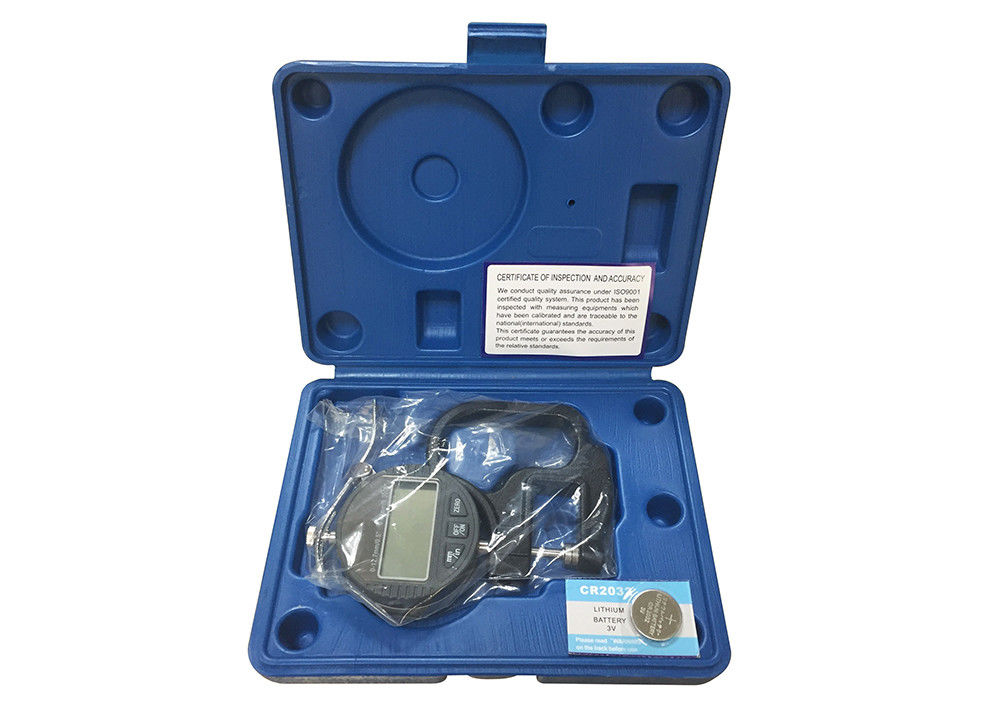

  • Includes protective fitted case
Product Description
Our precision digital thickness gauge features a direct-reading digital display with automatic metric/inch conversion, eliminating manual reading errors and improving measurement efficiency. Available in measuring ranges from 0-12.7mm (0-0.5") up to 0-50mm (0-2"), with measuring depths from 26mm to 500mm to suit various industrial applications. Custom measuring depths can be manufactured to specific requirements.
Engineered for stability and accuracy, this thickness gauge maintains consistent performance across diverse environmental conditions. The low-power design ensures extended battery life for continuous operation.
Technical Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-424-001 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 30mm
KM-424-002 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 60mm
KM-424-003 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 120mm
KM-424-004 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 200mm
KM-424-005 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 300mm
KM-424-006 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 400mm
KM-424-007 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 500mm
KM-424-101 0-25.4mm/0-1″ 0.01mm/0.0005″ 30mm
KM-424-102 0-25.4mm/0-1″ 0.01mm/0.0005″ 60mm
KM-424-103 0-25.4mm/0-1″ 0.01mm/0.0005″ 120mm
KM-424-104 0-25.4mm/0-1″ 0.01mm/0.0005″ 200mm
KM-424-105 0-25.4mm/0-1″ 0.01mm/0.0005″ 300mm
KM-424-106 0-25.4mm/0-1″ 0.01mm/0.0005″ 400mm
KM-424-107 0-25.4mm/0-1″ 0.01mm/0.0005″ 500mm
KM-424-201 0-50mm/0-2″ 0.01mm/0.0005″ 30mm
KM-424-202 0-50mm/0-2″ 0.01mm/0.0005″ 60mm
KM-424-203 0-50mm/0-2″ 0.01mm/0.0005″ 120mm
KM-424-204 0-50mm/0-2″ 0.01mm/0.0005″ 200mm
KM-424-205 0-50mm/0-2″ 0.01mm/0.0005″ 300mm
KM-424-206 0-50mm/0-2″ 0.01mm/0.0005″ 400mm
KM-424-207 0-50mm/0-2″ 0.01mm/0.0005″ 500mm
Usage Precautions
  • Handle this precision instrument carefully to prevent impacts or drops that could affect accuracy
  • Keep the gauge clean and protected from liquid exposure
  • Do not remove output port covers or touch terminals with metal objects
  • Avoid applying voltage or engraving on any part of the gauge
  • Remove batteries during extended storage periods
Industrial Applications
Iron & Steel: Metal sheet thickness measurement for ships, bridges, tanks
Chemical: Container and pipeline wall thickness measurement
Manufacturing: Thickness measurement for plastics, paper, leather, rubber, fabrics, glass
Aerospace: Aircraft and engine component measurements
Automotive: Body panels, brake discs, and other automotive parts
Company Information
Deko Corporation specializes in developing and manufacturing KM brand precision measuring tools in China. Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, and various other precision measurement instruments.
Business Terms
Trade Terms: FOB, CFR, CIF, EXW
Payment Methods: T/T, L/C, D/A, D/P, PayPal, Western Union
Customization: OEM services available
Warranty: 1-year guarantee with replacement service for defective parts
