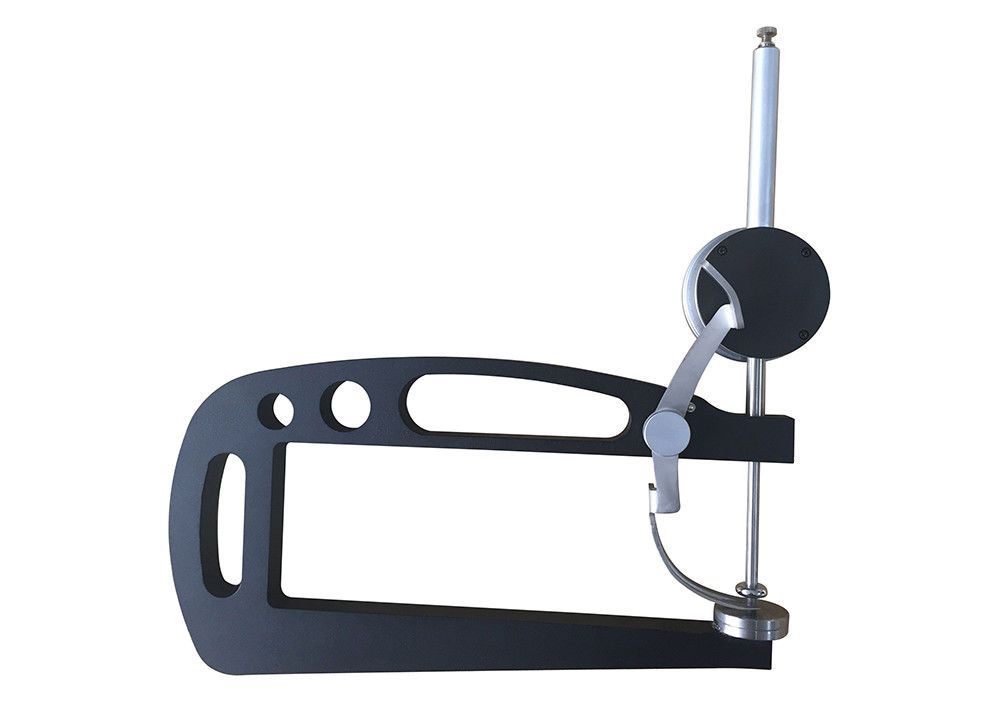

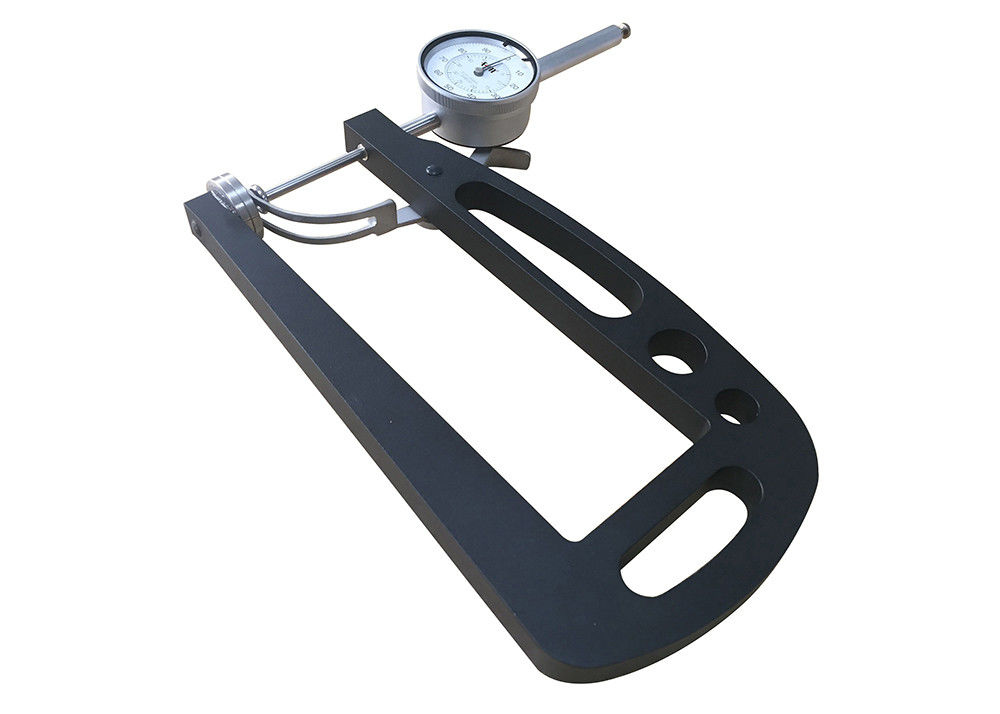

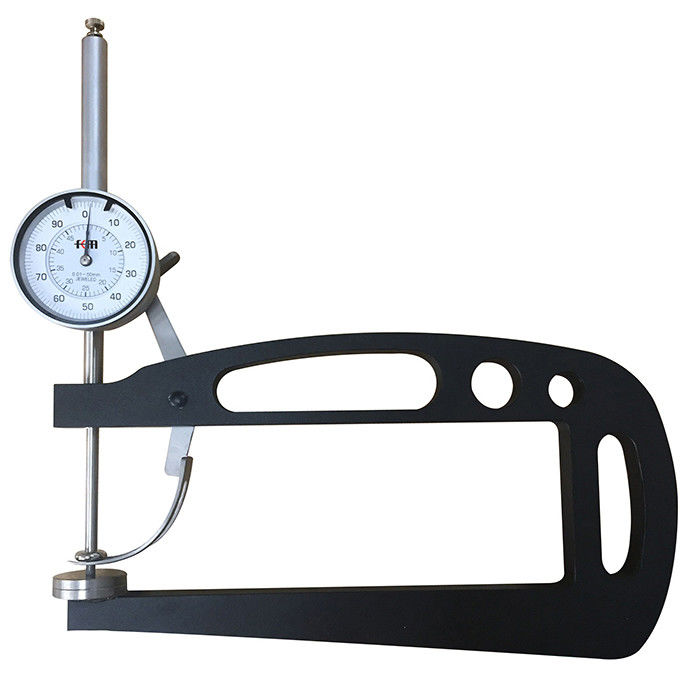

0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm

0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm

Products - Thickness Gauges - Dial Thickness Gauges
  • Highlight

    0-50mm dial indicator thickness gauge

    ,

    Throat Depth 200mm dial indicator thickness gauge

    ,

    0-50mm dial thickness

  • Warranty
    One Year
  • Material
    Stainless Steel
  • Measurement
    Metric
  • Range
    0-50mm
  • Graduation
    0.01mm
  • Throat Depth
    200mm
  • Application
    Measure The Thickness Of Paper, Leather, Rubber
  • Feature
    Lifting Lever For Dial Indicator
  • Measuring Faces
    Flat Or Ball Probe
  • Package
    Wood Case
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-422-095
  • Packaging Details
    Wood Case 40*25*5cm/Piece 1.50kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm

  • 0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm
  • 0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm
  • 0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm
  • 0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm
Get Price Contact Now
0-50mm Dial Indicator Thickness Gauge With Throat Depth 200mm
Quick Detail
  • The dial thickness gauges are used to measure the thickness of paper, leather, rubber, fabric, glass, plastic plate, etc.
  • Quick and efficient measurement with their convenient grip handle.
  • Lifting lever for dial indicator.
  • With various types of measuring faces available for wide range of applications.
  • Steel or ceramic material measuring face are optional.
  • Measuring depth can be customized base on requirement.

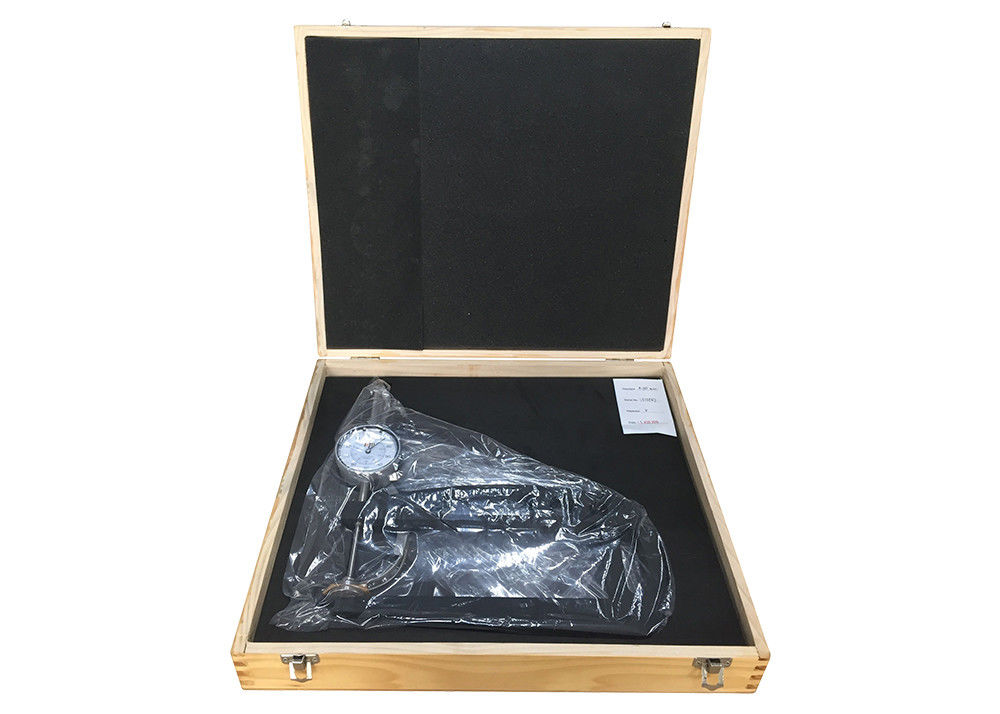

  • Supplied in fitted case.
Description
This dial thickness gauge is primarily used to measure the thickness of various materials including metal sheets, plastics, rubber, and paper. It features precision measurement with a wear-resistant, transparent dial indicator that has clear, easy-to-read scales.
Our dial thickness gauges offer measuring ranges from 0-10mm up to 0-50mm, with measuring depths available from 26mm to 500mm to accommodate different measurement applications. Custom measuring depths are available upon request.
These thickness gauges provide high-precision measurement capabilities to meet various precision measurement needs. Their stable mechanical structure ensures consistent measurement performance during use.
Specification
Order No. Measuring Range Graduation Measuring Depth
KM-422-051 0-10mm 0.01mm 26mm
KM-422-052 0-10mm 0.01mm 30 mm
KM-422-053 0-10mm 0.01mm 60mm
KM-422-054 0-10mm 0.01mm 120mm
KM-422-055 0-10mm 0.01mm 200mm
KM-422-056 0-10mm 0.01mm 300mm
KM-422-057 0-10mm 0.01mm 400mm
KM-422-058 0-10mm 0.01mm 500mm
KM-422-061 0-20mm 0.01mm 26mm
KM-422-062 0-20mm 0.01mm 30 mm
KM-422-063 0-20mm 0.01mm 60mm
KM-422-064 0-20mm 0.01mm 120mm
KM-422-065 0-20mm 0.01mm 200mm
KM-422-066 0-20mm 0.01mm 300mm
KM-422-067 0-20mm 0.01mm 400mm
KM-422-068 0-20mm 0.01mm 500mm
KM-422-071 0-25mm 0.01mm 26mm
KM-422-072 0-25mm 0.01mm 30 mm
KM-422-073 0-25mm 0.01mm 60mm
KM-422-074 0-25mm 0.01mm 120mm
KM-422-075 0-25mm 0.01mm 200mm
KM-422-076 0-25mm 0.01mm 300mm
KM-422-077 0-25mm 0.01mm 400mm
KM-422-078 0-25mm 0.01mm 500mm
KM-422-081 0-30mm 0.01mm 26mm
KM-422-082 0-30mm 0.01mm 30 mm
KM-422-083 0-30mm 0.01mm 60mm
KM-422-084 0-30mm 0.01mm 120mm
KM-422-085 0-30mm 0.01mm 200mm
KM-422-086 0-30mm 0.01mm 300mm
KM-422-087 0-30mm 0.01mm 400mm
KM-422-088 0-30mm 0.01mm 500mm
KM-422-091 0-50mm 0.01mm 26mm
KM-422-092 0-50mm 0.01mm 30 mm
KM-422-093 0-50mm 0.01mm 60mm
KM-422-094 0-50mm 0.01mm 120mm
KM-422-095 0-50mm 0.01mm 200mm
KM-422-096 0-50mm 0.01mm 300mm
KM-422-097 0-50mm 0.01mm 400mm
KM-422-098 0-50mm 0.01mm 500mm
Note: Ball and flat measuring face are optional, flat measuring face diameter from 10mm to 50mm are available
Precautions
  • The thickness gauge is a precision measuring tool, which should be used to prevent impact and fall, so as not to lose accuracy.
  • It should be kept clean to avoid water and other liquid substances from penetrating into the thickness gauge so as not to affect the normal use.
  • Do not apply voltage to any part of the thickness gauge, and do not use a pen to engrave, so as not to damage the gauge.
Applications
Iron and steel industry: metal sheet thickness measurement
Chemical industry: container and pipeline wall thickness
Manufacturing: plastic, paper, leather, rubber, fabric, glass
Aerospace: aircraft and engine parts
Automotive industry: body panels, brake discs
FAQ
Who are we?
Deko Corporation mainly dedicates to the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, level, etc.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM is available.
How about after-sales service?
One year warranty for all kinds of products. If you find any defective accessories when receive goods, we will ship your news parts or new product to replace. As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
