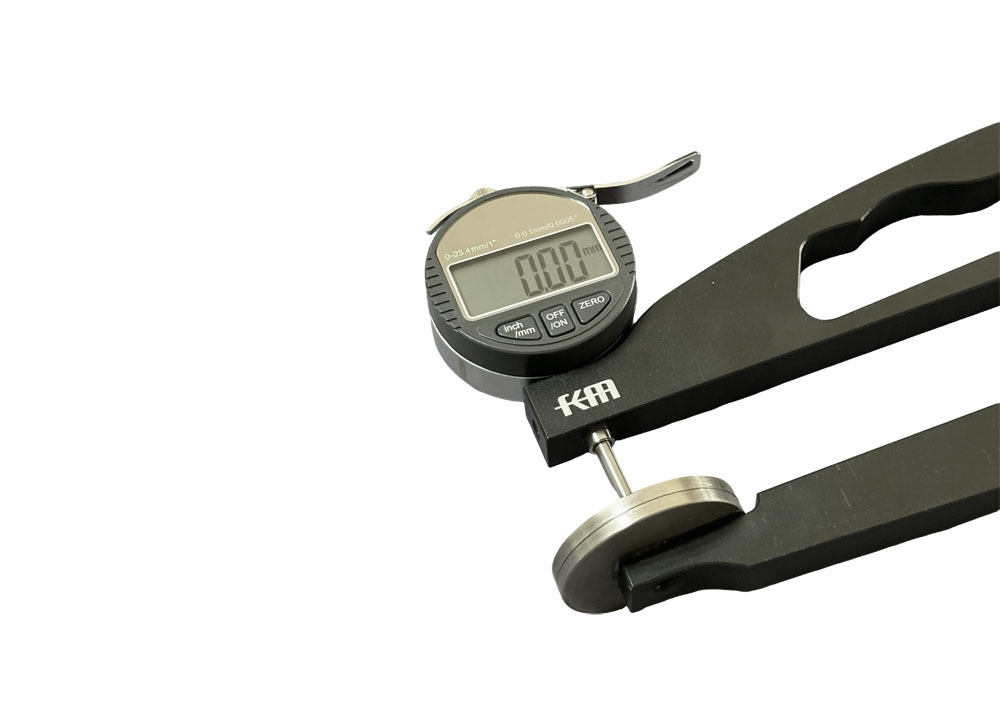

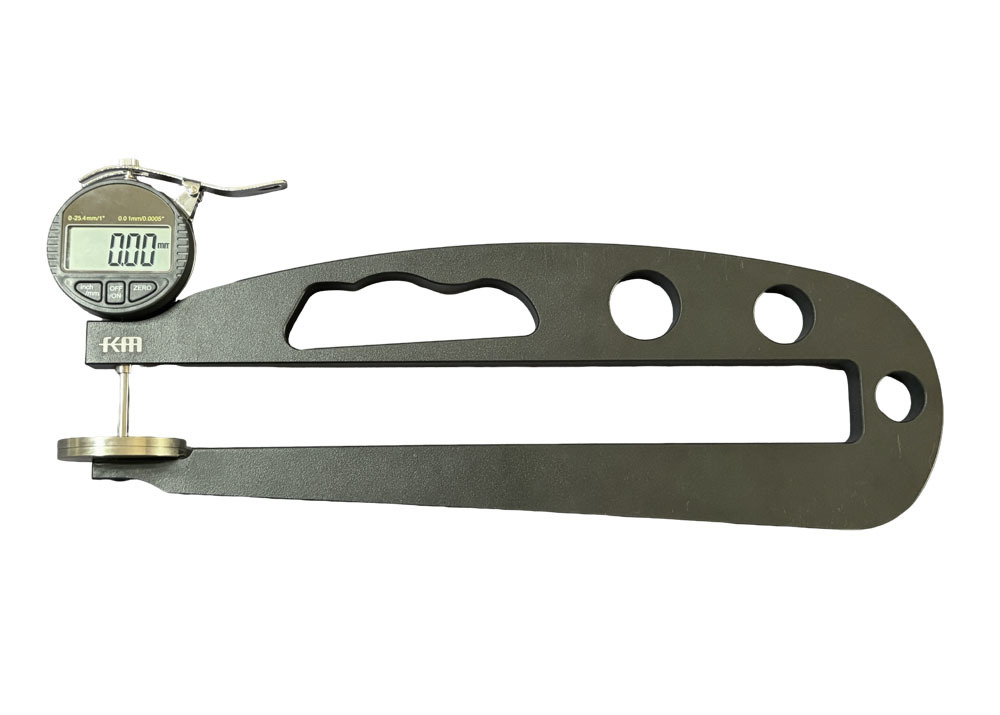

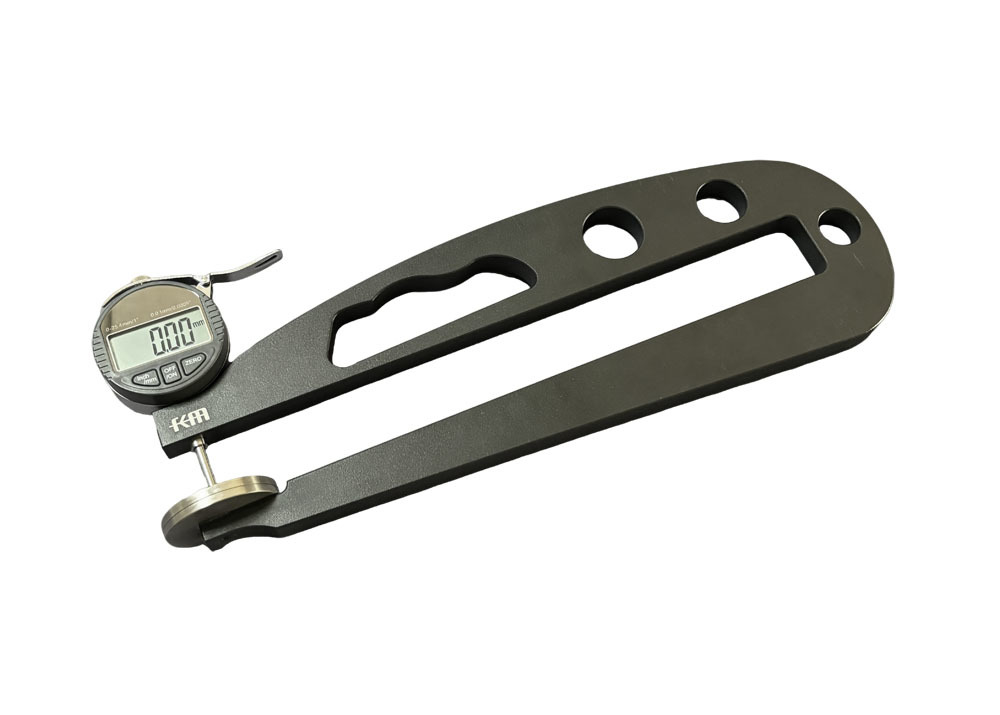

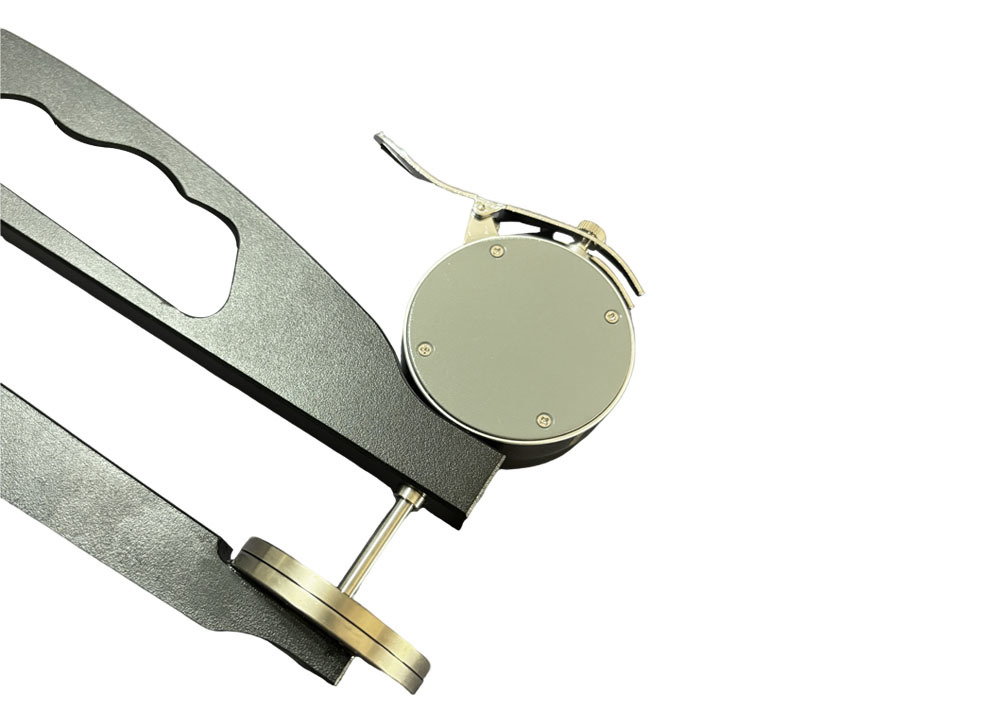

Optional Ceramic Measuring Face Measuring Depth 400mm Throat Digital Thickness Gauge with LCD Display
-
Highlight
ceramic measuring face thickness gauge
,digital thickness gauge with LCD
,400mm throat depth thickness gauge
-
WarrantyOne Year
-
MeasurementMetric/Inch
-
MaterialStainless Steel
-
Measuring FaceCeramic
-
Range0-12.7mm/0-0.5′′
-
Resolution0.001mm/0.00005′′
-
Throat Depth400mm
-
ApplicationMeasure The Thickness Of Paper, Leather, Rubber
-
FeatureWith Convenient Grip Handle
-
Measuring FacesFlat Or Ball Probe
-
PackageWooden Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-422-095
-
Packaging DetailsWooden Case 27*15*5cm/Piece 0.95kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Optional Ceramic Measuring Face Measuring Depth 400mm Throat Digital Thickness Gauge with LCD Display
Optional Ceramic Measuring Face Measuring Depth 400mm Throat Digital Thickness Gauge with LCD Display
High precision digital thickness gauge with optional ceramic measuring face and 400mm throat depth, featuring LCD display for clear readings.
Product Overview
The KM-422 series represents high precision digital thickness gauges offering 0.001mm/0.00005" resolution. Available in measuring ranges from 0-12.7mm/0-0.5" up to 0-50mm/0-2", with measuring depths from 26mm to 500mm to accommodate various measurement applications. Custom measuring depths are available upon request.
Engineered with a stable structural design, these gauges maintain high measurement accuracy and stability across diverse environmental conditions. The large digital display shows measurement results clearly, with automatic metric and inch system conversion to eliminate manual reading errors and enhance measurement efficiency.
Low-power design ensures extended operation without frequent battery replacement when using battery power.
Key Features
- Large LCD for easy reading
- Zero-setting at any position
- Inch/Metric conversion
- Power on/off functionality
- Quick and efficient measurement with convenient grip handle
- Lifting lever for dial indicator
- Various types of measuring faces for wide application range
- Optional steel or ceramic material measuring faces
- Customizable measuring depth based on requirements

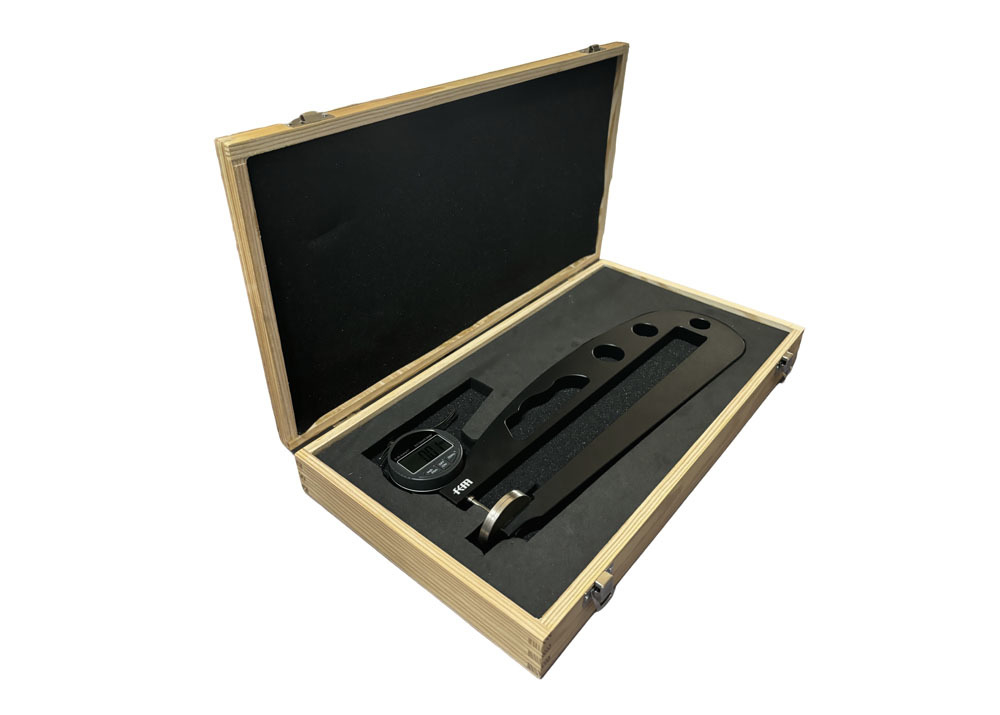

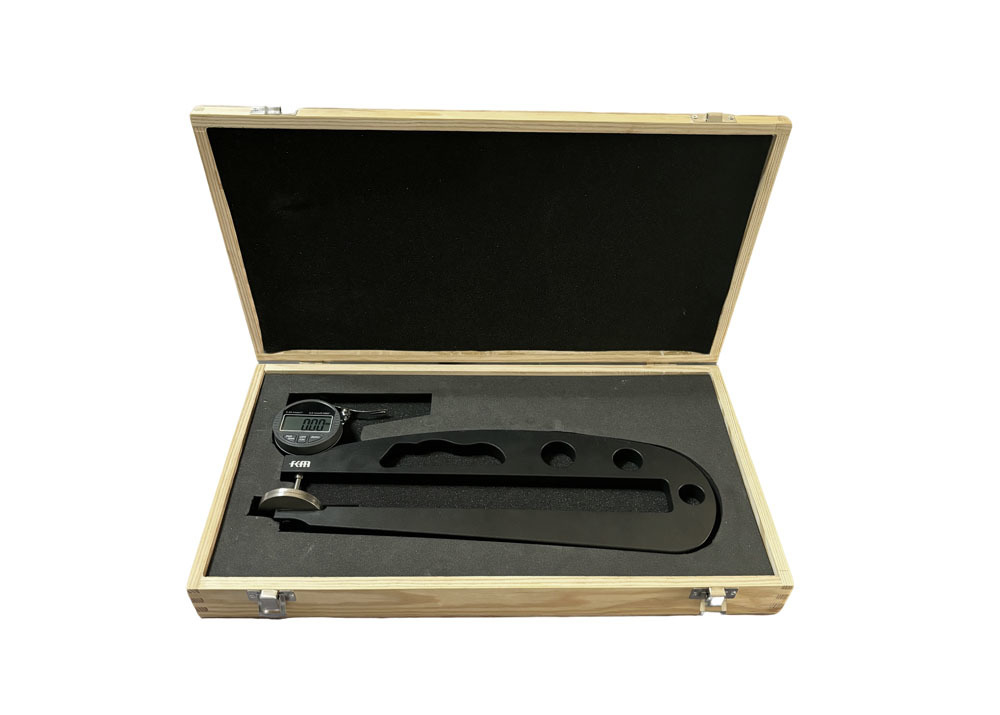

- Supplied in fitted case
Technical Specifications
| Order No. | Measuring Range | Resolution | Measuring Depth |
|---|---|---|---|
| KM-422-090 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | 30mm |
| KM-422-091 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | 60mm |
| KM-422-092 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | 120mm |
| KM-422-093 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | 200mm |
| KM-422-094 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | 300mm |
| KM-422-095 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | 400mm |
| KM-422-096 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | 500mm |
| KM-422-190 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | 30mm |
| KM-422-191 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | 60mm |
| KM-422-192 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | 120mm |
| KM-422-193 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | 200mm |
| KM-422-194 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | 300mm |
| KM-422-195 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | 400mm |
| KM-422-196 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | 500mm |
| KM-422-290 | 0-50mm/0-2″ | 0.001mm/0.00005″ | 30mm |
| KM-422-291 | 0-50mm/0-2″ | 0.001mm/0.00005″ | 60mm |
| KM-422-292 | 0-50mm/0-2″ | 0.001mm/0.00005″ | 120mm |
| KM-422-293 | 0-50mm/0-2″ | 0.001mm/0.00005″ | 200mm |
| KM-422-294 | 0-50mm/0-2″ | 0.001mm/0.00005″ | 300mm |
| KM-422-295 | 0-50mm/0-2″ | 0.001mm/0.00005″ | 400mm |
| KM-422-296 | 0-50mm/0-2″ | 0.001mm/0.00005″ | 500mm |
Industry Applications
- Iron and steel industry: Measuring thickness of metal sheets for ships, bridges, and oil tanks
- Chemical industry: Measuring wall thickness of containers, pipelines, and equipment
- Manufacturing: Measuring thickness of plastic products, paper, leather, rubber, fabric, and glass
- Aerospace: Measuring thickness of aircraft and engine components
- Automotive industry: Measuring thickness of automobile parts including body panels and brake discs
Usage Precautions
- Prevent impact and falls to maintain accuracy
- Keep clean and avoid liquid penetration
- Do not remove output port cover when not in use
- Avoid touching output terminals with metal devices
- Do not apply voltage or engrave with pens
- Remove batteries during long-term storage
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM is available.
Yes, OEM is available.
