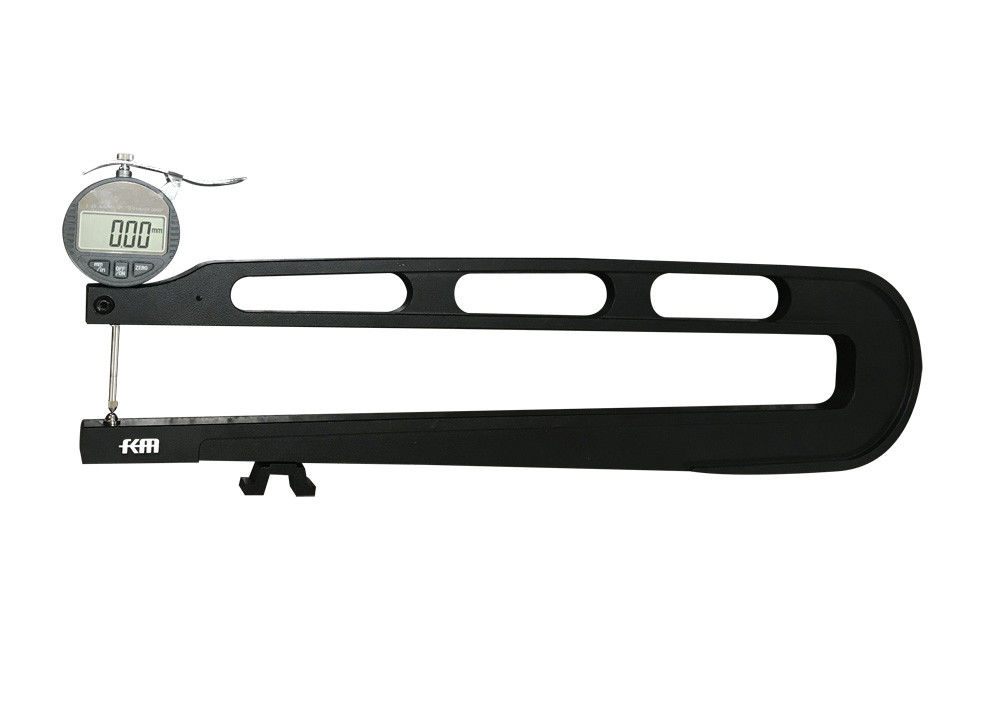

0-25.4mm Digital Thickness Gauge with Stable Structural Design and 500mm Measuring Depth
-
Highlight
500mm Digital Thickness Gauge
,25.4mm Digital Thickness Gauge
,Stable Structural Design Digital Thickness Gauge
-
WarrantyOne Year
-
MeasurementMetric/Inch
-
MaterialStainless Steel
-
Range0-25.4mm/0-1′′
-
Resolution0.01mm/0.0005′′
-
Throat Depth500mm
-
ApplicationMeasure The Thickness Of Paper, Leather, Rubber
-
FeatureWith Convenient Grip Handle
-
Measuring FacesFlat Or Ball Probe
-
PackageABS Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-424-107
-
Packaging DetailsWooden Case 77*27*4.5cm/Piece 2.88kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
0-25.4mm Digital Thickness Gauge with Stable Structural Design and 500mm Measuring Depth
0-25.4mm Digital Thickness Gauge with Stable Structural Design and 500mm Measuring Depth
Precision digital thickness gauge featuring 0-25.4mm measuring range and up to 500mm measuring depth for industrial applications.
Key Features

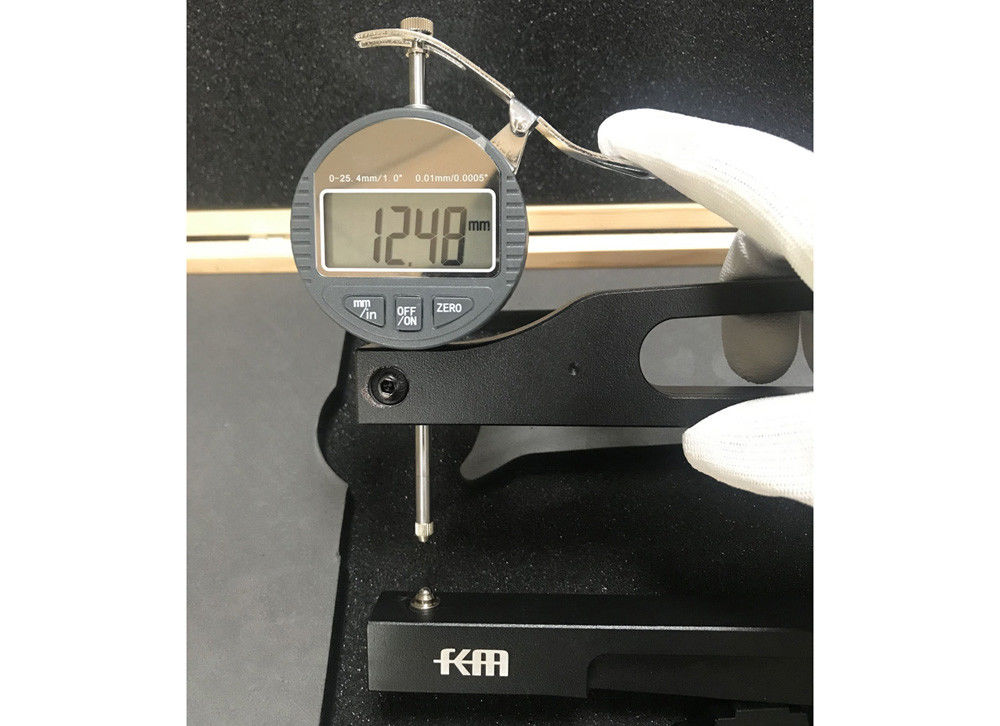

- Large LCD display for easy reading
- Zero-setting capability at any position
- Inch/Metric unit conversion
- Convenient grip handle for quick measurements
- Lifting lever for dial indicator
- Multiple measuring face types available
- Steel or ceramic measuring face options
- Customizable measuring depth based on requirements

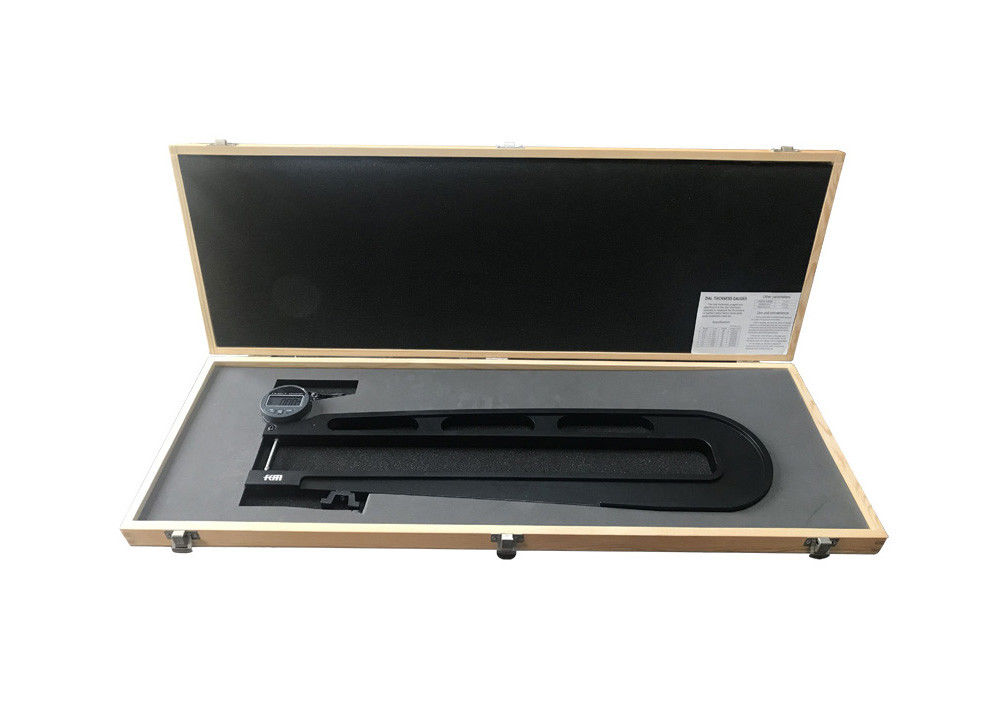

- Supplied in protective fitted case
Product Description
Our digital thickness gauge features a digital display that directly shows measurement results, with automatic metric and inch system conversion to eliminate manual reading errors and improve measurement efficiency.
Available in measuring ranges from 0-12.7mm/0-0.5" up to 0-50mm/0-2", with measuring depths from 26mm to 500mm to accommodate various applications. Custom measuring depths are available upon request.
The stable structural design ensures high measurement accuracy and reliability across diverse environmental conditions. Low-power design enables extended operation without frequent battery replacement.
Specifications
| Order No. | Measuring Range | Resolution | Measuring Depth |
|---|---|---|---|
| KM-424-001 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 30mm |
| KM-424-002 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 60mm |
| KM-424-003 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 120mm |
| KM-424-004 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 200mm |
| KM-424-005 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 300mm |
| KM-424-006 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 400mm |
| KM-424-007 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 500mm |
| KM-424-101 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 30mm |
| KM-424-102 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 60mm |
| KM-424-103 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 120mm |
| KM-424-104 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 200mm |
| KM-424-105 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 300mm |
| KM-424-106 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 400mm |
| KM-424-107 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 500mm |
| KM-424-201 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 30mm |
| KM-424-202 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 60mm |
| KM-424-203 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 120mm |
| KM-424-204 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 200mm |
| KM-424-205 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 300mm |
| KM-424-206 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 400mm |
| KM-424-207 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 500mm |
Usage Precautions
- Prevent impact and falls to maintain accuracy
- Keep clean and avoid liquid penetration
- Do not remove output port cover or touch terminals with metal devices
- Avoid applying voltage and do not engrave with pens
- Remove batteries during long-term storage
Industrial Applications
- Iron and steel industry: metal sheet thickness measurement
- Chemical industry: container and pipeline wall thickness
- Manufacturing: plastic, paper, leather, rubber, fabric, and glass materials
- Aerospace: aircraft and engine component thickness
- Automotive industry: body panels, brake discs, and other components
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
Dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW.
We support FOB, CFR, CIF, and EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
Yes, OEM services are available.
How about after-sales service?
All products include a one-year warranty. Defective parts or products will be replaced promptly.
All products include a one-year warranty. Defective parts or products will be replaced promptly.
