Highlight
0-1.969′′ electronic height gage
,Electronic Height Gauges Resolution 0.0005mm
,0-1.969′′ Electronic Height Gauges
-
WarrantyOne Year
-
TypeDigital Height Gauge
-
MaterialCeramic
-
MeasurementMetric/Inch
-
Range0-50mm/0-1.969′′
-
Resolution0.0005mm/0.001mm
-
Precision0.002mm
-
Measure MethodAutomatic
-
Measuring Speed5000mm/S
-
PackagePolyfoam+Paper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-432-50
-
Packaging DetailsPolyfoam+Paper Box 25*25*40cm/Piece 12.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

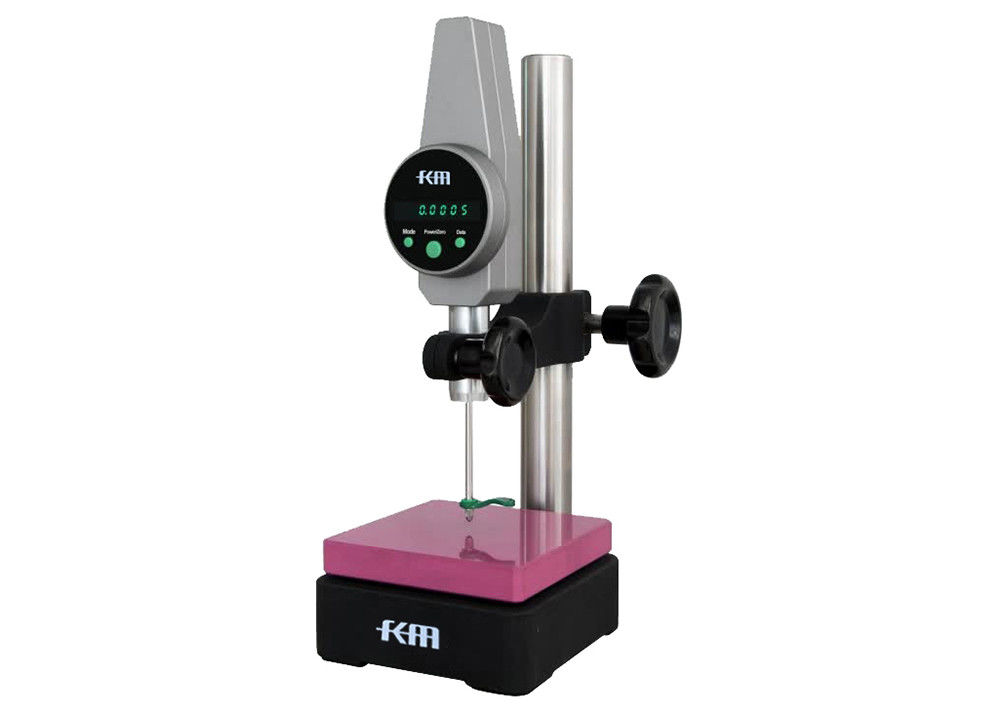

0-50mm Superior Precision Digital Height Gauge
0-50mm Superior Precision Digital Height Gauge
Quick Features
- Resolution: 0.0005mm/0.001mm
- Stands available in ceramic, steel or granite
- Wide variety of probe tips for most applications
- Zero set at any position

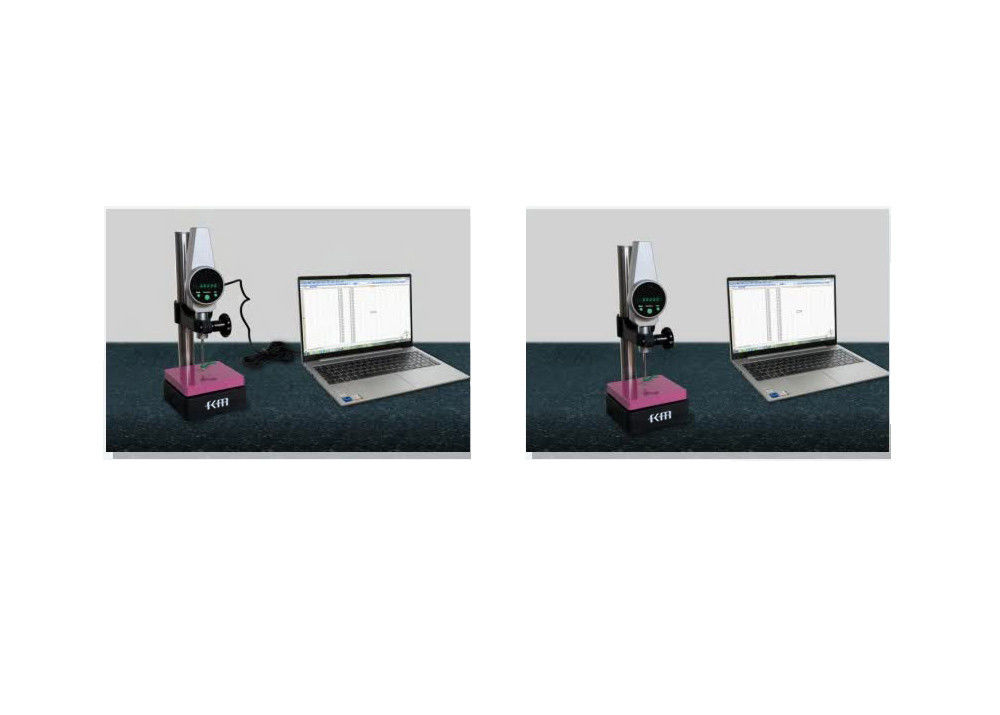

- Optional cable or wireless data transmission
- Customizable column clamp arm size
- Mobile power supply option available
- Supplied in fitted case
Product Description
Our KM-432 series digital height gauge offers multiple measurement functions including height, depth, thickness, deep hole, outer diameter, step, flatness and parallelism measurement. Features stable precision and high-speed measurement with smooth slider motion. The green high-brightness digital tube provides clear, comfortable viewing even during extended operation.

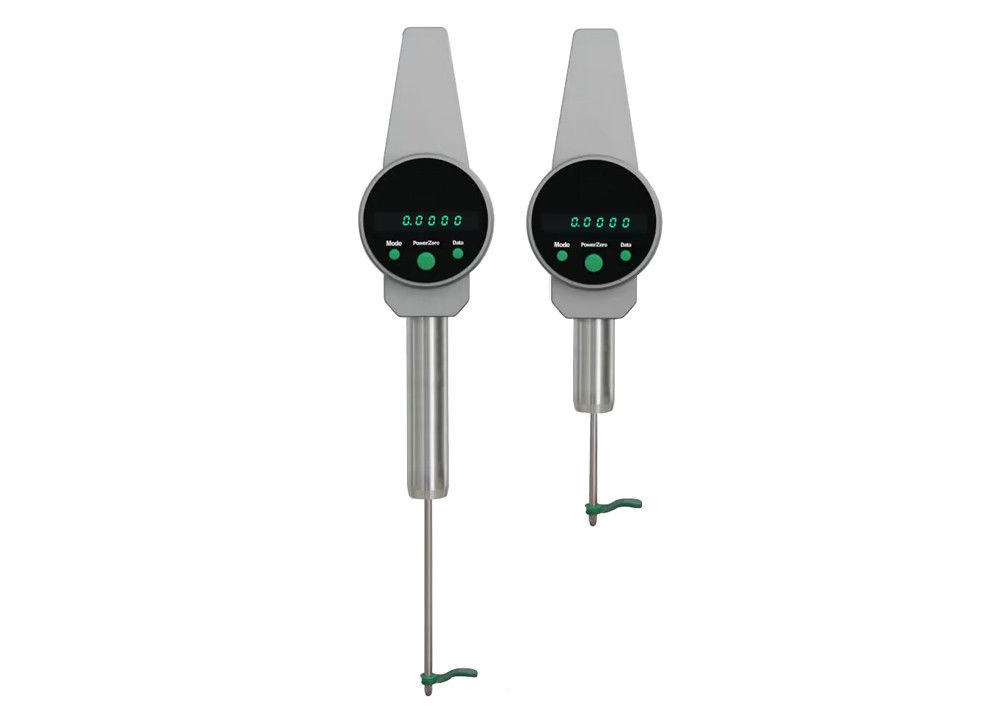

Includes digital indicator, gauge stand, stylus with ball contact point, power adapter, and two spindle lift handles. Optional accessories include special-shaped stylus and power bank.
Technical Specifications
| Order No. | Range | Accuracy @20° | Repeatability @20° | Gauge Stand | Measuring Force | Weight | Base Material |
|---|---|---|---|---|---|---|---|
| KM-432-50 |
0-50mm/0-1.969" |
≤0.002mm | ≤0.0005mm | 130mm×130mm | ≤1.2N | 35.0kg | Ceramic |
| KM-432-100 | 0-100mm/0-3.937" | ≤0.003mm | ≤0.0001mm | 130mm×130mm | ≤1.6N | 35.0kg | Ceramic |
Operation Precautions
- Do not rotate the display casing
- Exercise caution when loosening the fixing knob to prevent dropping the digital indicator
- Keep buttons free from oil and corrosive substances
- Press buttons with finger surface to avoid damage
- Maintain clean working plate during measurement
- After measurement, lift digital indicator - avoid prolonged pressure on workbench
Applications
Ideal for precision measurements in mold parts, precision automation components, automotive engine parts, electronic connectors, aerospace, and related fields.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with one year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
