0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth

0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth

Products - Thickness Gauges - Digital Thickness Gauges
  • Highlight

    0-12.7mm digital thickness measuring instrument

    ,

    digital thickness measuring instrument 120mm

    ,

    0-0.5″ digital thickness measuring instrument

  • Warranty
    One Year
  • Measurement
    Metric/Inch
  • Material
    Stainless Steel
  • Measuring Face
    Ceramic
  • Range
    0-12.7mm/0-0.5′′
  • Resolution
    0.001mm/0.00005′′
  • Throat Depth
    120mm
  • Application
    Measure The Thickness Of Paper, Leather, Rubber
  • Feature
    With Convenient Grip Handle
  • Measuring Faces
    Flat Or Ball Probe
  • Package
    ABS Case
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-422-092
  • Packaging Details
    Wooden Case 30*17*5cm/Piece 0.98kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth

  • 0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth
  • 0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth
  • 0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth
  • 0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth
Get Price Contact Now
0-12.7mm Electronic Digital Thickness Measuring Instrument With 120mm Measuring Depth
Product Description

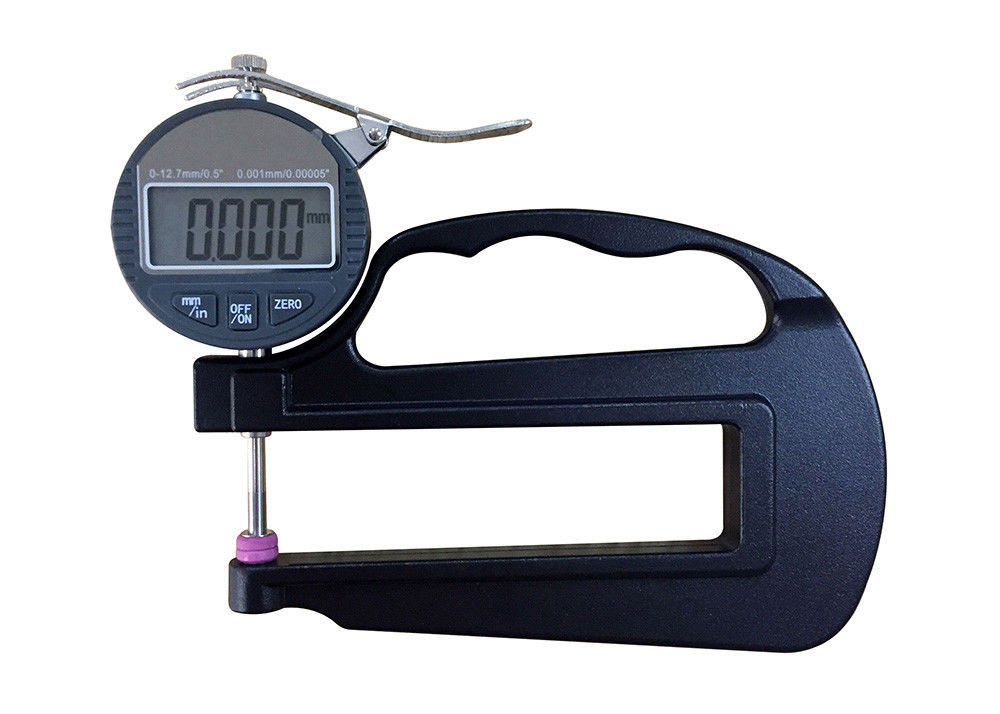

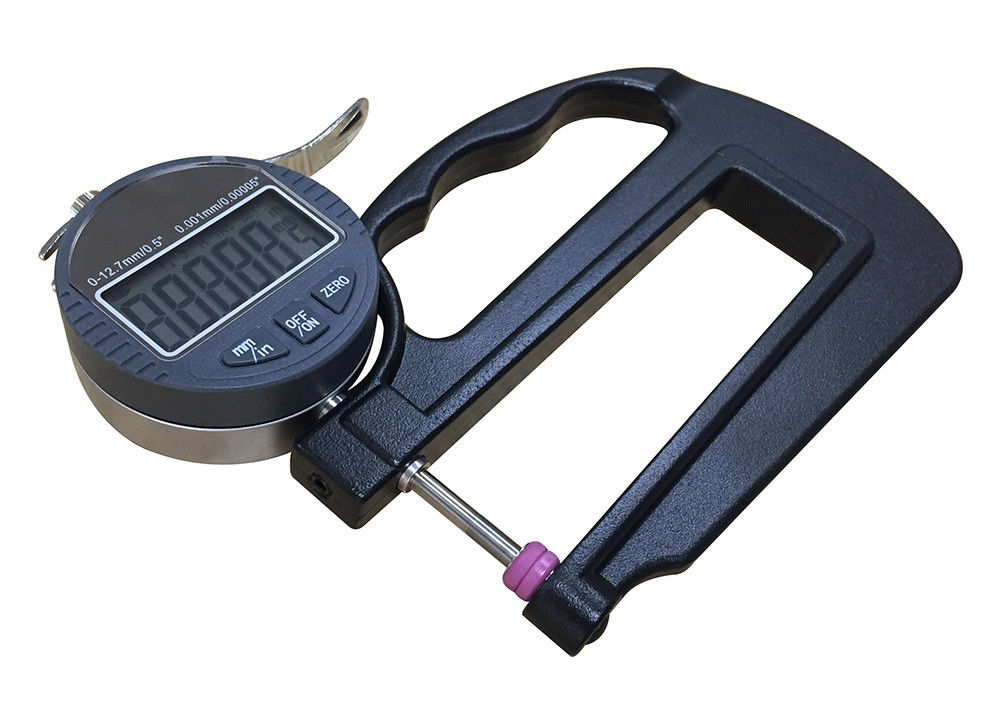

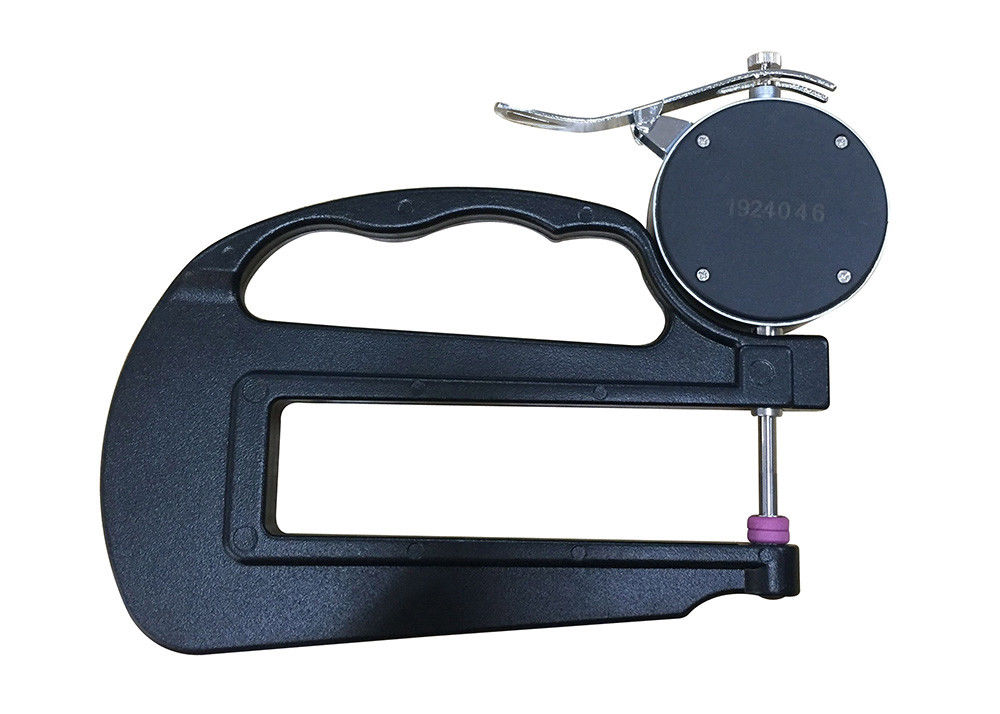

0-12.7mm/0-0.5″ Electronic Digital Thickness Gauge with 120mm Measuring Depth
Key Features
  • Large LCD for easy-reading
  • Zero-setting at any position
  • Inch/Metric conversion
  • ON/OFF: Power on and power off
  • Quick and efficient measurement with convenient grip handle
  • Lifting lever for dial indicator
  • Various types of measuring faces available for wide range of applications
  • Steel or ceramic material measuring face options
  • Customizable measuring depth based on requirements

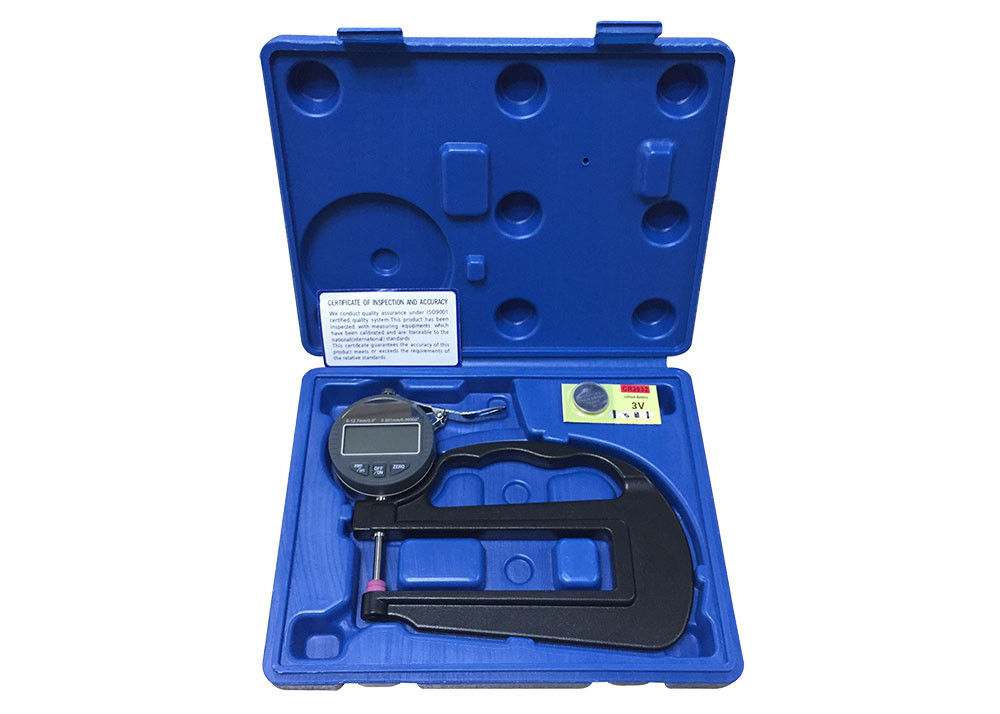

  • Supplied in fitted case
This digital thickness gauge features a 0-12.7mm measuring range with 120mm measuring depth, 0.001mm resolution, and ceramic measuring face. The large digital display shows measurement results clearly, with automatic metric/inch conversion to reduce human error and improve efficiency.
The stable structural design maintains high measurement accuracy and stability across various environmental conditions. The low-power design enables long-term operation without frequent battery replacement.
Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-422-090 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 30mm
KM-422-091 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 60mm
KM-422-092 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 120mm
KM-422-093 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 200mm
KM-422-094 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 300mm
KM-422-095 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 400mm
KM-422-096 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 500mm
KM-422-190 0-25.4mm/0-1″ 0.001mm/0.00005″ 30mm
KM-422-191 0-25.4mm/0-1″ 0.001mm/0.00005″ 60mm
KM-422-192 0-25.4mm/0-1″ 0.001mm/0.00005″ 120mm
KM-422-193 0-25.4mm/0-1″ 0.001mm/0.00005″ 200mm
KM-422-194 0-25.4mm/0-1″ 0.001mm/0.00005″ 300mm
KM-422-195 0-25.4mm/0-1″ 0.001mm/0.00005″ 400mm
KM-422-196 0-25.4mm/0-1″ 0.001mm/0.00005″ 500mm
KM-422-290 0-50mm/0-2″ 0.001mm/0.00005″ 30mm
KM-422-291 0-50mm/0-2″ 0.001mm/0.00005″ 60mm
KM-422-292 0-50mm/0-2″ 0.001mm/0.00005″ 120mm
KM-422-293 0-50mm/0-2″ 0.001mm/0.00005″ 200mm
KM-422-294 0-50mm/0-2″ 0.001mm/0.00005″ 300mm
KM-422-295 0-50mm/0-2″ 0.001mm/0.00005″ 400mm
KM-422-296 0-50mm/0-2″ 0.001mm/0.00005″ 500mm
Precautions
  • Prevent impact and falls to maintain accuracy
  • Keep clean and avoid liquid penetration
  • Do not remove output port cover when not in use
  • Avoid applying voltage or engraving on the device
  • Remove battery when not in use for extended periods
Applications
  • Iron and steel industry: metal sheet thickness measurement
  • Chemical industry: container and pipeline wall thickness
  • Manufacturing: plastic, paper, leather, rubber, fabric, glass
  • Aerospace: aircraft and engine parts
  • Automotive industry: body panels, brake discs
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM is available.
How about after-sales service?
One year warranty for all products. Defective parts will be replaced. Our strict calibration and inspection processes ensure product quality.
