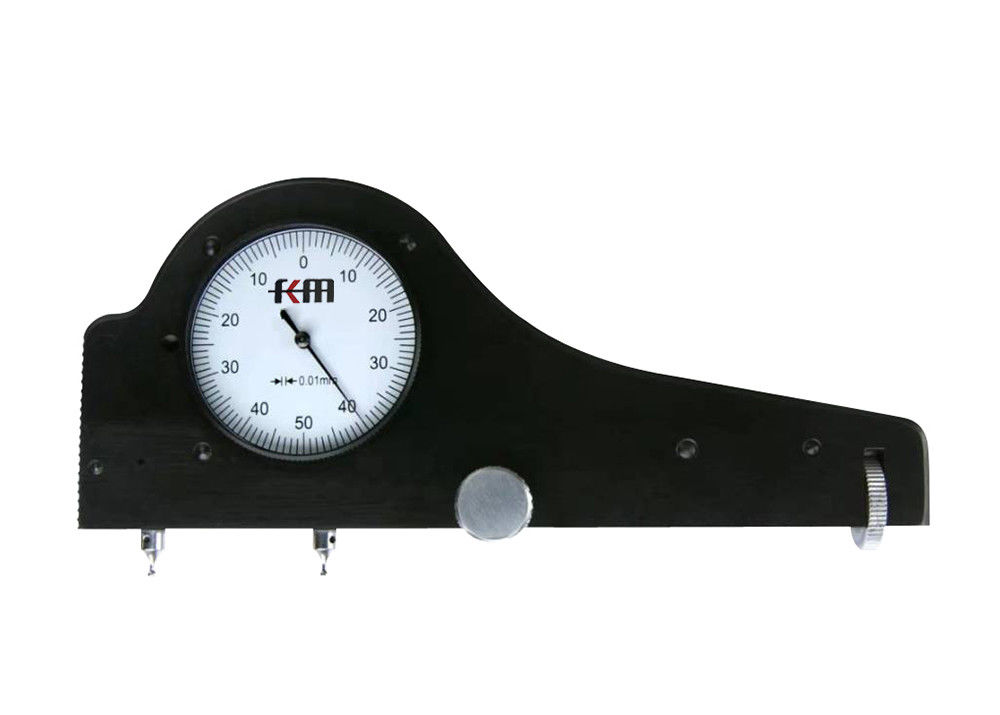

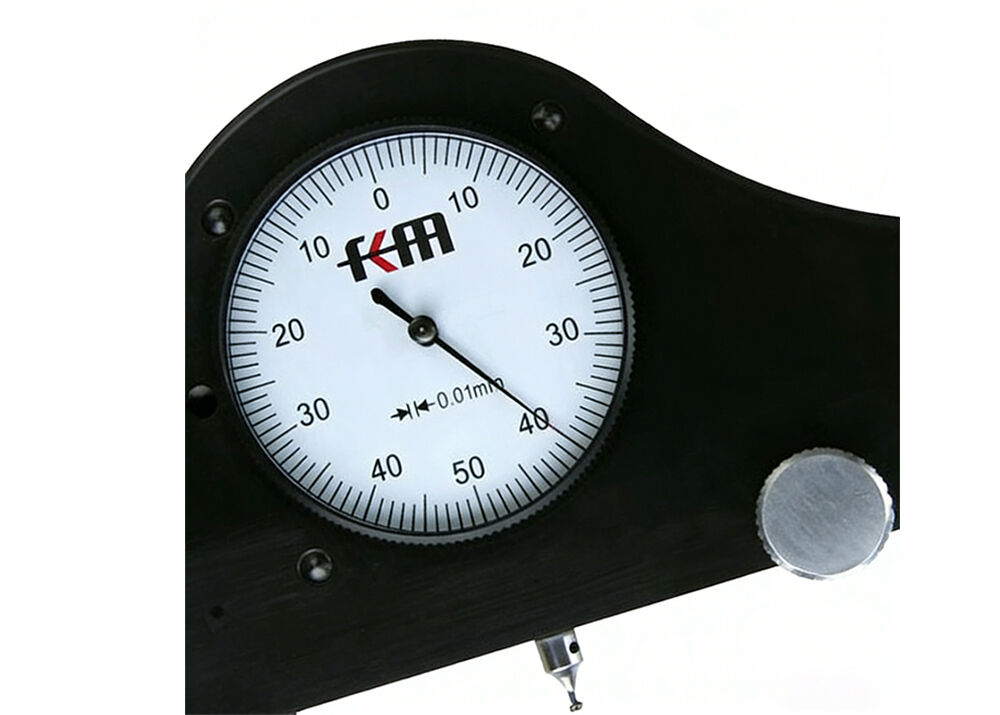

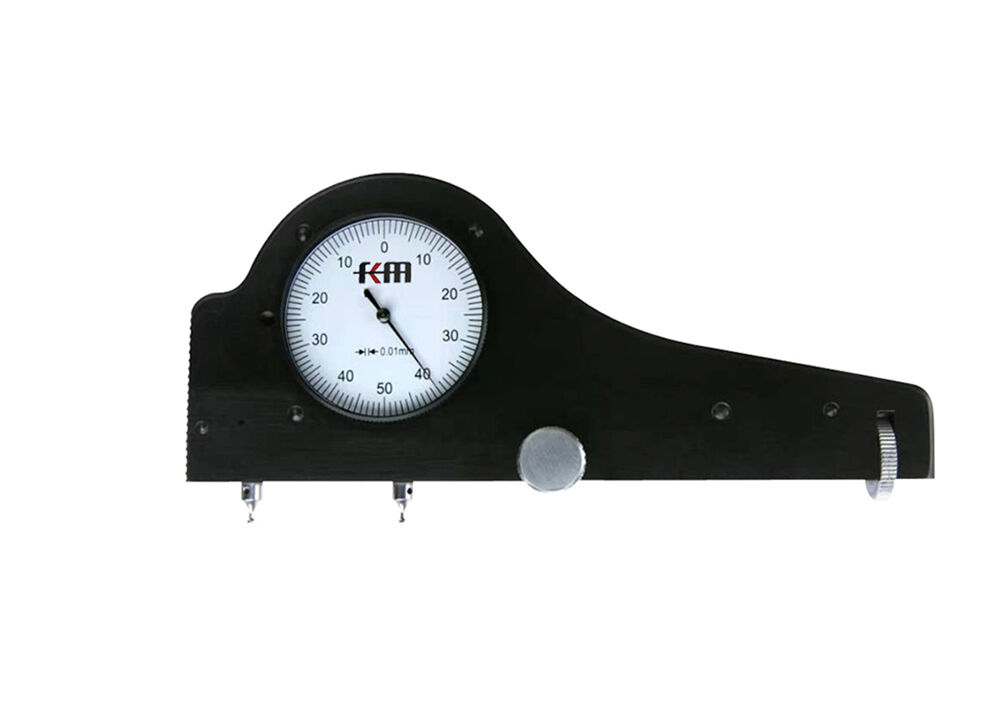

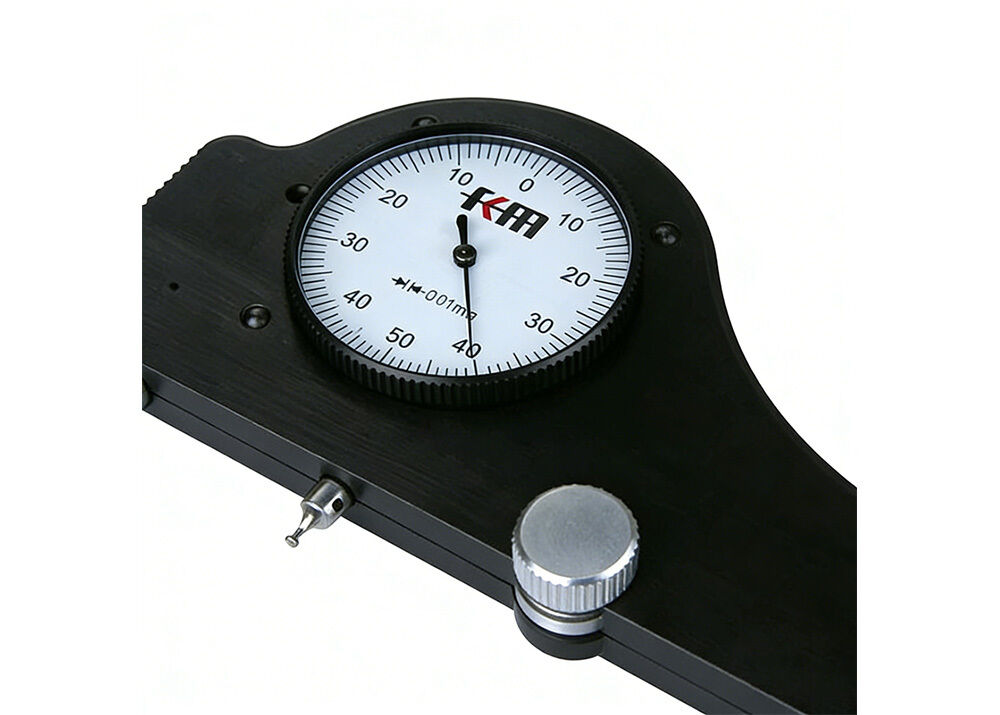

0.5-4in Petroleum Oil Pipe External Thread Pitch Lead Gauge Measuring Instrument
-
Highlight
Petroleum Oil Pipe thread lead gauge
,0.5-4in thread lead gauge
,External Thread Pitch Lead Gauge
-
WarrantyOne Year
-
Measurement ObjectOuter Thread Pitch
-
Range0.5-4′′,12.7-101.6mm
-
Graduation0.01mm
-
Range Ability12.7-101.6mm
-
ApplicationOil Pipe Thread Measurement
-
PackageAluminum Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-OP
-
Packaging DetailsAluminum Case 28*19*8cm/Piece 2.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
0.5-4in Petroleum Oil Pipe External Thread Pitch Lead Gauge Measuring Instrument
0.5-4in Petroleum Oil Pipe External Thread Pitch Lead Gauge Measuring Instrument
Quick Features
- Precision measuring instrument for petroleum pipes
- Designed for measuring external thread pitch in oil industry applications
- Optional measuring heads available for different thread types
- Includes protective fitted case for storage and transport
Product Description
Our precision oil pipe thread measuring instruments are specially designed for the petroleum industry to accurately measure thread taper, pitch, and height parameters for various oil pipes including casing pipes, oil pipes, pipelines, and drill pipes.
This external thread pitch measuring instrument is designed for all external thread pitch measurements. We offer different measuring head options - please specify your required thread type when ordering so we can provide the optimal solution.
All our oil pipe thread instruments are manufactured and calibrated to exacting standards under ISO9001 quality management. They comply with national standards JJF1063-2000 and JJG42-96, as well as API STD 5B standards.
Specifications
| Order No. | Measuring Range | Graduation |
|---|---|---|
| KM-OP | 0.5-4in (12.7-101.6mm) | 0.01mm |

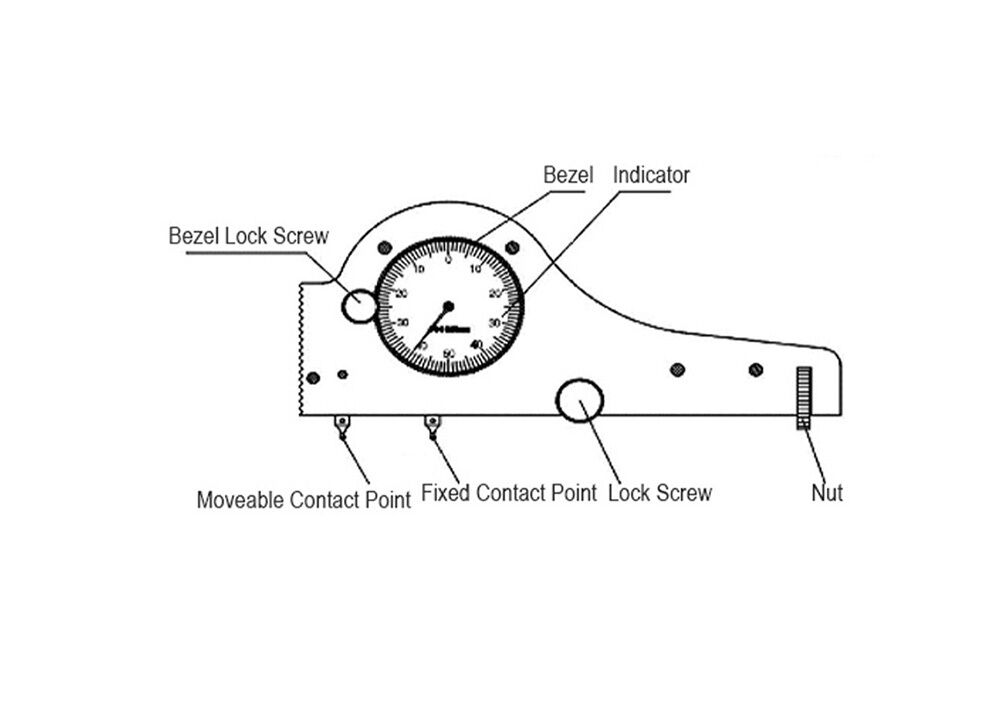

Operation Instructions
- Consult the "Probe Usage List" appendix and install the appropriate measuring head for your thread type
- Loosen the lower locking screw and adjust the fixed probe position using the tail nut
- Insert probes into corresponding slots, ensuring proper alignment with the protection plate
- Adjust the indicator pointer to vertical position and secure the locking screw
- Maintain fixed measuring head position while rotating the movable head in a small arc
- Calibrate using the indicator bezel to set zero position at maximum reading
- Measure pitch error by observing smallest positive or largest negative indicator reading
Applications
These precision thread measuring instruments are essential for maintaining geometric accuracy of pipe threads in the petroleum industry, including applications for casing pipes, oil pipes, pipelines, and drill pipes.
Frequently Asked Questions
About Deko Corporation
We specialize in developing, manufacturing, and marketing KM brand precision measuring tools in China.
Product Range
We offer comprehensive measuring tools including dial indicators, micrometers, calipers, bore gauges, height gauges, and various other precision instruments.
Trade Terms
We support FOB, CFR, CIF, and EXW trade terms.
Payment Options
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Customization
OEM services are available for customized requirements.
Warranty & Support
All products come with a one-year warranty. Our strict calibration and inspection processes ensure reliable quality, with replacement parts available if needed.
