0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face

0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face

Products - Thickness Gauges - Digital Thickness Gauges
  • Highlight

    12.7mm Digital Thickness Gauge

    ,

    400mm Measuring Depth Digital Thickness Gauge

  • Warranty
    One Year
  • Measurement
    Metric/Inch
  • Material
    Stainless Steel
  • Measuring Face
    Ceramic
  • Range
    0-12.7mm/0-0.5′′
  • Resolution
    0.001mm/0.00005′′
  • Throat Depth
    400mm
  • Application
    Measure The Thickness Of Paper, Leather, Rubber
  • Feature
    With Convenient Grip Handle
  • Measuring Faces
    Flat Or Ball Probe
  • Package
    Wood Case
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-422-095
  • Packaging Details

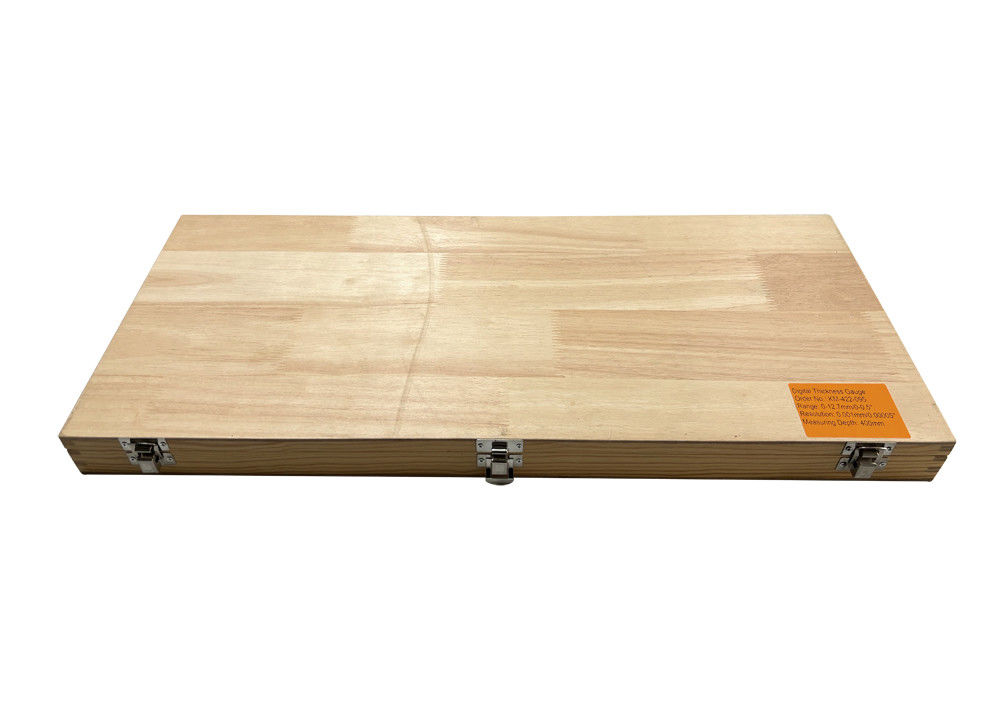

    Wooden Case 47*20*5cm/Piece 1.86kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face

  • 0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face
  • 0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face
  • 0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face
  • 0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face
Get Price Contact Now
0-12.7mm Digital Thickness Gauge with 400mm Measuring Depth and Optional Steel Measuring Face
Quick Features
  1. Large LCD for easy-reading
  2. Zero-setting at any position
  3. Inch/Metric conversion
  4. ON/OFF: Power on and power off
  5. Quick and efficient measurement with convenient grip handle
  6. Lifting lever for dial indicator
  7. Various types of measuring faces available for wide range of applications
  8. Steel or ceramic material measuring face options
  9. Customizable measuring depth based on requirements

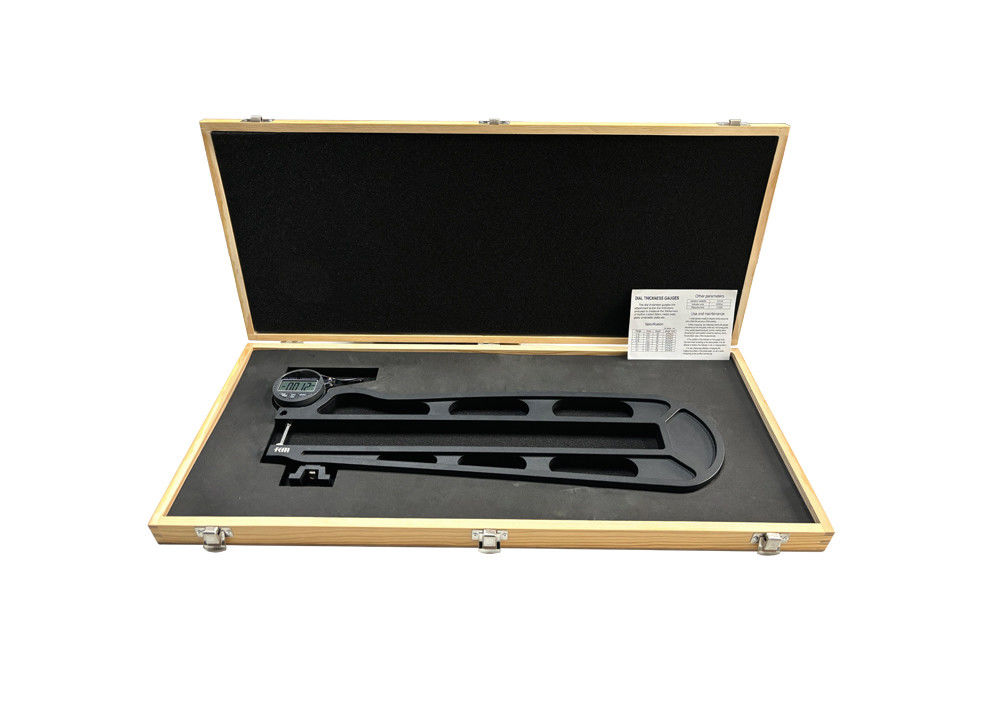

  10. Supplied in fitted case
Product Description

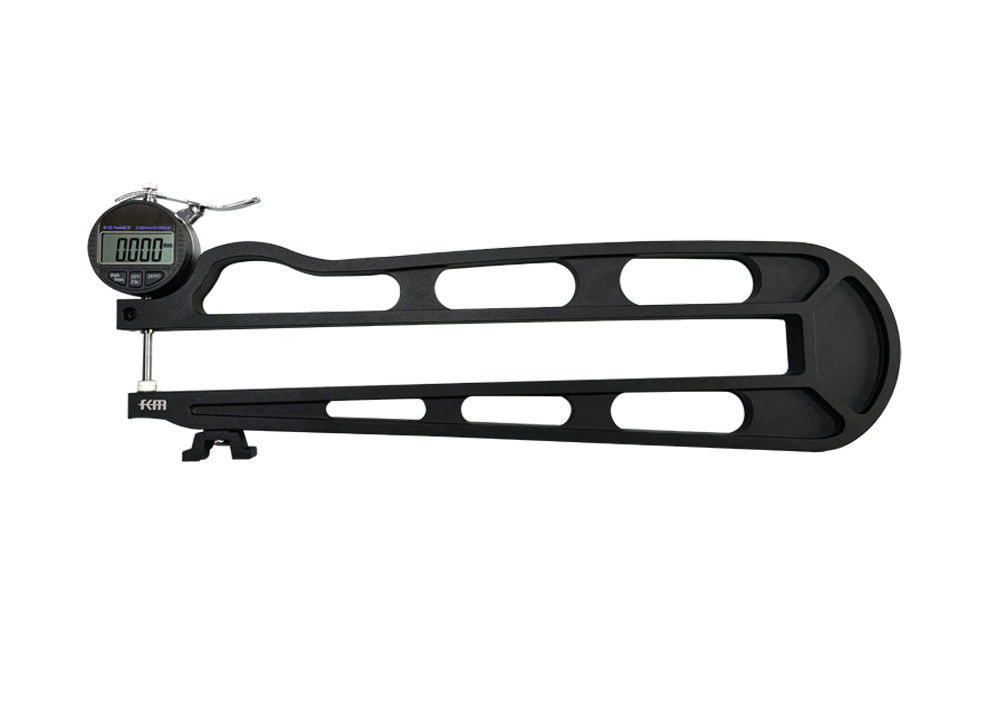

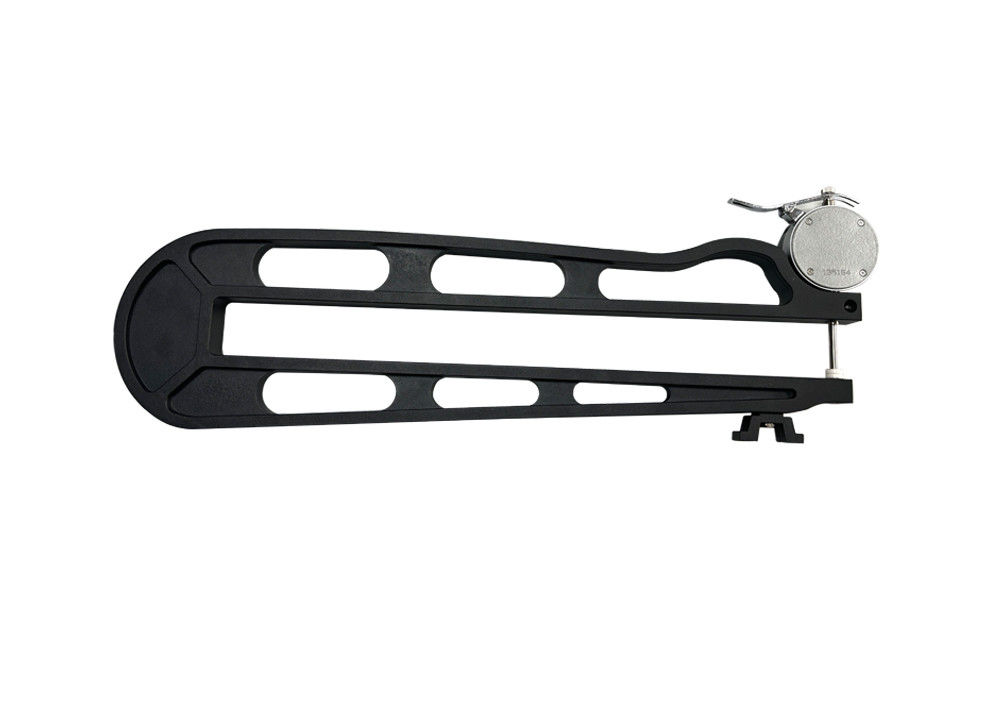

This digital thickness gauge features a 0-12.7mm measurement range with 120mm measuring depth, 0.001mm resolution, and ceramic measuring face. The large digital display shows measurement results clearly, with automatic metric/inch conversion to minimize human error and improve efficiency.
The stable structural design maintains high measurement accuracy and stability across various environmental conditions. The low-power design enables extended operation without frequent battery replacement.
Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-422-090 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 30mm
KM-422-091 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 60mm
KM-422-092 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 120mm
KM-422-093 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 200mm
KM-422-094 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 300mm
KM-422-095 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 400mm
KM-422-096 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 500mm
KM-422-190 0-25.4mm/0-1″ 0.001mm/0.00005″ 30mm
KM-422-191 0-25.4mm/0-1″ 0.001mm/0.00005″ 60mm
KM-422-192 0-25.4mm/0-1″ 0.001mm/0.00005″ 120mm
KM-422-193 0-25.4mm/0-1″ 0.001mm/0.00005″ 200mm
KM-422-194 0-25.4mm/0-1″ 0.001mm/0.00005″ 300mm
KM-422-195 0-25.4mm/0-1″ 0.001mm/0.00005″ 400mm
KM-422-196 0-25.4mm/0-1″ 0.001mm/0.00005″ 500mm
KM-422-290 0-50mm/0-2″ 0.001mm/0.00005″ 30mm
KM-422-291 0-50mm/0-2″ 0.001mm/0.00005″ 60mm
KM-422-292 0-50mm/0-2″ 0.001mm/0.00005″ 120mm
KM-422-293 0-50mm/0-2″ 0.001mm/0.00005″ 200mm
KM-422-294 0-50mm/0-2″ 0.001mm/0.00005″ 300mm
KM-422-295 0-50mm/0-2″ 0.001mm/0.00005″ 400mm
KM-422-296 0-50mm/0-2″ 0.001mm/0.00005″ 500mm
Usage Precautions
  1. Prevent impact and falls to maintain accuracy as this is a precision measuring tool
  2. Keep clean and avoid liquid penetration to ensure normal operation
  3. Do not remove output port cover when not in use or touch terminals with metal devices
  4. Do not apply voltage or engrave on any part to avoid damaging electronic circuits
  5. Remove battery when not in use for extended periods
Applications
This thickness gauge is widely used in: iron and steel industry (metal sheet measurement), chemical industry (container/pipeline wall thickness), manufacturing (plastic, paper, leather, rubber, fabric, glass), aerospace (aircraft/engine parts), and automotive industry (body panels, brake discs).
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, etc.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM is available.
How about after-sales service?
One year warranty for all products. Defective parts will be replaced. Our strict calibration and inspection processes ensure product quality.
