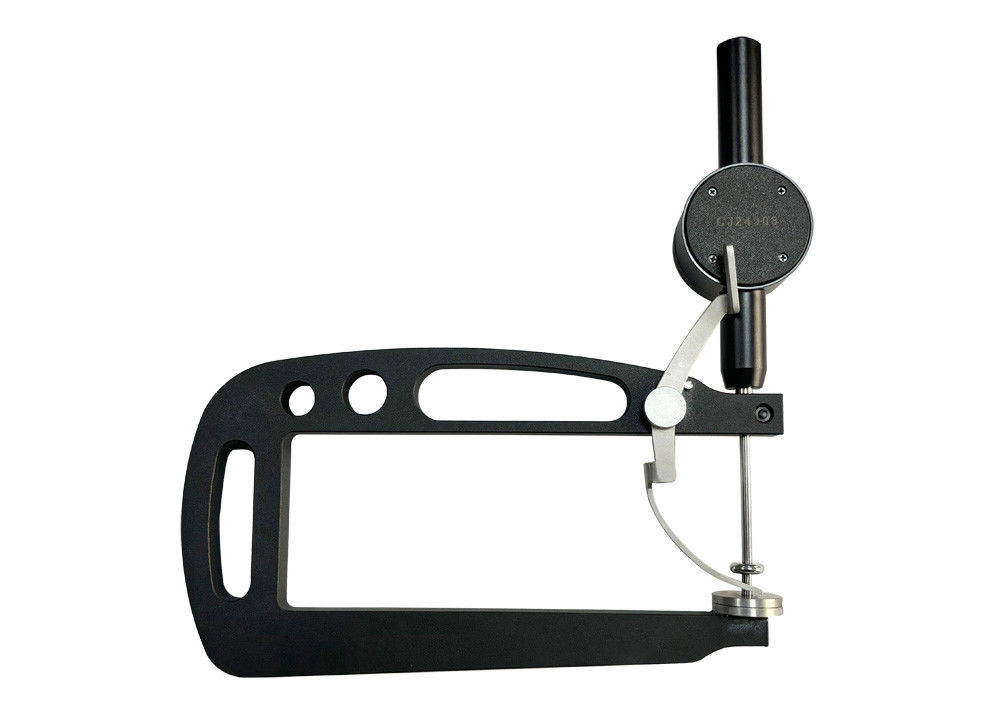

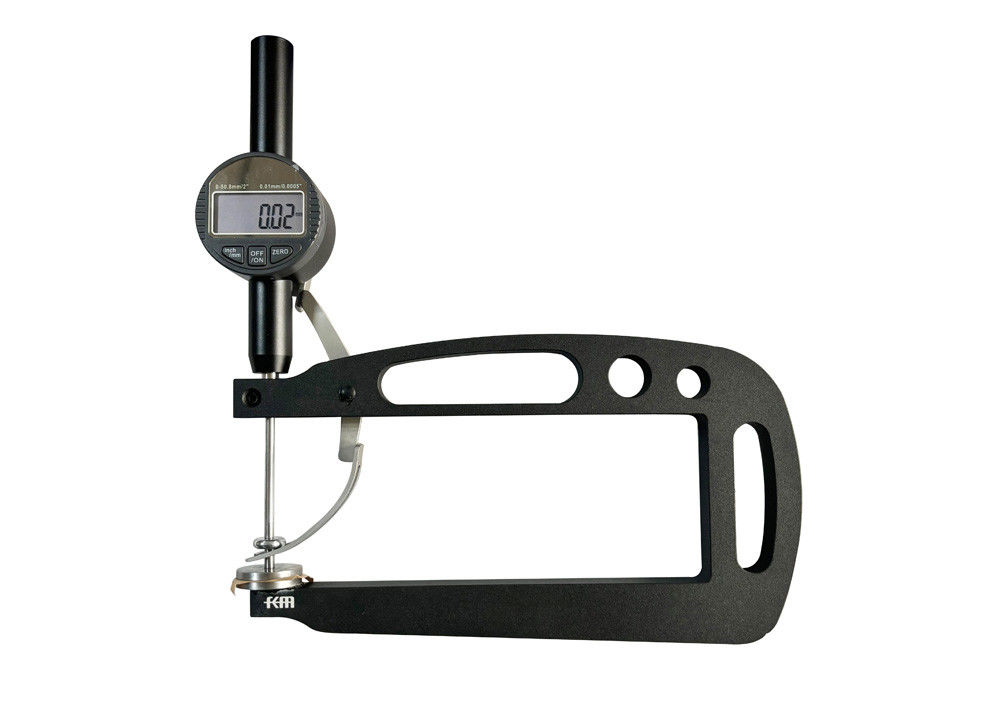

0-50mm Digital Thickness Gauges with Steel Material Measuring Face

0-50mm Digital Thickness Gauges with Steel Material Measuring Face

Products - Thickness Gauges - Digital Thickness Gauges
  • Highlight

    Steel Material Digital Thickness Gauges

    ,

    50mm Digital Thickness Gauges

    ,

    Measuring Face Digital Thickness Gauges

  • Warranty
    One Year
  • Measurement
    Metric/Inch
  • Material
    Stainless Steel
  • Range
    0-50mm/0-2′′
  • Resolution
    0.01mm/0.0005′′
  • Throat Depth
    200mm
  • Application
    Measure The Thickness Of Paper, Leather, Rubber
  • Feature
    With Convenient Grip Handle
  • Measuring Faces
    Flat Or Ball Probe
  • Package
    ABS Case
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-424-204

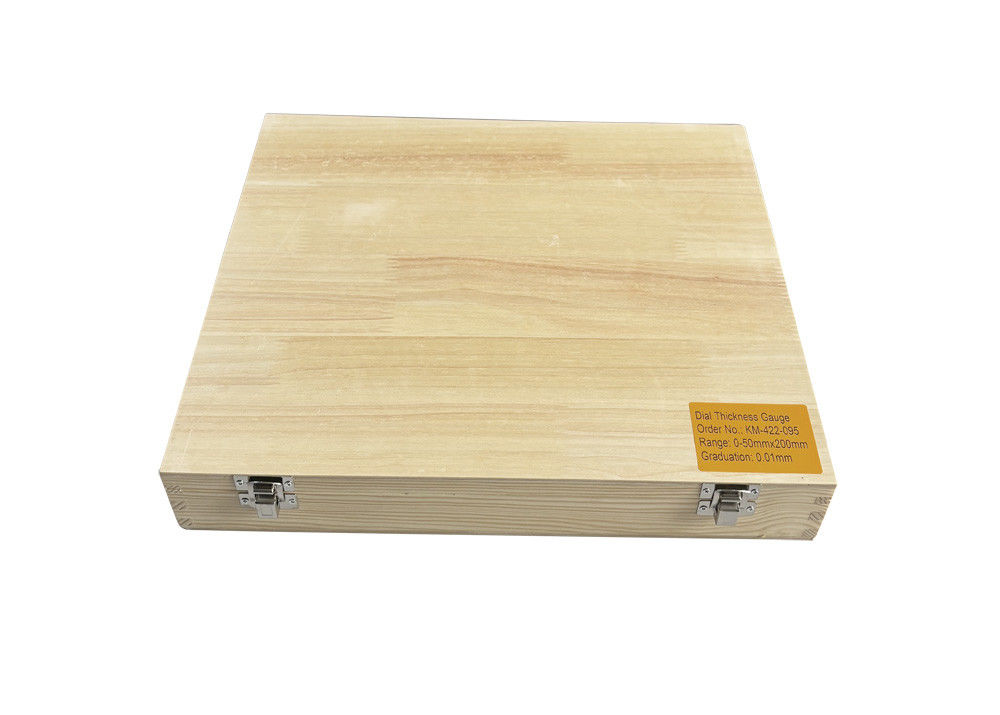

  • Packaging Details
    Wooden Case 38*34*6cm/Piece 1.94kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

0-50mm Digital Thickness Gauges with Steel Material Measuring Face

  • 0-50mm Digital Thickness Gauges with Steel Material Measuring Face
  • 0-50mm Digital Thickness Gauges with Steel Material Measuring Face
  • 0-50mm Digital Thickness Gauges with Steel Material Measuring Face
Get Price Contact Now
0-50mm Digital Thickness Gauges with Steel Material Measuring Face
Product Overview
Our digital thickness gauge features a clear LCD display for direct measurement reading, with automatic metric/inch conversion to minimize human error and enhance measurement efficiency. The sturdy steel construction ensures durability and precision in various industrial environments.
Key Features
  • Large LCD display for easy reading
  • Zero-setting capability at any position
  • Inch/Metric conversion function
  • Convenient ON/OFF power control
  • Ergonomic grip handle for quick measurements
  • Lifting lever for dial indicator
  • Multiple measuring face options available
  • Choice of steel or ceramic measuring faces
  • Customizable measuring depth
  • Includes protective fitted case
Technical Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-424-001 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 30mm
KM-424-002 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 60mm
KM-424-003 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 120mm
KM-424-004 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 200mm
KM-424-005 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 300mm
KM-424-006 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 400mm
KM-424-007 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 500mm
KM-424-101 0-25.4mm/0-1″ 0.01mm/0.0005″ 30mm
KM-424-102 0-25.4mm/0-1″ 0.01mm/0.0005″ 60mm
KM-424-103 0-25.4mm/0-1″ 0.01mm/0.0005″ 120mm
KM-424-104 0-25.4mm/0-1″ 0.01mm/0.0005″ 200mm
KM-424-105 0-25.4mm/0-1″ 0.01mm/0.0005″ 300mm
KM-424-106 0-25.4mm/0-1″ 0.01mm/0.0005″ 400mm
KM-424-107 0-25.4mm/0-1″ 0.01mm/0.0005″ 500mm
KM-424-201 0-50mm/0-2″ 0.01mm/0.0005″ 30mm
KM-424-202 0-50mm/0-2″ 0.01mm/0.0005″ 60mm
KM-424-203 0-50mm/0-2″ 0.01mm/0.0005″ 120mm
KM-424-204 0-50mm/0-2″ 0.01mm/0.0005″ 200mm
KM-424-205 0-50mm/0-2″ 0.01mm/0.0005″ 300mm
KM-424-206 0-50mm/0-2″ 0.01mm/0.0005″ 400mm
KM-424-207 0-50mm/0-2″ 0.01mm/0.0005″ 500mm
Usage Precautions
  • Handle with care to prevent impacts or drops that may affect accuracy
  • Keep clean and dry to maintain optimal performance
  • Do not remove output port cover when not in use
  • Avoid contact with metal devices on output terminals
  • Remove batteries during extended storage periods
Industrial Applications
  • Steel industry: Measuring metal sheet thickness for ships, bridges, and tanks
  • Chemical industry: Container and pipeline wall thickness measurement
  • Manufacturing: Thickness measurement for plastics, paper, leather, rubber, fabric, and glass
  • Aerospace: Aircraft and engine component thickness measurement
  • Automotive: Body panels and brake disc thickness measurement
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
