0.02mm Resolution 0-600mm Precision Hardened Height Gauge With Stainless Steel Construction for Workshop & QC Use

0.02mm Resolution 0-600mm Precision Hardened Height Gauge With Stainless Steel Construction for Workshop & QC Use

Products - Height Gauges - Vernier Height Gauges
  • Highlight

    Precision Hardened Height Gauge

    ,

    0-600mm Height Gauge

    ,

    QC Use Height Gauge

  • Warranty
    One Year
  • Material
    Stainless Steel
  • Measurement
    Metric
  • Measurement Object
    Height
  • Range
    0-600mm
  • Precision
    0.04mm
  • Resolution
    0.02mm
  • Function
    With Fine Adjustment
  • Customized
    Acceptable
  • Package
    Polyfoam+Paper Box
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-421-600
  • Packaging Details
    Polyfoam+Paper Box 78*32*14cm/Piece 5.10kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

0.02mm Resolution 0-600mm Precision Hardened Height Gauge With Stainless Steel Construction for Workshop & QC Use

  • 0.02mm Resolution 0-600mm Precision Hardened Height Gauge With Stainless Steel Construction for Workshop & QC Use
  • 0.02mm Resolution 0-600mm Precision Hardened Height Gauge With Stainless Steel Construction for Workshop & QC Use
  • 0.02mm Resolution 0-600mm Precision Hardened Height Gauge With Stainless Steel Construction for Workshop & QC Use
Get Price Contact Now
0.02mm Resolution 0-600mm Precision Hardened Height Gauge With Stainless Steel Construction for Workshop & QC Use

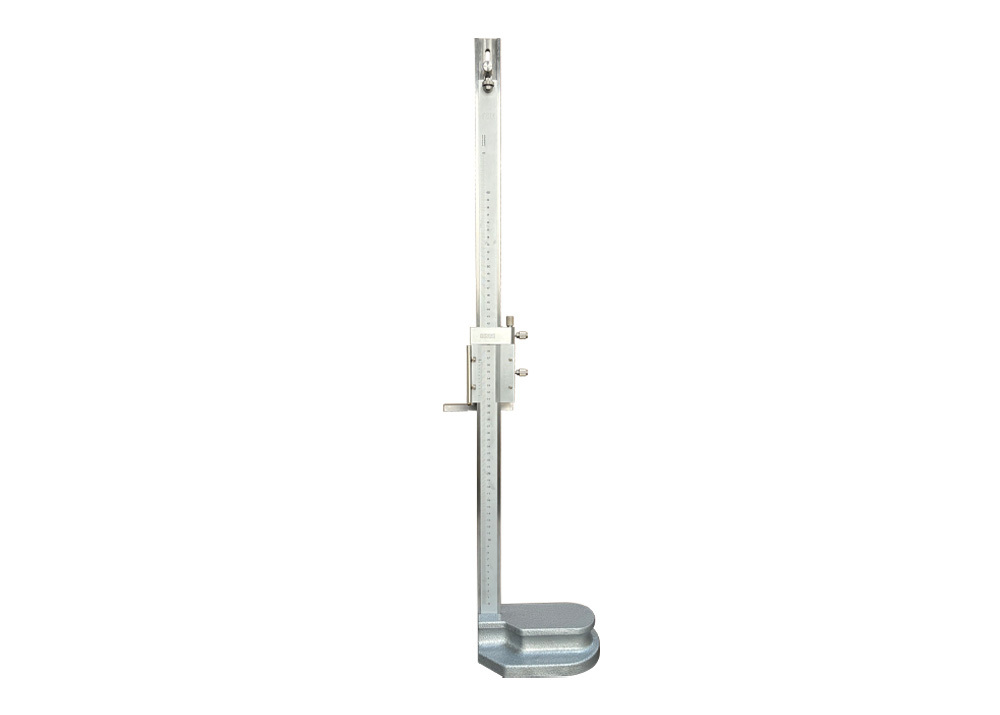

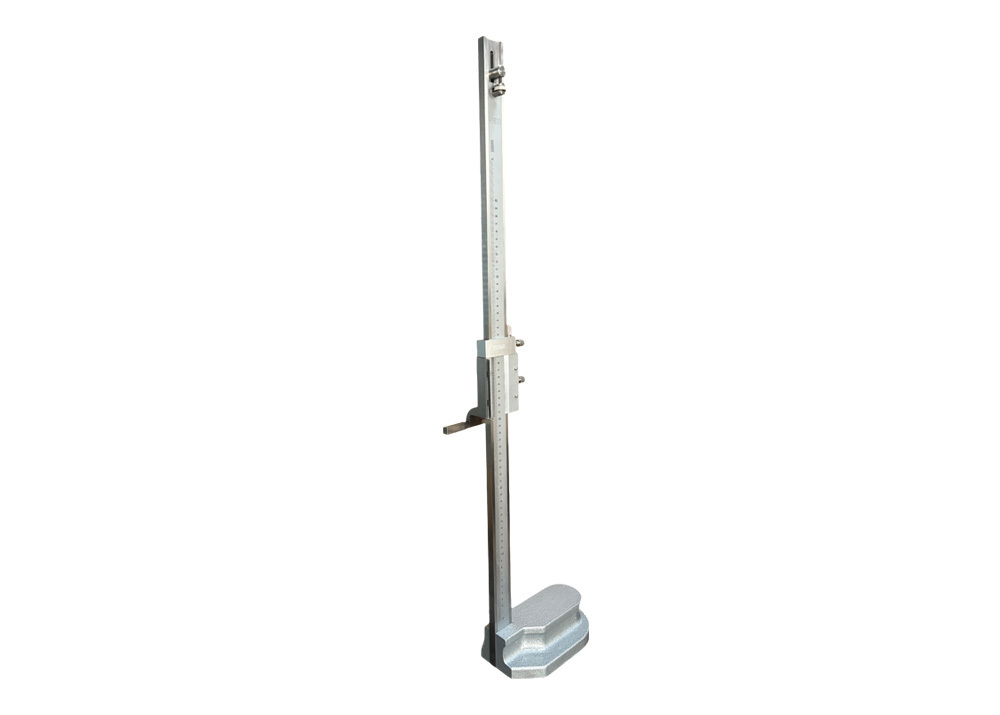

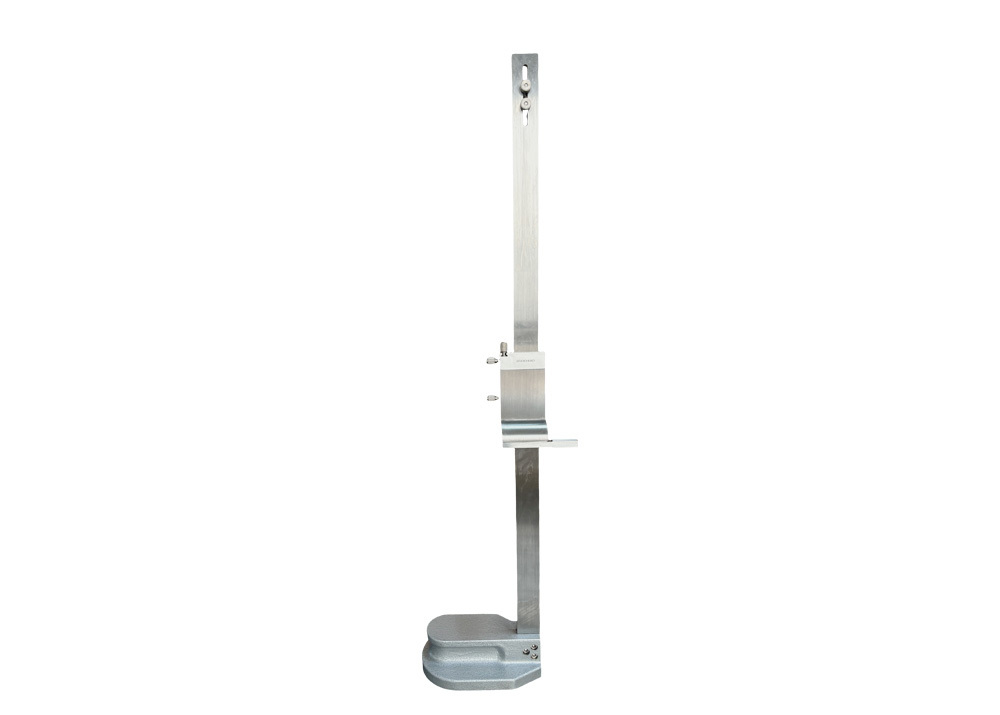

Our KM-421 series stainless steel vernier height gauge is designed for precision measurement in metalworking and metrology applications. The sharpened pointer functions as a scriber for marking workpieces, while the stainless steel construction ensures durability and long-term performance stability.
Key Features
  • Stainless steel hardened construction for extended service life
  • Precision fine adjustment mechanism
  • Includes amplifying glass for enhanced readability
  • Adjustable main ruler for versatile measurements
  • Base available in plate chromium, spray paint, or spray plastic finishes
  • Supplied in protective fitted case
Specifications
Order No. Measuring Range Resolution Accuracy
KM-421-300 0-300mm 0.02mm 0-150mm±0.02mm
＞150-200mm ±0.03mm
＞200-300mm ±0.04mm
＞300-500mm ±0.05mm
＞500-1000mm ±0.07mm
0-12'' ±0.001''
＞12''-20'' ±0.0015''
＞20''-40'' ±0.0025''
KM-421-450 0-450mm 0.02mm
KM-421-500 0-500mm 0.02mm
KM-421-600 0-600mm 0.02mm
KM-421-1000 0-1000mm 0.02mm
KM-421-1500 0-1500mm 0.02mm
KM-421-12 0-12'' 0.001''
KM-421-18 0-18'' 0.001''
KM-421-20 0-20'' 0.001''
KM-421-24 0-24'' 0.001''
KM-421-40 0-40'' 0.001''
KM-421-60 0-60'' 0.001''
KM-421-30012 0-300mm/0-12'' 0.02mm/0.001''
KM-421-45018 0-450mm/0-18'' 0.02mm/0.001''
KM-421-50020 0-500mm/0-20'' 0.02mm/0.001''
KM-421-60024 0-600mm/0-24'' 0.02mm/0.001''
KM-421-100040 0-1000mm/0-40'' 0.02mm/0.001''
KM-421-150060 0-1500mm/0-60'' 0.02mm/0.001''
KM-421-12300 0-12''/0-300mm 0.001''/0.02mm
KM-421-18450 0-18''/0-450mm 0.001''/0.02mm
KM-421-20500 0-20''/0-500mm 0.001''/0.02mm
KM-421-24600 0-24''/0-600mm 0.001''/0.02mm
KM-421-401000 0-40''/0-1000mm 0.001''/0.02mm
KM-421-601500 0-60''/0-1500mm 0.001''/0.02mm
Applications
Our height gauges are essential tools for construction, bridge engineering, geological exploration, and engineering testing. They accurately measure vertical distances and can detect vertical displacement of moving objects.
Usage Precautions
  • Clean the main ruler, measuring jaw, and workpiece surface before measurement
  • When measuring height, slightly swing the measuring jaw to obtain the maximum position reading
  • Maintain clean measuring surfaces during operation
  • Store in protective case when not in use for extended periods
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Our strict calibration and inspection processes ensure product quality, and we promptly replace any defective parts.
