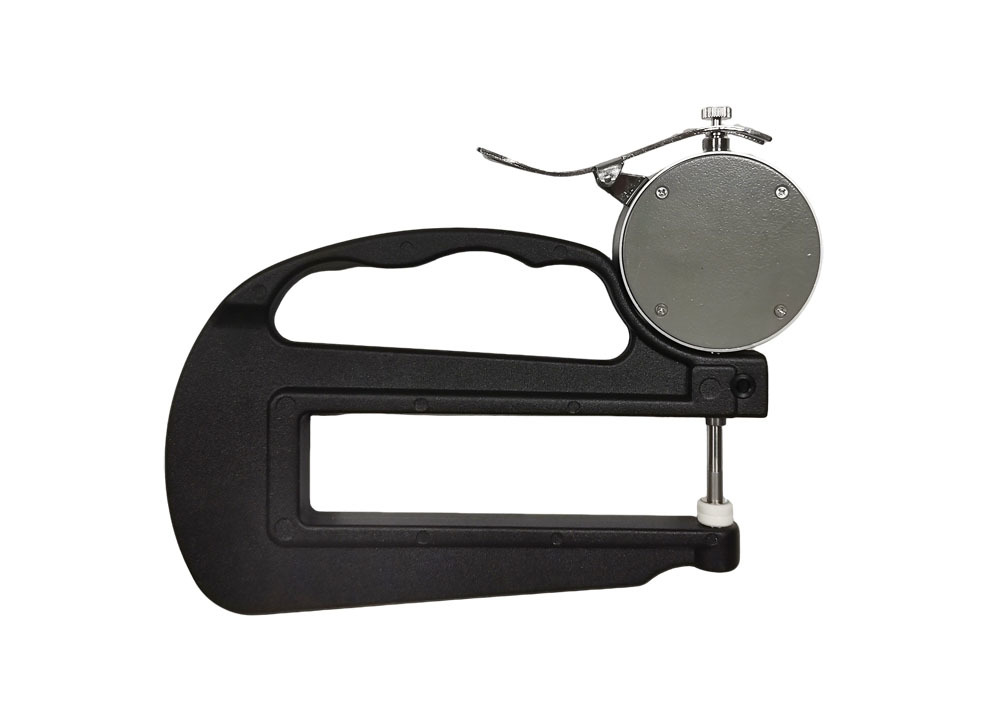

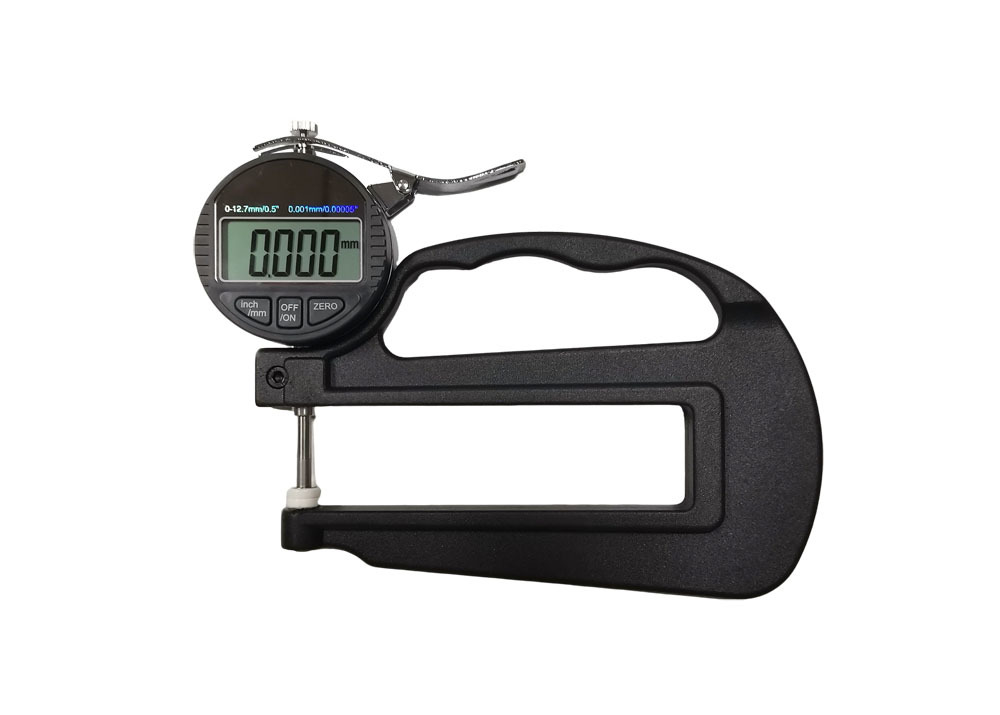

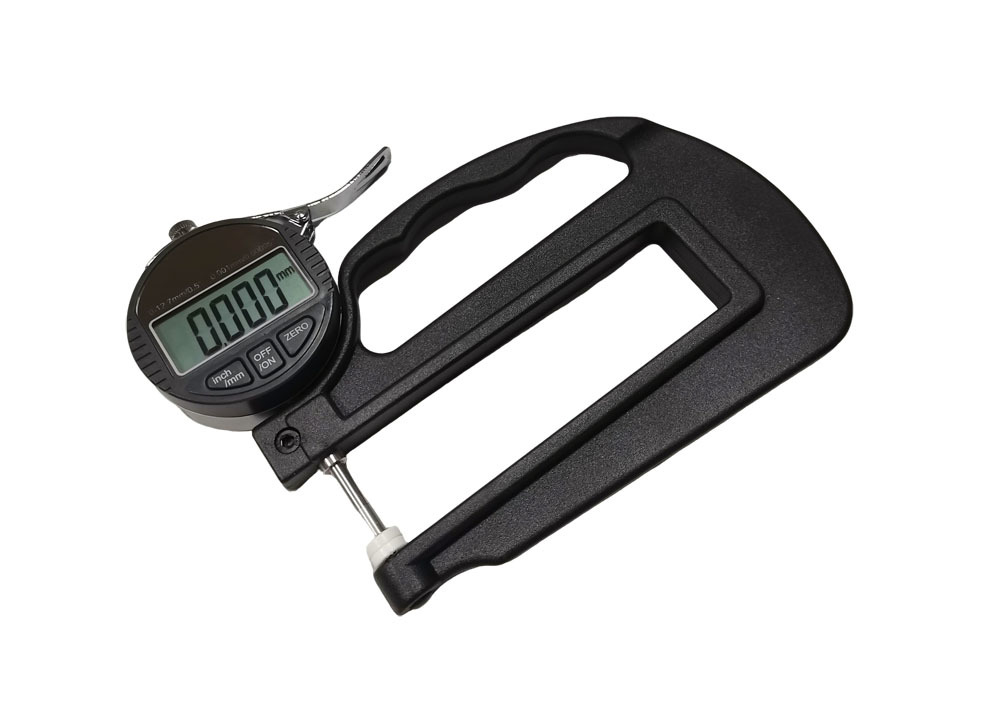

0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face

0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face

Products - Thickness Gauges - Digital Thickness Gauges
  • Highlight

    digital thickness gauge 0-12.7mm range

    ,

    thickness gauge with ceramic measuring face

    ,

    120mm depth digital thickness meter

  • Warranty
    One Year
  • Measurement
    Metric/Inch
  • Material
    Stainless Steel
  • Measuring Face
    Ceramic
  • Range
    0-12.7mm/0-0.5′′
  • Resolution
    0.001mm/0.00005′′
  • Throat Depth
    120mm
  • Application
    Measure The Thickness Of Paper, Leather, Rubber
  • Feature
    With Convenient Grip Handle
  • Measuring Faces
    Flat Or Ball Probe
  • Package
    Wooden Case
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-422-092
  • Packaging Details
    Wooden Case 27*15*5cm/Piece 0.85kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face

  • 0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face
  • 0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face
  • 0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face
  • 0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face
  • 0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face
  • 0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face
Get Price Contact Now
0-12.7mm/0-0.5″ Digital Thickness Gauge with 120mm Measuring Depth and Optional Ceramic Measuring Face
High Precision Digital Thickness Gauge
The KM-422 series digital thickness gauge offers precision measurement with 0.001mm/0.00005" resolution. Available in measuring ranges from 0-12.7mm/0-0.5" up to 0-50mm/0-2", with measuring depths from 26mm to 500mm. Custom measuring depths can be accommodated based on requirements.
Designed for stability and accuracy across various environmental conditions, this gauge features a large digital display for clear readings with automatic metric/inch conversion to minimize human error. The low-power design ensures extended battery life.
Key Features
  • Large LCD for easy reading.
  • Zero-setting at any position.
  • Inch/Metric conversion.
  • Power on/off function.
  • Convenient grip handle for quick measurement.
  • Lifting lever for dial indicator.
  • Multiple measuring face options for diverse applications.
  • Optional steel or ceramic measuring faces.
  • Customizable measuring depth.

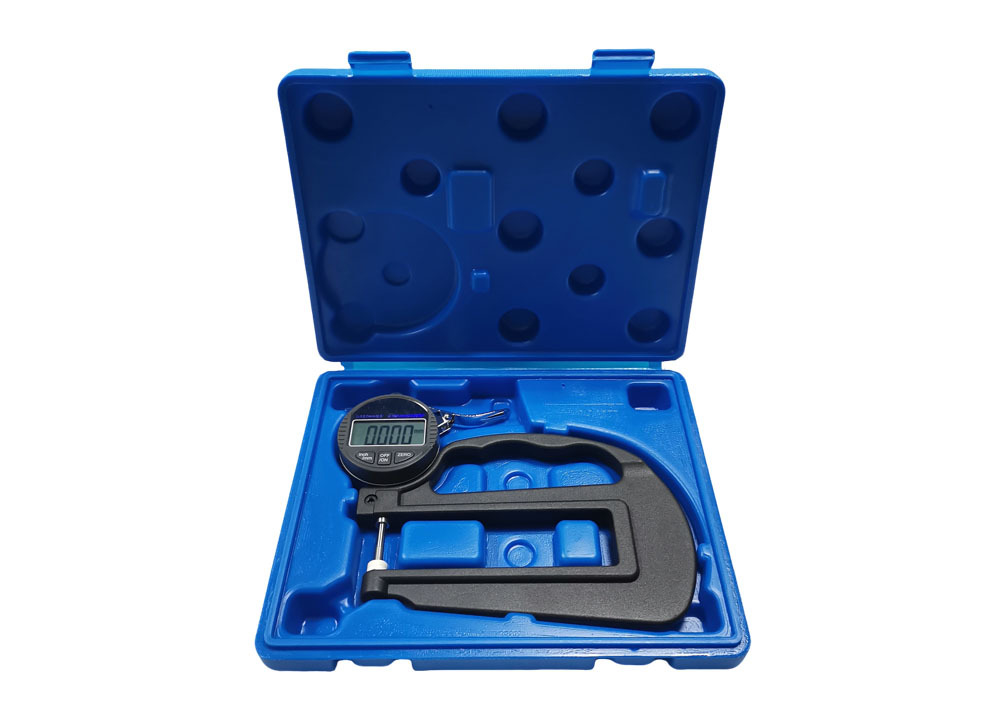

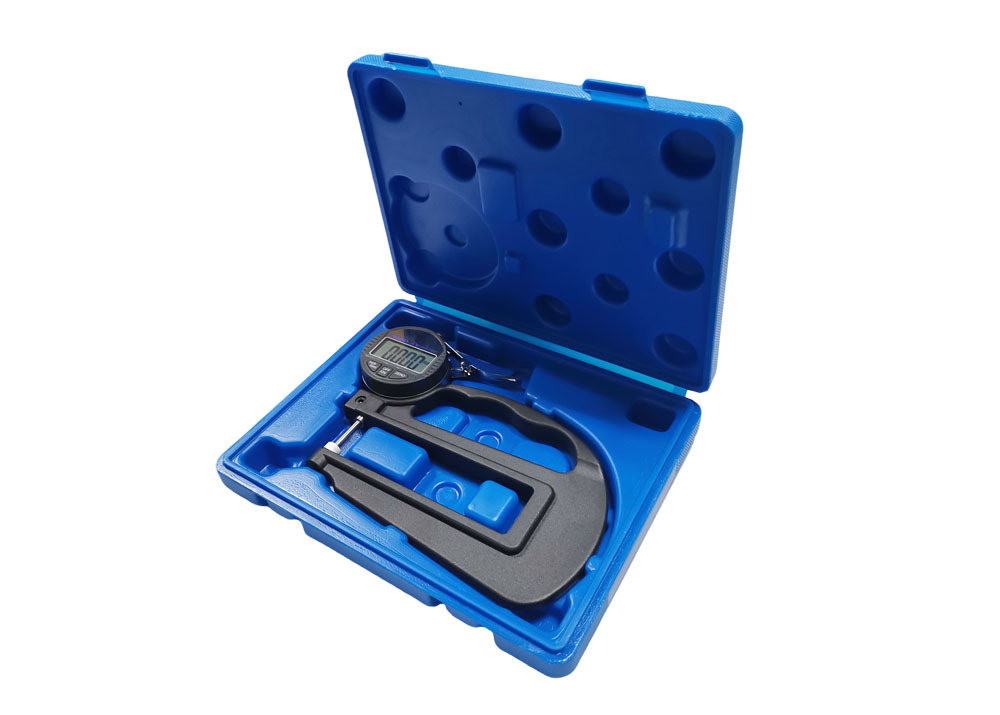

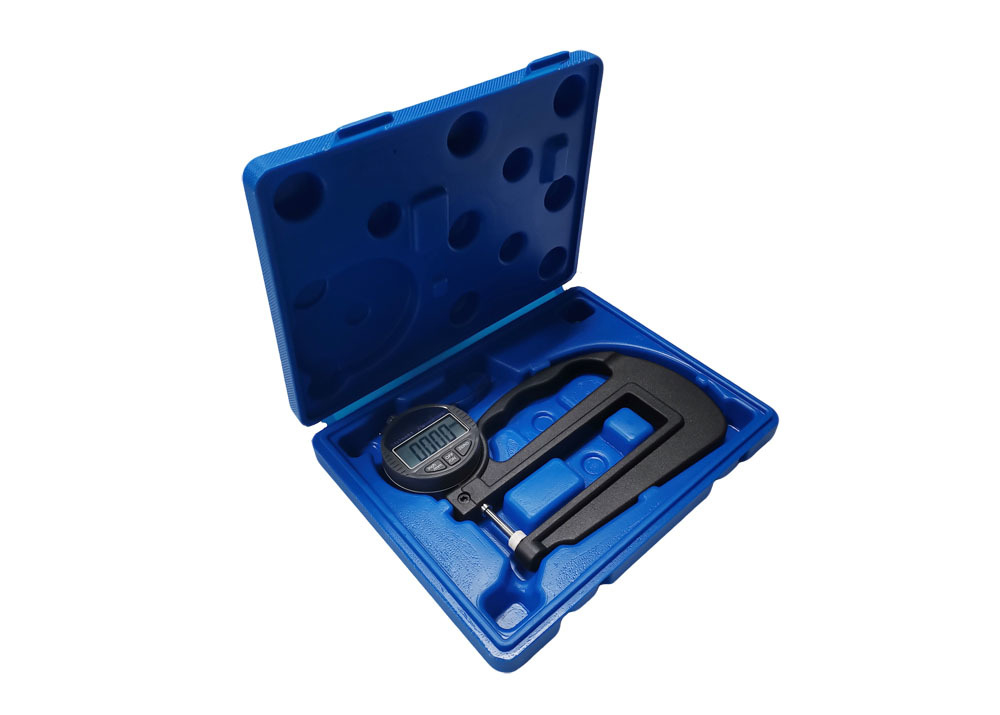

  • Supplied in fitted case.
Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-422-090 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 30mm
KM-422-091 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 60mm
KM-422-092 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 120mm
KM-422-093 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 200mm
KM-422-094 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 300mm
KM-422-095 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 400mm
KM-422-096 0-12.7mm/0-0.5″ 0.001mm/0.00005″ 500mm
KM-422-190 0-25.4mm/0-1″ 0.001mm/0.00005″ 30mm
KM-422-191 0-25.4mm/0-1″ 0.001mm/0.00005″ 60mm
KM-422-192 0-25.4mm/0-1″ 0.001mm/0.00005″ 120mm
KM-422-193 0-25.4mm/0-1″ 0.001mm/0.00005″ 200mm
KM-422-194 0-25.4mm/0-1″ 0.001mm/0.00005″ 300mm
KM-422-195 0-25.4mm/0-1″ 0.001mm/0.00005″ 400mm
KM-422-196 0-25.4mm/0-1″ 0.001mm/0.00005″ 500mm
KM-422-290 0-50mm/0-2″ 0.001mm/0.00005″ 30mm
KM-422-291 0-50mm/0-2″ 0.001mm/0.00005″ 60mm
KM-422-292 0-50mm/0-2″ 0.001mm/0.00005″ 120mm
KM-422-293 0-50mm/0-2″ 0.001mm/0.00005″ 200mm
KM-422-294 0-50mm/0-2″ 0.001mm/0.00005″ 300mm
KM-422-295 0-50mm/0-2″ 0.001mm/0.00005″ 400mm
KM-422-296 0-50mm/0-2″ 0.001mm/0.00005″ 500mm
Applications
  • Iron and steel industry: Measuring thickness of metal sheets for ships, bridges, and oil tanks.
  • Chemical industry: Measuring wall thickness of containers and pipelines.
  • Manufacturing: Measuring thickness of plastic, paper, leather, rubber, fabric, and glass.
  • Aerospace: Measuring thickness of aircraft and engine components.
  • Automotive industry: Measuring thickness of body panels and brake discs.
Precautions
  • Handle this precision instrument carefully to prevent impacts that may affect accuracy.
  • Keep the gauge clean and protected from liquids.
  • Do not remove output port cover when not in use or touch terminals with metal devices.
  • Avoid applying voltage or engraving on the gauge.
  • Remove batteries during long periods of non-use.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM is available.
