Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth

Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth

Products - Thickness Gauges - Digital Thickness Gauges
  • Highlight

    800mm Digital Thickness Tester

    ,

    Electronic Dial Thickness Gauge 25.4mm

  • Warranty
    One Year
  • Measurement
    Metric/Inch
  • Material
    Stainless Steel
  • Measuring Face
    Spherical
  • Range
    0-25.4mm/0-1″
  • Resolution
    0.01mm/0.0005″
  • Throat Depth
    800mm
  • Application
    Measure The Thickness Of Paper, Leather, Rubber
  • Feature
    With Convenient Grip Handle
  • Measuring Faces
    Flat Or Ball Probe
  • Package

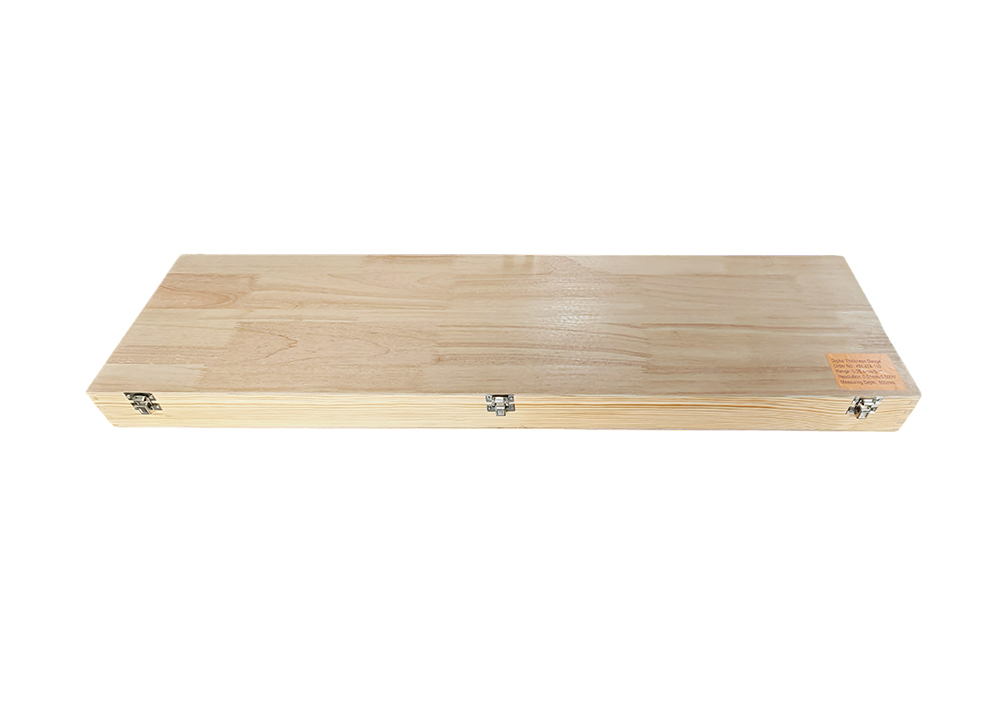

    Wooden Case
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-424-110
  • Packaging Details
    Wooden Case 82*31*5cm/Piece 3.80kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth

  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
Get Price Contact Now
Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
This digital thickness gauge is a precision measuring tool designed for accurate thickness measurement of various materials including paper, plastic, rubber, and metal. Featuring a clear digital display, it eliminates manual reading errors and supports easy conversion between metric and imperial units.
Key Features
  • Large LCD display for easy reading
  • Zero-setting capability at any position
  • Inch/Metric unit conversion
  • Convenient power ON/OFF function
  • Ergonomic grip handle for quick measurements
  • Lifting lever for dial indicator
  • Multiple measuring face options for diverse applications
  • Choice of steel or ceramic measuring faces
  • Customizable measuring depth available
  • Includes protective fitted case
Technical Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-424-001 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 30mm
KM-424-002 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 60mm
KM-424-003 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 120mm
KM-424-004 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 200mm
KM-424-005 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 300mm
KM-424-006 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 400mm
KM-424-007 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 500mm
KM-424-101 0-25.4mm/0-1″ 0.01mm/0.0005″ 30mm
KM-424-102 0-25.4mm/0-1″ 0.01mm/0.0005″ 60mm
KM-424-103 0-25.4mm/0-1″ 0.01mm/0.0005″ 120mm
KM-424-104 0-25.4mm/0-1″ 0.01mm/0.0005″ 200mm
KM-424-105 0-25.4mm/0-1″ 0.01mm/0.0005″ 300mm
KM-424-106 0-25.4mm/0-1″ 0.01mm/0.0005″ 400mm
KM-424-107 0-25.4mm/0-1″ 0.01mm/0.0005″ 500mm
KM-424-201 0-50mm/0-2″ 0.01mm/0.0005″ 30mm
KM-424-202 0-50mm/0-2″ 0.01mm/0.0005″ 60mm
KM-424-203 0-50mm/0-2″ 0.01mm/0.0005″ 120mm
KM-424-204 0-50mm/0-2″ 0.01mm/0.0005″ 200mm
KM-424-205 0-50mm/0-2″ 0.01mm/0.0005″ 300mm
KM-424-206 0-50mm/0-2″ 0.01mm/0.0005″ 400mm
KM-424-207 0-50mm/0-2″ 0.01mm/0.0005″ 500mm
Industry Applications
  • Iron and steel industry: Measuring thickness of metal sheets for ships, bridges, and oil tanks
  • Chemical industry: Measuring wall thickness of containers and pipelines
  • Manufacturing: Measuring plastic products, paper, leather, rubber, fabric, and glass
  • Aerospace: Measuring thickness of aircraft and engine components
  • Automotive industry: Measuring thickness of body panels and brake discs
Usage Precautions
  • Handle with care to prevent impacts or drops that may affect accuracy
  • Keep the gauge clean and protected from liquids
  • Do not remove output port cover when not in use
  • Avoid contact with metal devices on output terminals
  • Never apply voltage to any part of the thickness gauge
  • Remove batteries during long-term storage
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
